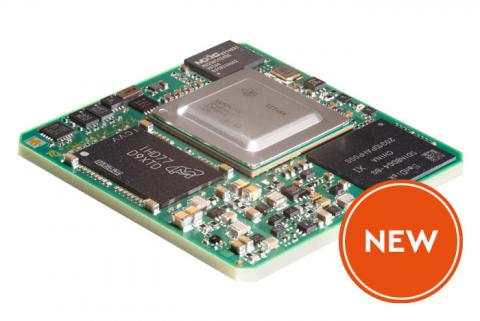

TQMa243xL Embedded Cortex®- R5F module

Based on TI AM243x for headless Applications with Real–time demand

The TQMa243xL Embedded Module, based on Texas Instruments' AM243x processor family, offers a versatile solution tailored for headless applications with real-time demands. This LGA module is designed to accommodate pin-compatible processors within a single module, providing flexibility for various applications.



Key features of the TQMa243xL include the powerful Cortex®-R5F architecture with up to 800MHz processing speed and integrated Cortex M4, making it well-suited for real-time applications. It boasts an impressive array of communication interfaces, including up to 4x Real-time GBit Ethernet interfaces with TSN support, up to 2x CAN-FD, and USB 2.0 connectivity.



Memory options include up to 256 MB NOR Flash, up to 64 GB eMMC, up to 2 GB SDRAM, and an EEPROM, ensuring ample storage resources. The module also offers a range of additional interfaces, such as UART, I2C, SPI, ADC, and PCIe.



With low typical power consumption of 1-2W and integrated security functions, the TQMa243xL prioritizes efficiency and data protection. It operates within standard and extended temperature ranges and is backed by a trusted partnership with Texas Instruments.



In a compact 38 x 38 mm form factor with an LGA 240-pin plug-in system, this module is well-suited for demanding industrial applications with real-time requirements. The TQMa243xL aims to provide embedded computing engineers with a reliable solution for headless applications with real-time demands.

Features

  • Powerful Processing: Utilizes Cortex®-R5F architecture with processing speeds of up to 800MHz, supported by integrated Cortex M4, ideal for real-time computing tasks.
  • Extensive Communication: Offers up to 4x Real-time GBit Ethernet interfaces with TSN support, up to 2x CAN-FD, and USB 2.0 connectivity, ensuring seamless data exchange in embedded systems.
  • Versatile Memory: Provides options for up to 256 MB NOR Flash, up to 64 GB eMMC, up to 2 GB SDRAM, and an EEPROM, catering to various storage and data retention needs.
  • Robust Interface Selection: Features a wide range of interfaces, including UART, I2C, SPI, ADC, and PCIe, enhancing adaptability for diverse embedded applications.
  • Compact and Efficient Design: Operates with low typical power consumption (1-2W), is compatible with standard and extended temperature ranges, and boasts a compact 38 x 38 mm form factor with an LGA 240-pin plug-in system for easy integration into industrial environments

Specifications

CPU
  • Cortex®-R5F - Up to 800MHz
    • AM2434 2x Dual R5F
    • AM2432 Dual R5F
    • AM2431 Single R5F
Memory
  • NOR Flash: Up to 256 MB
  • SDRAM: Up to 2 GB
  • EEPROM: 0/64-kbit
  • eMMC: Up to 64 GB
Communications Interfaces
  • Ethernet:
    • Up to 2x Gbit-Ethernet
    • Up to 4x Real- time Gbit Ethernet (PRU)
  • Serial Ports: Up to 9x UART
  • CAN: Up to 2x CAN FD
  • USB:
    • Up to 1x USB 2.0 interface
    • Up to 1x USB 3.0 (shared with PCIe)
Other Interfaces
  • SD Card: Up to 1x SDIO/MMC
  • I2C: Up to 6x I2C
  • SPI:
    • Up to 7x MCSPI
    • Up to 1x OSPI or QSPI
  • ADC: Up to 1x ADC
  • PCIe: Up to 1x PCIe (shared with USB 3.0)
General
  • Power supply: 5 V
  • Plug-in System: LGA (Land Grid Array) 240 pins (TBD)
  • Dimensions: 38 x 38 mm
  • Temperature range:
    • Standard temperature range: -25°C…+85°C
    • Extended temperature: -40°C…+85°C
OS
  • Real-time Operating System (TBD)

Ordering Information

TQMa2434L-AA
  • TQMa2434L-AA, 2x Dual Cortex®-R5F/800 MHz, Cortex®-M4/400 MHz, 64 MB NOR Flash, 1 GB SDRAM, 64 kB EEPROM, RTC, -40°C...+85°C
TQMa2432L-AA
  • TQMa2432L-AA Dual CortexR-R5F/800 MHz, CortexR-M4/400 MHz, 64 MB NOR Flash, 1 GB SDRAM, 64 kB EEPROM, RTC, -40°C...+85°C
TQMa2431L-AA
  • TQMa2431L-AA Single CortexR-R5F/800 MHz, CortexR-M4/400 MHz, 64 MB NOR Flash, 1 GB SDRAM, 64 kB EEPROM, RTC, -40°C...+85°C
STKa243xL-AA
  • STKa243xL (Eval Kit) with TQMa243xL-AA, 2x Dual Cortex®-R5F/800 MHz, Cortex®-M4/400 MHz, 64 MB NOR Flash, 1 GB SDRAM, 64 kB EEPROM, RTC, 1x USB 2.0 OTG, 2x ETH 10/100/1000 (PRU), 1x ETH 10/100/1000, 2x CAN FD, 1x Temperature sensor, GPIOs (4x 24V_IN, 4x 24V_OUT, 4x AI_IN), Reset-Button, SD Card interface, Power Supply, 4 GB SD card, Cables
