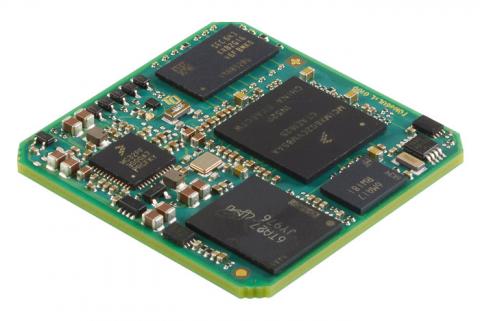

TQMa6ULxL Cortex-A7 LGieA module

Energy efficient and future oriented Cortex®-A7 LGA module based on i.MX6UL and i.MX6ULL

The TQMa6ULxL is an energy-efficient Cortex®-A7 LGA module based on i.MX6UL and i.MX6ULL, featuring long-term availability and security functions. It includes a camera sensor interface and exhibits low power consumption (typ. 1 W). Moreover, it offers 2x Ethernet with IEE1588 support and an extended temperature range, making it a versatile choice for industrial automation and controls.

Features

  • Long-term availability for reliable embedded solutions.
  • Enhanced security functions for data protection.
  • Camera sensor interface for imaging applications.
  • Low power consumption, consuming only 1 W typically.
  • Dual Ethernet support with IEE1588 for network connectivity.

Specifications

  • CPU
  • CPU/Processor:
  • Single Cortex®-A7 - Up to 700MHz @ i.MX6UL
  • Single Cortex®-A7 - Up to 800MHz @ i.MX6ULL
  • CPU variant:
  • i.MX6UL1
  • i.MX6UL2
  • i.MX6UL3
  • i.MX6ULL0
  • i.MX6ULL1
  • i.MX6ULL2
Memory
  • DDR3L: Up to 1 GB
  • EEPROM: 0/64-kbit
  • eMMC: Up to 32 GB
  • Quad SPI NOR: Up to 256 MB
Graphics
  • LCD Interface (24-bit RGB)
Communications Interfaces
  • CAN: Up to 2x CAN 2.0 B
  • Ethernet: Up to 2x Ethernet 10/100 Mbit
  • USB: Up to 2x USB 2.0 high-speed OTG
  • Serial Ports: Up to 8x UART
Other Interfaces
  • MIPI: 1x 16-bit Camera Sensor Interface
  • I2C: Up to 4x I²C
  • I2S: Up to 3x I²S
  • SPI: Up to 4x SPI
  • SD Card: Up to 2x SDIO/MMC
General
  • Dimensions: 38 x 38 mm
  • Temperature sensor
  • Power supply: 3.3 V
  • Temperature range:
  • Standard temperature range: -25°C…+85°C
  • Extended temperature: -40°C…+85°C
  • Plug-in System: LGA (Land Grid Array) 226 Pins
OS
  • Linux
  • QNX
  • VxWorks on request



Ordering Information

TQMa6UL2L-AB
  • i.MX6UL2 (G2) / 528MHz, 8GB eMMC-Flash, 64MB Q-SPI NOR Flash, 256MB DDR3L-SDRAM, RTC, 64kB EEPROM, -40°C…+85°C

TQMa6UL2L-AA

  • i.MX6UL2 (G2) / 528 MHz, 8 GB eMMC Flash, 256 MB DDR3L, 64 kB EEPROM, RTC, -25°C…+85°C
TQMa6UL3L-AA
  • i.MX6UL3 (G3) / 528 MHz, 8 GB eMMC Flash, 256 MB DDR3L, 64 kB EEPROM, RTC, -25°C…+85°C
STKa6ULx-AA
  • STKa6ULX (Eval Kit) with TQMa6ULx-AA, Cortex A7/528 MHz, 256 MB DDR3L, 4 GB eMMC Flash, 64 kB EEPROM, RTC, 1x RS232, 1x RS485, 2x CAN 2.0 B separated, 3x USB 2.0 HOST, 1x USB 2.0 OTG, 2x ETH 10/100, LCD Port, LVDS, 1x Mini PCIe (only USB), RTC, Temperature sensor, Reset-Button, SD interface, Power supply, 4 GB SD card, Cables
Starter kit STKa6ULx set
  • The core of the STKa6ULx set is the TQMa6ULx module with a Cortex A7 CPU. The components contained in the starter kit constitute a modular system enabling you to develop your own product ideas. Development of graphic interfaces can be started immediately using the prepared combination of closed display unit and starter kit that are matched to each other. To develop your own hardware you can use the certified and qualified circuit components of the starter kit in your own designs.
