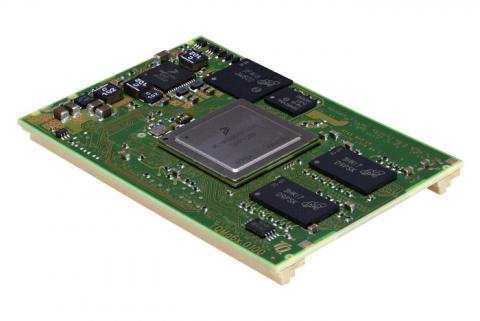

TQMa6x Embedded Cortex®-A9 module

Based on i.MX6 with scalable computing and graphics power.

The TQMa6x is an embedded Cortex®-A9 module based on i.MX6, offering scalable computing and graphics power for a wide range of applications. It comes equipped with security functions, IEEE 1588 support, and an extended temperature range. With low power consumption, it's an energy-efficient solution for embedded systems. The integrated graphic controller supports Full HD displays, making it ideal for HMI, animated displays, and multitouch applications.

Features

  • Security functions for data protection.
  • IEEE 1588 support for precise timing.
  • NOR and e-MMC flash storage options.
  • Extended temperature range for versatile usage.
  • Low power consumption for energy efficiency.

Specifications

CPU
  • Cortex®-A9 Technology
  • i.MX6 Solo/Dual Lite/Dual/Quad/Dual+/Quad+
  • CPU JTAG interface
Memory
  • eMMC: Up to 16 GB
  • DDR3L: Up to 2 GB
  • NOR Flash: Up to 128 MB
  • EEPROM: 0/64-kbit
Graphics
  • DVI (HDMI)
  • Parallel 2x 24-bit (RGB)
  • Dual LVDS
Communications Interfaces
  • USB:
  • 1x USB 2.0 high-speed HOST interface
  • 1x USB 2.0 high-speed OTG interface
  • CAN: 2x FlexCAN
  • Ethernet:
    • 1x Ethernet 10/100/1000 Mbit
    • 1x WEIM
  • Serial Ports:
    • Up to 5x UART
    • SPDIF
    • 1x ESAI
Other Interfaces
  • I2C: Up to 2x I2C
  • I2S: Up to 3x I²S
  • SPI: Up to 5x SPI
  • SD Card: Up to 3x SDIO/MMC
  • PCIe: Up to 1x PCIe
  • MIPI: 2x 16-bit Camera Sensor Interface
  • SATA: 1x SATA
General
  • Dimensions: 70 x 46 mm
  • Temperature sensor
  • Temperature range:
  • Standard temperature range: -25°C…+85°C
  • Extended temperature: -40°C…+85°C
  • Power supply: 5 V
  • Plug-in System: Board-to-Board plug-in system 360 pins
OS
  • Linux
  • QNX
  • VxWorks



Ordering Information

TQMa6S-AA
  • i.MX6S, Solo Cortex®-A9/800 MHz, 8 GB eMMC flash, 512 MB DDRL3, 64-kbit EEPROM, -25°C…+85°C

TQMa6U-AA

  • i.MX6U, Dual Lite Arm® Cortex®-A9/800 MHz, 8 GB eMMC Flash, 1 GB DDR3L, 64 kB EEPROM, -25°C...+85°C
TQMa6D-AA
  • i.MX6D, Dual Cortex®-A9/800 MHz, 8 GB eMMC flash, 1 GB DDRL3, 64-kbit EEPROM, -25°C…+85°C
TQMa6DP-AA
  • i.MX6DP, Dual Plus Cortex®-A9/800 MHz, 8GB eMMC Flash,1GB DDR3L, 64kB EEPROM, -25°C…+85°C
TQMa6QP-AA
  • i.MX6QP, Quad Plus Cortex®-A9/800 MHz, 8GB eMMC Flash,1GB DDR3L, 64kB EEPROM, -25°C…+85°C
TQMa6Q-AA
  • i.MX6Q, Quad Cortex®-A9/800 MHz, 8 GB eMMC flash, 1 GB DDRL3, 64-kbit EEPROM, -25°C…+85°C
STKa6D-AA
  • STKa6x (Eval Kit) with TQMa6D-AA, Dual Cortex®-A9/800 MHz, 1 GB DDR3, 8 GB eMMC Flash, 64-kbit EEPROM, 1x RS232, 1x RS485, 2x CAN 2.0 B separated, 3x USB 2.0 HOST, 1x USB 2.0 OTG, 1x ETH 10/100/1000, 1x ETH 10/100, 1x Mini PCIe, DVI (HDMI), 1x PCIe, 2x LVDS, Sound, RTC, Temperature sensor, Reset button, SD interface, Power Supply, 4 GB SD card, Cables
Starterkit STKa6D set
  • The core of the STKa6D Set is the TQMa6D module with a Dual Cortex®-A9 CPU from Freescale. The components contained in the starter kit constitute a modular system enabling you to develop your own product ideas. Development of graphic interfaces can be started immediately using the prepared combination of closed display unit and starter kit that are matched to each other. To develop your own hardware you can use the certified and qualified circuit components of the starter kit in your own designs.

TQ Embedded is known for:

  • Precision German engineering, now with a North America presence
    • Robust industrial products with support
  • Widest portfolio of embedded processing architectures: ARM, x86, PowerPC
  • Comprehensive in-house process and facilities for true long-life availability
  • Modules with full signal availability (ALL signals available, not just selective groups)
  • In-house full control: design, manufacturing, specialized adaptations
  • Robust baseboard options, production-ready for mounting their SOM products
