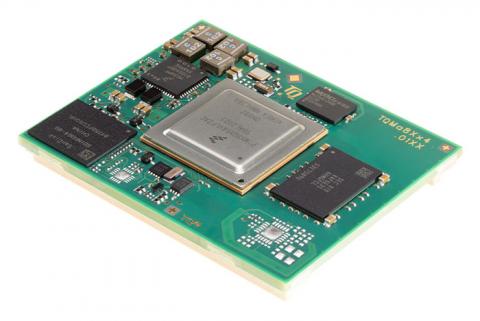

TQMa8Xx4 Embedded Cortex®-A35 module

Based on i.MX8X with high computing power combined with high-speed interfaces.

The TQMa8Xx4 Embedded Module is a high-performance solution for embedded computing engineers. Based on the ARM Cortex-A35 core technology, this module offers impressive computing power along with high-speed interfaces. It provides graphics support with 4K capabilities and features integrated security functions. With an included Cortex M4 CPU for real-time and security needs, low power consumption, and support for audio processing DSP, it's a versatile choice for various applications. Additionally, it offers multiple CAN FD interfaces and extensive connectivity options.

Features

  • High-performance ARM Cortex-A35 core
  • 4K graphics support
  • Integrated security functions
  • Cortex M4 CPU for real-time and security
  • Extensive connectivity, including multiple CAN FD interfaces

Specifications

CPU
  • CPU/Processor:
    • Cortex®-A53 - Up to 1,2GHz
  • CPU variant:
    • i.MX8X Dual
    • i.MX8X Dual Plus
    • i.MX8X Quad Plus
Memory
  • eMMC: Up to 64 GB
  • LPDDR4: Up to 4 GB
  • EEPROM: 0/64-kbit
  • Quad SPI NOR: Up to 256 MB
Graphics
  • Dual LVDS Interface
  • 2x MIPI DSI
  • 1x MIPI CSI
Communications Interfaces
  • Ethernet: Up to 2x Ethernet 10/100/1000 Mbit
  • USB:
    • Up to 1x USB 3.0 OTG interface
    • Up to 2x USB 2.0 high-speed OTG
  • CAN: Up to 3x CAN FD
  • Serial Ports:
    • Up to 4x UART
    • Up to 2x SPDIF
    • Up to 4x ESAI
Other Interfaces
  • SPI: Up to 4x SPI
  • GPIO: Up to 32x GPIO
  • I2C: Up to 8x I²C
  • SD Card: 1x SDIO/MMC
  • PCIe: Up to 1x PCIe
General
  • Dimensions: 55 x 44 mm
  • Temperature sensor
  • Power supply: 3.3 V
  • Temperature range:
    • Standard temperature range: -25°C…+85°C
    • Extended temperature: -40°C…+85°C
  • Plug-in System: Board-to-board plug-in system 280 pins
OS
  • Linux
  • PikeOS™
  • QNX on request
  • Android on request

Ordering Information

TQMa8XD4-AA
  • i.MX8X Dual/typ 1.0 GHz/max 1.2 GHz, 8 GB eMMC Flash, 1 GB LPDDR4, 64 kB EEPROM, -25°C…+85°C
TQMa8XDP4-AA
  • i.MX8X Dual Plus/typ 1.0 GHz/max 1.2 GHz, 8 GB eMMC Flash, 2 GB LPDDR4, 64 kB EEPROM, -25°C…+85°
TQMa8XQP4-AA
  • i.MX8X Quad Plus/typ 1.0 GHz/max 1.2 GHz, 8 GB eMMC Flash, 2 GB LPDDR4, 64 kB EEPROM, -25°C…+85°
STKa8Xx4-AA
  • STKa8Xx4 (Eval Kit) with TQMa8Xx4-AA, i.MX8X/typ 1.0 GHz/max 1.2 GHz, 2(1) GB LPDDR4, 8 GB eMMC Flash, 64 kB EEPROM, 1x RS232, 2x CAN FD separated, 1x USB 3.0 OTG, 4x USB 2.0 HOST, 2x ETH 10/100/1000, 1x HDMI/DP, 2x LVDS/DSI, 1x PCIe, RTC, Temperature sensor, Reset-Button, SD interface, Power Supply, 4 GB SD card, Cables
Starterkit STK8Xx4 set
  • The core of the STKa8Xx4 set is the TQMa8Xx4 module with a i.MX8X Cortex A35 CPU. The components contained in the starter kit constitute a modular system enabling you to develop your own product ideas. Development of graphic interfaces can be started immediately using a TQ display kit which is adjusted for a starter kit. To develop your own hardware you can use the certified and qualified circuit components of the starter kit in your own designs.

TQ Embedded is known for:

  • Precision German engineering, now with a North America presence
    • Robust industrial products with support
  • Widest portfolio of embedded processing architectures: ARM, x86, PowerPC
  • Comprehensive in-house process and facilities for true long-life availability
  • Modules with full signal availability (ALL signals available, not just selective groups)
  • In-house full control: design, manufacturing, specialized adaptations
  • Robust baseboard options, production-ready for mounting their SOM products
