CORNING A-25H0

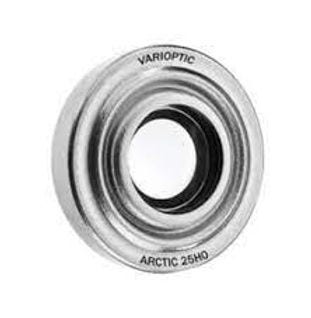

- Product Image
The Corning Varioptic A-25H variable focus lens fits the low footprint systems requiring fast response time and large focusing range. It provides a fast-track to market for product designers who need an easy to integrate, high-performance auto focus solution.
- Specifications
| Product Name | CORNING A-25H0 |
| Manufacturer | Corning |
| Clear Aperture | 1.6mm |
| Low Optical Power | -5 diopters (m-1) |
| High Optical Power | +15 diopters (m-1) |
| Wave Front Error | 25nm r(ms) |
| Transmission | 97% at 587nm for A-16F0 97% at 850nm for Arctic A-16F1 |
| Outer Diameter | 7.75mm |
| Total Thickness | 2.15mm |
| Operating Temperature | -30°C to 85°C |
| AR Coating | Visible |
