CORNING A-39N1

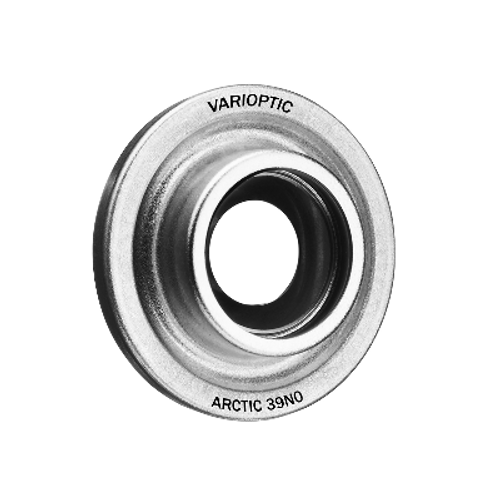

- Product Image
The Corning Varioptic A-39N variable focus lens is designed specifically for variable focus products needing a large clear aperture, long focal objective, large sensors, C-Mount objective lenses, laster beam shapin, etc. It is perfectly suited for applications such as industrial vision, medical imaging cameras, optical equipment and biometric devices.
- Specifications
| Product Name | CORNING A-39N1 |
| Manufacturer | Corning |
| Clear Aperture | 3.9mm (at 0° FoV) 3.5mm (at 50° FoV) |
| Low Optical Power | -5 diopters (m-1) |
| High Optical Power | +15 diopters (m-1) |
| Wave Front Error | 50nm (rms) |
| Transmission | 97% at 587nm or 850nm |
| Outer Diameter | 13mm |
| Total Thickness | 4.2mm |
| Operating Temperature | -20°C to 60°C |
| AR Coating | NIR |
