Corning C-C-39N0-A1-250

- Corning C-C39N0-A1-250

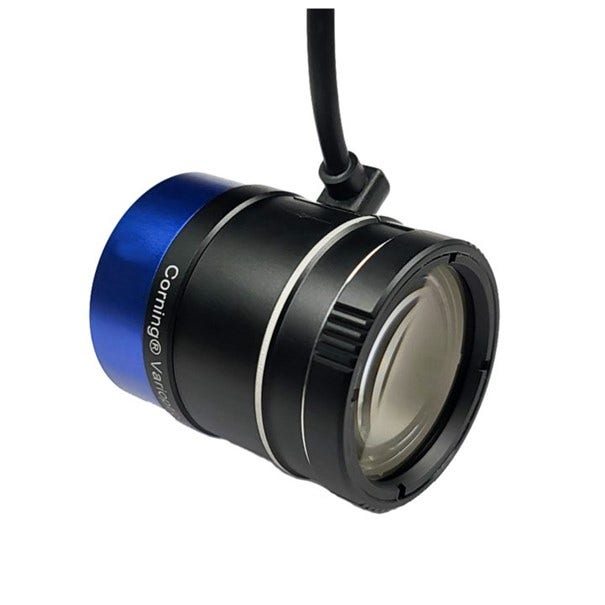

Corning Varioptic's C-C-39N0-A1-250 is a high-performance C-Mount objective optimized for large sensor machine vision applications. Featuring a 25 mm EFL and compatibility with 1.1-inch sensors, it offers precise focus control via RS232, I²C, or SPI inputs. Powered by a simple DC supply, this lens integrates all electronics for seamless operation. Based on the A-39N0 Variable Focus Lens, it is ideal for industrial automation, robotics, and medical imaging.
- Specifications
Product Name | CORNING C-C-39N0-A1-250 |
Manufacturer | Corning |
Sensor Size | 1.1" |
Focal Length | 25mm |
Mount | C-mount |
F-number | 5 to 20 |
Minimum Object Distance | 15cm |
Image Circle Diameter | 17.6mm |
