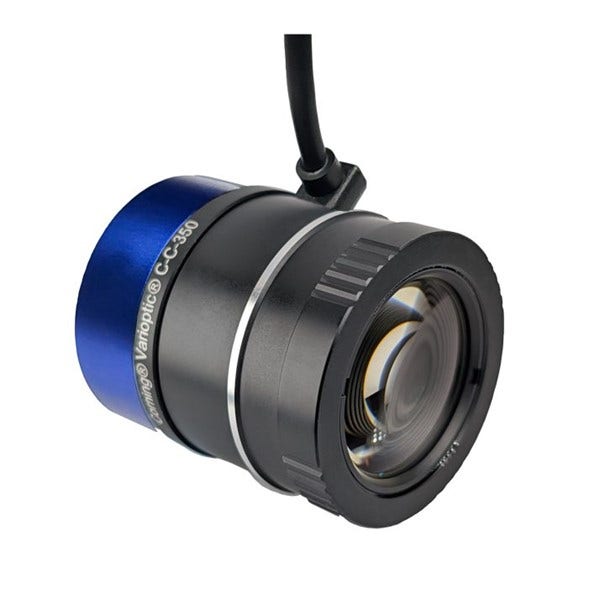

Corning C-C-39N0-A1-350
The Corning C-C-39N0-A1-350 is an electronically controlled focus C-Mount objective, built upon the A-39N0 Variable Focus Lens. This advanced lens system includes all required electronic components for operation, requiring only a DC power supply. Focus adjustments can be made easily through RS232, I²C, or SPI inputs. With a 35 mm Effective Focal Length (EFL), it is compatible with 1.1-inch sensors, making it ideal for high-performance machine vision applications involving large sensors.
- Specifications
| Product Name | CORNING C-C-39N0-A1-350 |
| Manufacturer | CORNING |
| Sensor Size | 1.1" |
| Focal Length | 35mm |
| Mount | C-mount |
| F-number | 5.5 to 22 |
| Minimum Object Distance | 20cm |
| Image Circle Diameter | 17.6mm |
