ADE9153A是一款具有自動校準功能的高精度單相電能計量IC。mSure®自動校準功能可使電表在使用電流感測器為電阻的情況下,在不使用精確源或精確參考電表的情況下自動校準電流和電壓通道。支援1級和2級電表。

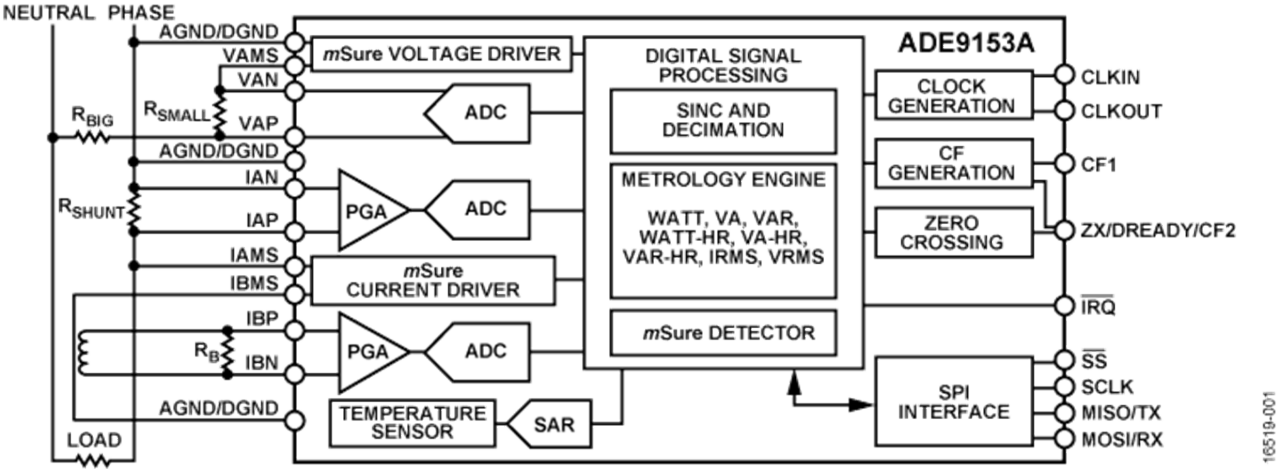

ADE9153A包含三個高性能模數轉換器(ADC),提供88 dB的信噪比(SNR)。ADE9153A提供了先進的測量功能,例如線路電壓和電流、有功能量、基本無功能量和視在能量計算以及電流和電壓rms計算。ADE9153A包括電能品質測量,如零交叉檢測、線路週期計算、角度測量、跌落和膨脹、峰值和過電流檢測以及功率因素測量。每個輸入通道都支持獨立和靈活的增益級別。電流通道A適用於電阻,具有靈活的增益級別,並提供從62.5 mV峰值到26.04 mV峰值的全量程輸入範圍。電流通道B具有1×、2×和4×的增益級別,適用於電流互感器(CT)。高速、10 MHz的串行外設介面(SPI)端口可訪問ADE9153A寄存器。
ADE9153A從3.3 V供電,並提供32引腳LFCSP封裝。
EV-ADE9153ASHIELDZ

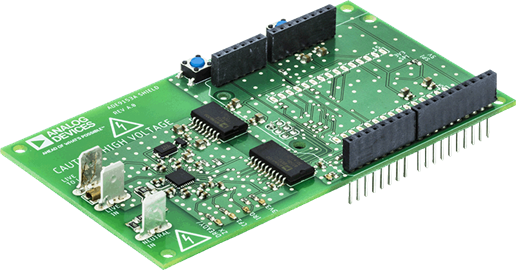

The EV-ADE9153ASHIELDZ is an Arduino shield compatible with Arduino Uno, Arduino Zero, or ESP8266. The shield has an on-board shunt resistor for line current measurement and enables quick evaluation and prototyping of energy measurement systems that use the ADE9153A. Arduino library and application examples are provided on the ADE9153A product page to simplify implementation of larger systems. Using mSure® autocalibration, the shield can be calibrated to measure energy with 1% accuracy over the dynamic range without the need for expensive calibration equipment.
