ADP1031 是一款高性能隔離式微功耗管理單元 (PMU),它將隔離式反激DC-DC穩壓器、反相DC-DC穩壓器和降壓DC-DC穩壓器結合在一起,提供三個隔離的電源軌。此外,ADP1031 包含四個高速序列周邊介面 (SPI) 隔離通道和三個通用隔離器,適用於需要低功耗和小解決方案尺寸的通道對通道隔離應用。
ADP1031 適合在 +4.5 V 至 +60 V 的輸入電壓範圍內運行,它可為 VOUT1 生成 +6 V 至 +28 V(可調版本)或 +21 V 和 +24 V(固定版本)的隔離輸出電壓,為 VOUT2 生成 +5.15 V、+5.0 V 或 +3.3 V 的工廠可編程電壓,並可為 VOUT3 生成 −24 V 至 −5 V 的可調輸出電壓。
預設情況下,ADP1031 反激穩壓器在 250 kHz 的開關頻率下運行,而降壓和反相穩壓器在 125 kHz 的頻率下運行。所有三個穩壓器相互相移以降低電磁干擾 (EMI)。 ADP1031 可以在 350 kHz 至 750 kHz 的頻率範圍內由外部振盪器驅動以便於在敏感應用中進行雜訊過濾。
ADP1031 中集成的數位隔離器使用 ADI 公司的 iCoupler® 晶片級變壓器技術,已針對低功耗和低輻射發射進行優化。
ADP1031 採用 9 mm × 7 mm 41 引腳 LFCSP 封裝,適合在 −40°C 至 +125°C 的溫度範圍內運行。
ADP1031CP-EVALZ

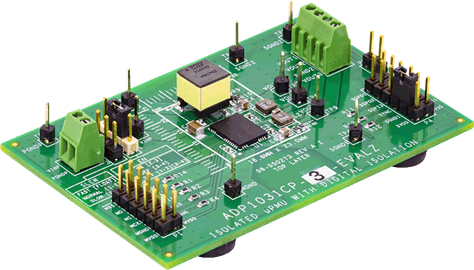

The ADP1031CP-EVALZ is a fully featured evaluation board that demonstrates the functionality of the ADP1031 dc-to-dc converters and the isolated data channels.
Users can evaluate ADP1031 device measurements, such as line regulation, load regulation, and efficiency with the evaluation board. The board also assists in evaluating the functionality of the isolated digital channels. Device features including oscillator synchronization, soft start, power good monitoring, sequencing, and slew rate control can be demonstrated on the evaluation board.
Each board model in the evaluation kit has a different output configuration. Only one board model is included in the kit butusers can order from five different board models to fit theirapplication needs.
Refer to the ADP1031 data sheet for more details about the dc-to-dc converters and isolated data channels.
DEMO-AD5758-AO8Z

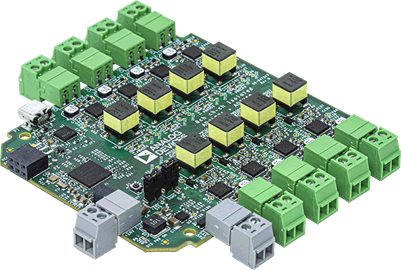

The DEMO-AD5758-AO8Z Board demonstrates a system-level concept where the AD5758 and the ADP1031 are used together to implement a compact, eight channel, channel-to-channel isolated, analog output (AO) module. The module is designed to dissipate less than 2 W worst case power dissipation over a wide range of operating conditions.
