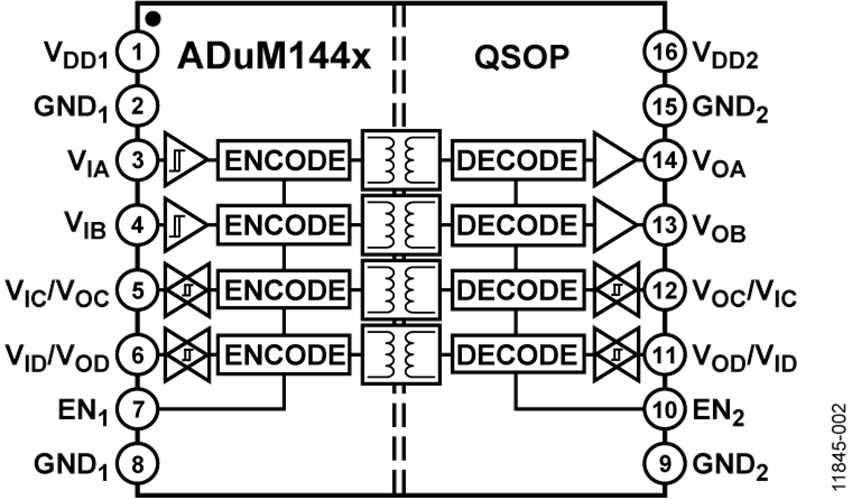

ADuM1440/ADuM1441/ADuM1442/ADuM1445/ADuM1446/ADuM1447是採用ADI公司iCoupler®技術的微功耗、4通道數位隔離器。 這些隔離器件將高速互補金屬氧化物半導體(CMOS)與單晶元空心變壓器技術融為一體,具有優於光耦合器等替代元件的出色性能特徵。 如數據手冊中的圖3所示,在標準工作模式下,當ENx = 0(啟用內部刷新)時,每通道電流低於10 μA。 當ENx = 1(禁用內部刷新)時,每通道電流降至1 μA以下。

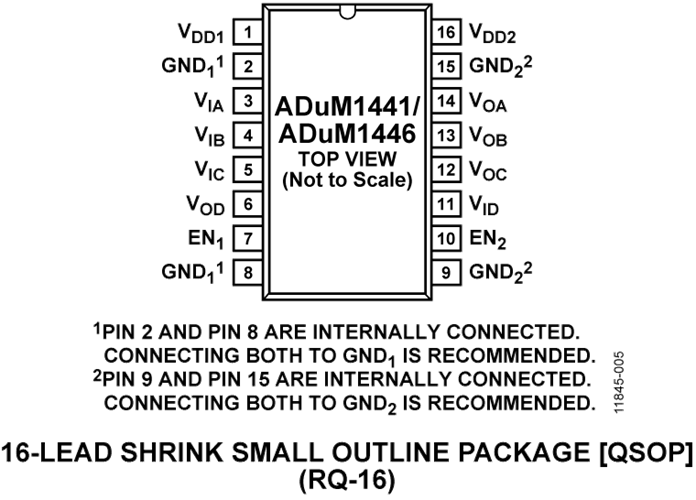

ADuM1440/ADuM1441/ADuM1442/ADuM1445/ADuM1446/ADuM1447系列四通道2.5 kV數位隔離元件採用16引腳小型QSOP封裝和20引腳SSOP封裝,與採用寬體SOIC封裝的隔離器相比,節省將近70%的電路板空間。
這些元件耐受高隔離電壓,滿足法定要求,如UL和CSA標準。 除了節省空間外,ADuM1440/ADuM1441/ADuM1442/ADuM1445/ADuM1446/ADuM1447還可採用低至2.25 V的電源供電。
除了低功耗,ADuM1440/ADuM1441/ADuM1442/ADuM1445/ADuM1446/ADuM1447的所有型號都具有很低的脈寬失真率(小於8 ns)。 此外,每款型號均提供輸入毛刺濾波器,以防外來雜訊干擾。
EVAL-ADUM144X
The EVAL-ADuM144x-EBZ supports the ADuM144x family of ultra low power, quad channel isolators. It provides a JEDEC standard QSOP16 pad layout, support for signal distribution, loop back, bypass capacitors and loads referenced to VDDX or GNDX. Signal sources can be wired onto the board as well as brought in through Edge mounted SMA connectors (not provided) or terminal blocks for power connections. The board includes 200 mil header positions for compatibility with Tektronix active probes.
The board follows best PCB design practices for four layer boards, including a full power and ground plane on each side of the isolation barrier. No other EMI or noise mitigation practices are included in this board.
