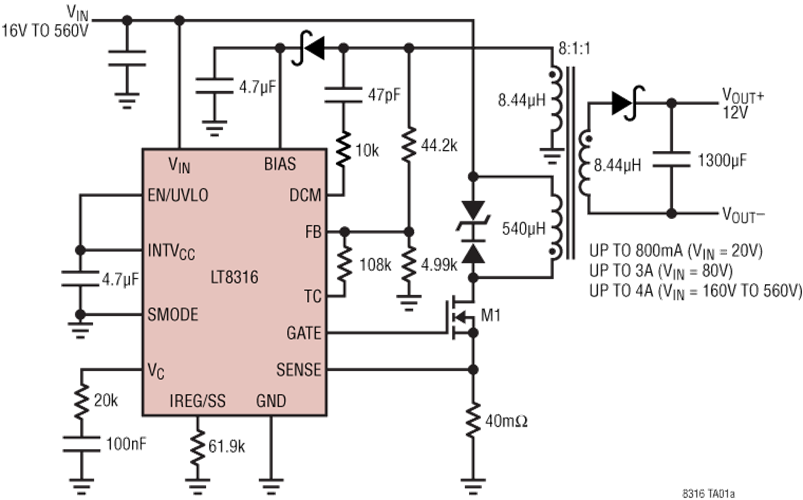

LT8316 是一款微功率、高電壓返馳式控制器。 調節無需使用光隔離器。該元件可從第三繞組變壓器上的隔離返馳波形對輸出電壓進行取樣。 準共振邊界模式可改善負載調節、縮小變壓器尺寸,並維持高效率。
在啟動時,LT8316 通過一個高電壓電流源為其 INTVCC 電容器充電。 在正常運行期間,該電源關閉,而元件則從變壓器上的第三繞組獲得其需電源,從而最大限度降低待機功耗。

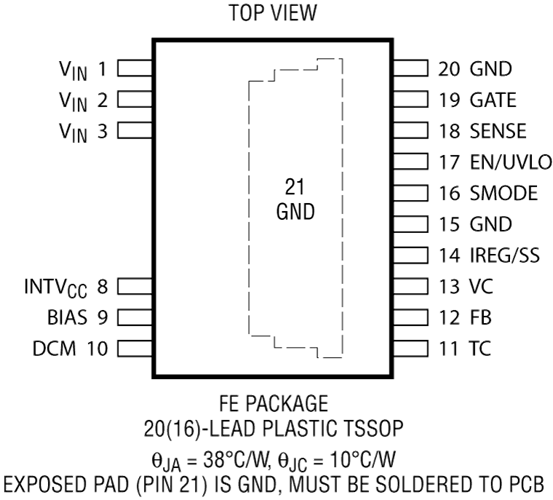

LT8316 可在寬廣的輸入電源電壓範圍內工作,並提供高達 100W 的功率。 該元件採耐熱性能增強型 20 引腳 TSSOP 封裝,去除四個引腳以實現高壓間隔。

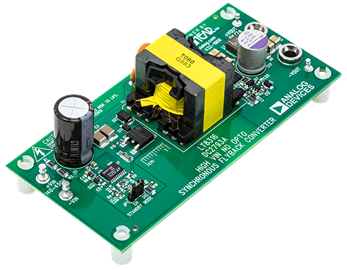

DC2793A
Demonstration circuit 2793A is a high VIN no-opto synchronous flyback converter featuring the LT8316. The demo board outputs 5V and maintains tight regulation with a load current from 70mA to 7A. It is optimized to operate over a wide 140V to 450V DC input voltage range. Output voltage accuracy stays within ±5% over the entire input voltage and load range.

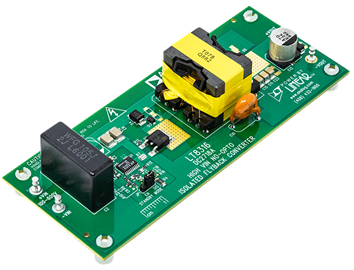

DC2718A
Demonstration circuit 2718A is a no-opto flyback converter featuring the LT8316. The demo board outputs 12V and maintains tight regulation with a load current from 30mA to 3A. It is optimized to operate over a wide 100V to 600V DC input voltage range. Output voltage accuracy stays within ±5% over the entire input voltage and load range.

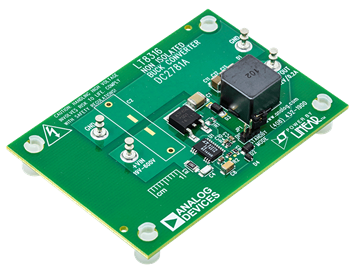

DC2781A
Demonstration circuit 2781A is a nonisolated buck converter featuring the LT8316. The demo board outputs 12V and maintains tight regulation with a load current from 10mA to 0.2A. It is optimized to operate over a wide 19V to 600V DC input voltage range. Output voltage accuracy stays within ±1% over the entire input voltage and load range.
