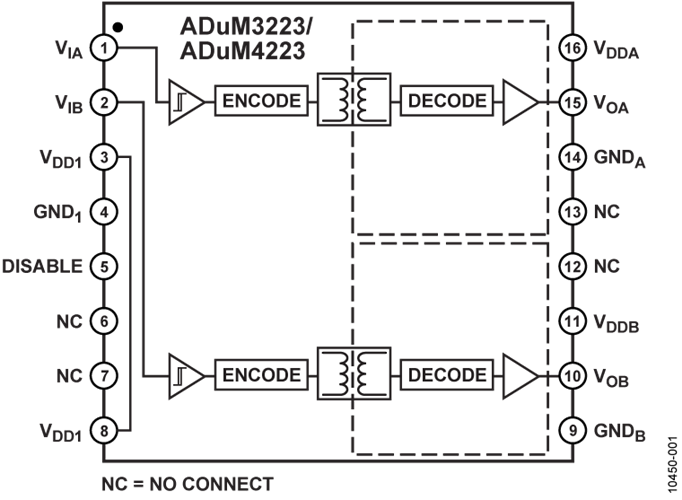

ADuM3223/ADuM4223是4 A隔離式半橋閘極驅動器,採用ADI公司的iCoupler®技術,提供獨立且隔離的高端和低端輸出。是專為改善設備效能及符合安全要求應用所設計,應用範圍包括切換電源供應器、太陽能變頻器,及馬達控制系統,ADuM3223/ADuM4223可讓產品設計者在非常寬廣的正或負切換電壓範圍內,可靠地控制IGBT/MOSFET配置的開關特性。
ADuM3223能夠提供3kV rms隔離,採用窄體16引腳SOIC封裝,ADuM4223則提供5kV rms強化隔離功能,採用寬體16引腳SOIC封裝。這些隔離器件將高速CMOS與單芯片變壓器技術融為一體,具有優於脈衝變壓器和閘極驅動器組合等替代器件的出色性能特徵。
ADuM3223/ADuM4223隔離器均提供兩個獨立的隔離通道。這些元件可在3.0 V至5.5 V電源電壓工作,並相容於低壓系統。與採用高壓電平轉換方法的柵極驅動器相比,ADuM3223/ADuM4223的輸入與各輸出之間具有真電流隔離優勢。相對於輸入,各路輸出的持續工作電壓最高可達537VPEAK,因而支持低端切換至負電壓。高端與低端之間的差分電壓最高可達800 VPEAK。

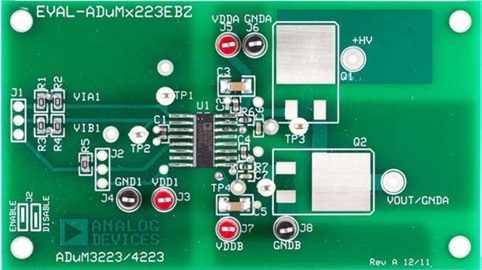

EVAL-ADuM3223-ADuM4223
Features & Benefits
ISOLATED INVERTER PLATFORM
The Isolated Inverter Platform is a rapid development system for hardware and/or software development in three-phase inverter applications, with a particular focus on motor control. Flexible evaluation of ADI isolation technology in a highly configurable system-oriented platform is enabled with multiple test-points, and connectivity options. An easy-plug connector allows controller connection to an ADSP-CM408 processor evaluation board, while additional 0.1” headers enable alternative connectivity to other processor or FPGA platforms. The benefits of ADI isolated sigma-delta converters for voltage and current measurement, isolated gate drivers, and power controllers can be explored in a full system application at dc bus levels up to 800V. There are 2 models available, isolated inverter platform, and isolated inverter platform with full featured IGBT drivers.
