Sony’s SLVS-EC Camera Interface (Scalable Low Voltage Signaling with Embedded Clock) has quickly established itself as the future of CMOS Sensor Interfacing replacing SLVS and subLVDS as the interface of choice for high-end designs. Many Sony sensors support SLVS-EC exclusively and even other sensor suppliers are starting to adopt this interface as standard. See the Sony SLVS-EC specifications below.


SLVS
SubLVDS
Effective Data
Rate
Baud Grade
594 Mbps
594 Mbps
1   1.152 to 1.25 Gbps
2   2.304 to 2.5 Gbps
3   4.608 to 5.0 Gbps
Line Coding
8b10b
None
None
Lane Configuration
8 Lanes
8 Lanes +
1 Clock
8 Lanes
 + 1 Clock
Clocking Method
Embedded Clock
DDR
Source-Synchronous
Clock
DDR
Source-Synchronous
Clock
Differential Signal Level
200mV
200mV (160mV min)
150mV (100mV min)
Common Signal Level
200mV
200mV
900mV
Line Termination (TX)
2 x 50 Ω Single-end
2 x 50 Ω
Single-end

None
Line Termination (RX)
100 Ω Differential
100 Ω Differential
100 Ω Differential
Skew Tuning
Do Not Care
Dat /Clock Skew Tuning
Dat /Clock Skew Tuning
Supply Voltage
1.2V
1.2V
1.8V
Data Format
Byte Packet
Pixel Packet
Pixel Packet
H/V Sync
SAV/EAV
SAV/EAV
SAV/EAV
mvc mvc

Don’t try and re-invent the wheel!

Macnica Mpression has cost-effective, hardware-verified, FPGA-IP for SLVS-EC supporting multiple FPGA suppliers (Altera preferred, Xilinx option available).

Don’t yoke yourself to an inferior IP partner!

Macnica was first to market with FPGA IP for SLVS-EC v1.2 and first to support SLVS-EC v2.0.   Hardware evaluation with Sony IMX420, IMX421, and IMX530 available (EasyMVCopens in a new tab).  Full details, pricing, documentation, simulation environment, and more under NDA.

EasyMVC

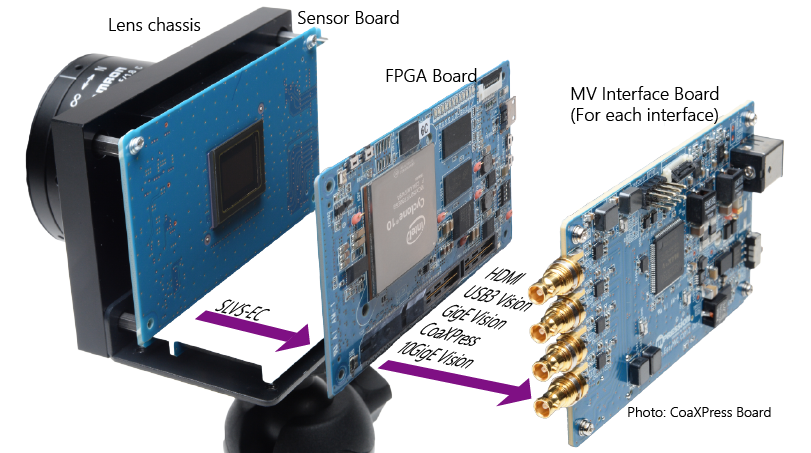

Machine Vision Camera Evaluation/Development Environment available with Sony Sensor Board
