Smarter Depth, Smarter Vision

Toppan products bring advanced 3D time-of-flight (ToF) sensing technology to robotics, automation, and next-generation devices. Leveraging decades of semiconductor expertise and its patented hybrid ToF™ architecture, Toppan delivers sensors and cameras that combine long-range accuracy, high resolution, and strong ambient light tolerance. Macnica Americas partners with Toppan to make these ToF solutions accessible to OEMs and developers across North America, providing local expertise, design services, and integration support.

Why Toppan 3D ToF senSPure™ Series?

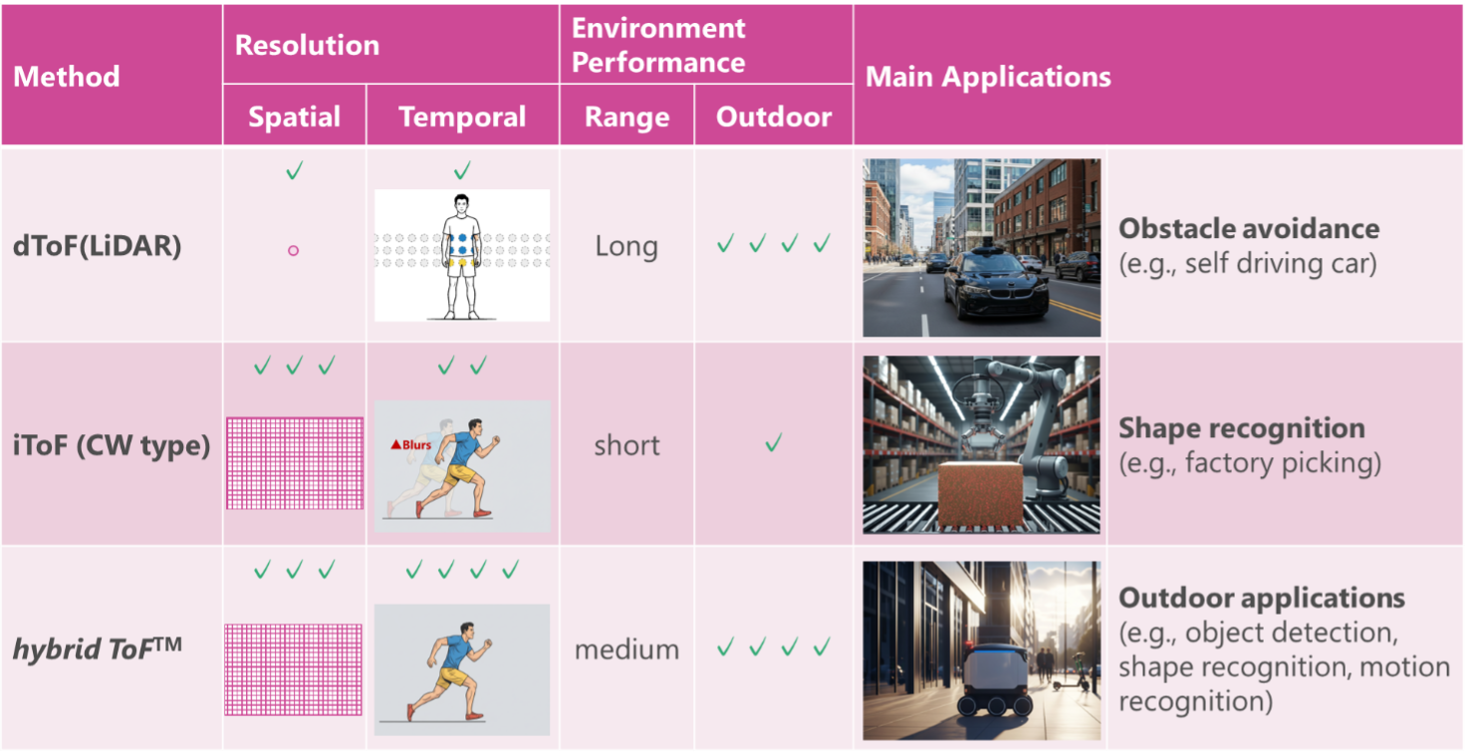

hybrid ToF™ Advantage

hybrid ToF combines the short-pulse type indirect ToF method with multi-time window sensor control technology, achieving strong ambient light tolerance, minimizing motion artifacts, and enabling accurate capture of fast-moving objects even in bright sunlight. Additionally, the industrial ToF 3D image sensor utilizing this technology supports high frame-rate sensing, high dynamic range (HDR) operation, and flexible working range settings to meet user requirements.

Key Features of the Toppan Industrial ToF 3D Image Sensor

Key Features of the Toppan Industrial ToF 3D Image Sensor

  • Strong ambient light tolerance (up to 100K lux, Under a sunlight environment)
  • Less motion artifacts and blurs
  • High-speed capture with frame rates up to 120 fps
  • User-friendly configuration enables adjustment of operating working range flexibly

Toppan 3D ToF camera senSPure™ C11U

senSPureTM C11U is a 3D ToF camera equipped with “hybrid ToF." It is ideal for using safe autonomous navigation of robots in environments such as indoor spaces near windows or stairs, as well as outdoor areas with high traffic of people and objects that are difficult for 2D LiDAR and conventional 3D cameras.



Key Features of the Toppan Industrial ToF 3D Image Sensor

  • Strong ambient light tolerance (up to 100K lux, usable under direct sunlight)
  • Less motion artifacts and blurs
  • High-speed capture with frame rates up to 120 fps
  • Excellent durability for harsh environments with IP67
  • User-friendly Software Development Kit, senSPure™ SDK

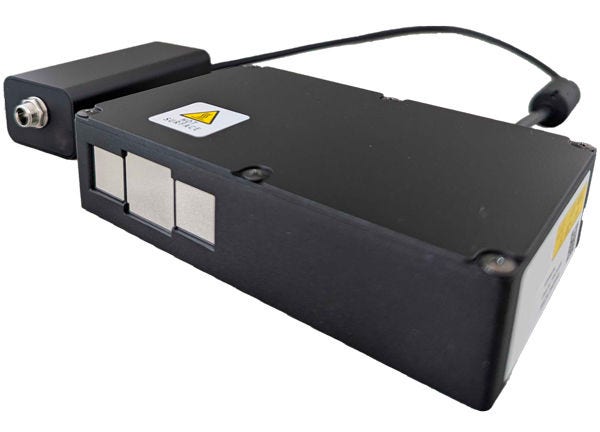

Toppan senSPure™ C11U Camera

Toppan Products Applications

Toppan 3D ToF Camera senSPureTM C11U unlocks opportunities across industries:

Robotics and Automation:

Automated Guided Vehicles

Autonomous Mobile Robots (AMRs) and AGVs

SLAM and mapping

SLAM and mapping

Pallet and object detection

Pallet and object detection

Drone navigation and obstacle avoidance

Drone navigation and obstacle avoidance

Toppan Product Portfolio

Toppan provides both cameras and sensors to fit a range of development needs.

Cameras

Model
C11U
Sensor
TPHT4030
Active pixel
VGA (640×480)
Working range
0.5-7.0 m
Mode
15fps, 30fps, 60fps; Max 120fps (High speed mode); HDR mode (15fps, 30fps, 60fps)
FOV
90°(H) × 67°(V)
Light source
2 x VCSEL (λ=940nm)
Interface
USB3.1 Gen1 (Port: Type C)
Availability
Launching Oct 2025

Sensors

Model
TPHT4040
Active pixel area
640(H) × 480(V); VGA; 160(H) × 120(V); 4x4 Binning
Optical format
1/4 Type
Shutter type
Global shutter
Frame rate
30fps (Typ.); Max. 120fps (3-tap, 4 lane); VGA
Pixel size
5.6µm × 5.6µm
Pixel structure
4 Tap
Output interface
MIPI D-PHY CSI-2; 2/4 data and 1 clock lanes
Status
Engineering Sample (MP 2025)

senSPure™ SDK

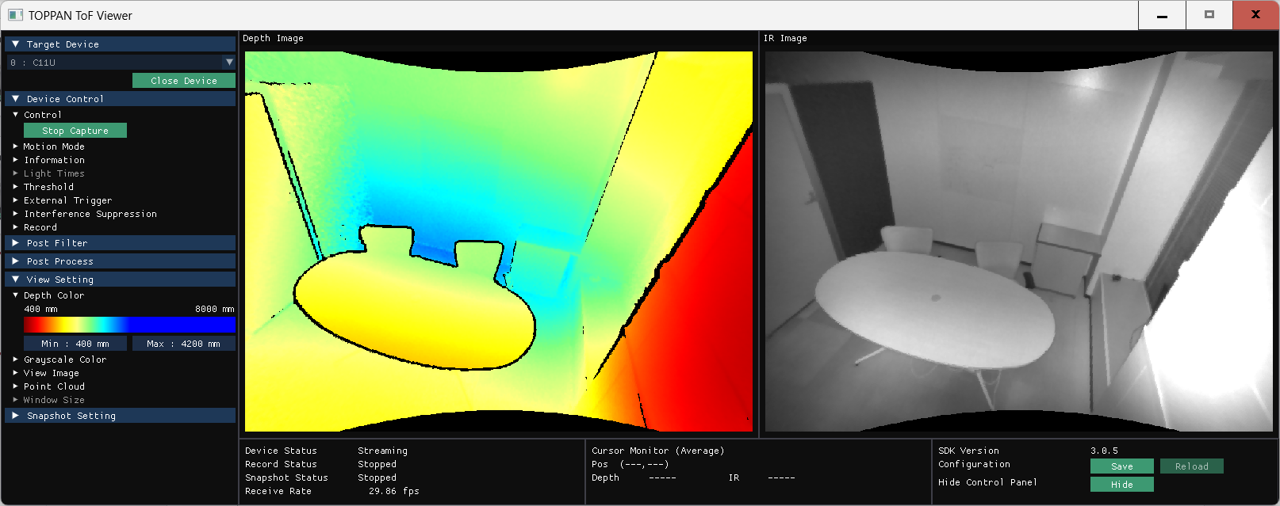

Toppan senSPure™ SDK Viewer

senSPure™ SDK is designed to simplify your development process and accelerate time-to-market. Here’s how our tools deliver real benefits for your projects:

  • Various development environment with Windows, Ubuntu, Jetson and ROS 2
  • The flexible pipeline framework enables easy integration into existing systems
  • Libraries Optimized for the senSPure™ Series

Why Macnica + Toppan?

Macnica + Toppan


By partnering with Toppan, Macnica Americas enables customers to rapidly adopt cutting-edge 3D vision:

  • Local engineering and integration support
  • Fast evaluation with demo kits and SDKs
  • Supply chain strength for scaling production
