Drones, robotics platforms and Physical AI systems increasingly depend on onboard vision to support navigation, inspection, tracking, obstacle avoidance, and autonomous decision-making. These functions must operate under strict power, thermal, and latency constraints while remaining reliable in production environments.
The iENSO CV75 platform, created in collaboration with Macnica, is designed to support these requirements through a consolidated embedded vision architecture built for Unmanned Aerial Vehicle (UAV), Unmanned Aerial Systems (UAS), robotics, Autonomous Mobile Robots (AMRs), and other edge AI perception systems.
UAV/UAS and robotics manufacturers often face a difficult trade-off between advanced computer vision capabilities and the rigid constraints of embedded hardware. Integrating artificial intelligence requires discrete accelerators or GPU-based compute that can increase payload weight, board complexity, power consumption, and generate significant heat.
These limitations can force developers to rely on cloud-based processing, which introduces unacceptable latency, bandwidth dependency, and raises privacy and data-sovereignty concerns. For autonomous systems, vision and AI workloads often need to run directly on the device, close to the image sensor. These constraints also apply to security, access control, machine vision, mobile vision, smart city, and consumer IoT systems that require real-time edge perception.

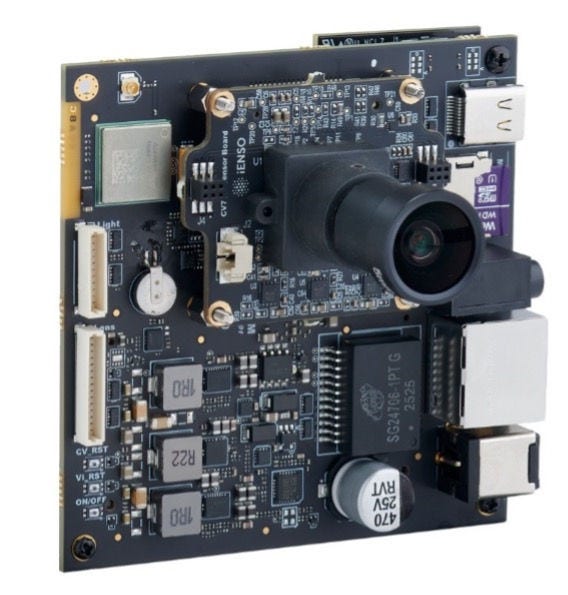

The CV75 SoM addresses the integration and performance challenges common in embedded vision systems. Powered by the Ambarella CV75 System-on-Chip (SoC), the module consolidates image signal processing, 4K video encoding, CPU processing, and dedicated AI acceleration into a single 5nm architecture optimized for edge AI vision workloads.
This unified design provides the performance required for aerial perception, robot navigation, object tracking, visual inspection, scene understanding, and situational awareness while maintaining the power and thermal efficiency required for compact autonomous systems.
The CV75 platform is selected when program priorities include:
Compliance requirements such as EAR, NDAA, and TAA are often identified late in development, after hardware decisions are difficult and costly to change.
The iENSP CV75 platform is designed to support compliance-aligned UAV/UAS systems through controlled component selection, vetted imaging components, and manufacturing processes suitable for regulated programs
Built on the Ambarella CV75 SoC and an embedded vision architecture designed for production deployment, the platform enables manufacturers to address regulatory considerations earlier in the design cycle without re-architecting the vision stack later in the program.
The CV75 platform is selected when program priorities include:
The CV75 platform is designed to support a structured and repeatable development path for autonomous vision systems, reducing integration risk and maintaining continuity from evaluation through deployment.
The platform enables this through:
The CV75 platform is designed for commercial and industrial systems that require onboard vision and edge AI before data transmission.
Typical applications include:
The architecture is suitable for both single-camera and multi-sensor configurations.
iENSO and Macnica provide customization services to adapt the CV75 platform to specific application and system requirements. These services support programs that require more than a reference design while maintaining a clear path to production.
Customization options include:
These services enable customers to deploy application-specific vision systems without rebuilding core platform infrastructure, reducing development risk and supporting scalable production.
Evaluation kits are available to assess image quality, video performance, edge AI behavior, latency, and power consumption under real operating conditions. Technical discussions can be scheduled to review system requirements and platform suitability.
| Specification | CV75S55m SoM | CV75S88 SoM |
|---|---|---|
| Ambarella SoC | CV75S55m | CV75S88 |
| CPU Architecture | Dual Arm Cortex-A76 + Arm Cortex-M3 | Dual Arm Cortex-A76 + Arm Cortex-M3 |
| AI Compute Performance | ~4 eTOPS | ~6 eTOPS |
| Vision Processor | CVflow AI Engine | |
| Supported AI Models | CNNs and transformer-based models | |
| Video Encoding | 4Kp30+ H.264 / H.265 | |
| Physical Image Sensor Inputs* | 1 | 2 |
| EVK Image Sensor | Sony IMX664, 4 MP, 1/1.8” | Sony IMX678, 8 MP, 1/1.8” |
| DRAM | 16 Gb LPDDR4x, 16-bit | 32 Gb LPDDR5, 32-bit |
| eMMC Support | No | Yes |
| Power Consumption (SoC only) | < 1.5 W | < 2.5 W |
| Wi-Fi/BLE Module | Azurewave AW-AM617 based on Infineon CYW43022 | |
| Main Board Size | 77 × 77 mm | 85 × 85 mm |
| Target Applications | Lightweight payloads, compact robotics, navigation, obstacle avoidance | Advanced perception, tracking, multi-sensor systems, robotics, AMRs, and edge AI vision |
*Both SoM variants can support additional sensor configurations depending on system design.
An integrated vision SoC reduces system complexity by combining image signal processing, video encoding, CPU processing, and AI acceleration in a single device. This approach lowers power consumption, simplifies board design, and reduces integration effort compared to architectures that rely on separate accelerators and host processors.
For drones, robotics, and AMRs, this typically results in more predictable latency, lower thermal load, and improved reliability in constrained operating environments.
Compared with GPU-based platforms, CV75 typically offers lower power consumption, smaller form factor, and a vision-optimized architecture that integrates ISP and video encoding directly on the chip. This makes it suitable for autonomous systems where power, size, weight, and thermal constraints are critical.
Yes. The CV75 platform supports on-device execution of CNN and transformer-based models. Detection, classification, tracking, and scene understanding can be performed locally on the device without relying on cloud-based inference. This reduces latency and bandwidth requirements and supports operation in disconnected or limited-connectivity environments.
The integrated video pipeline supports 4K processing, multi-stream encoding, HDR, electronic image stabilization, and de-warping. These features are handled within the SoC and do not require external video processing hardware. This is particularly relevant for stabilized imaging, mobile vision, robotics perception, and aerial payload applications.
EVPaaS is a unified development and deployment framework that integrates hardware, system software, AI tools, and lifecycle management into a production-oriented platform. It enables embedded vision systems built on CV75 to move from evaluation to production without re-architecting the system at each stage.
