Gauntlet Carrier for NVIDIA® Jetson Thor

Gauntlet Carrier for NVIDIA® Jetson Thor Gauntlet Carrier for NVIDIA® Jetson Thor

Overview

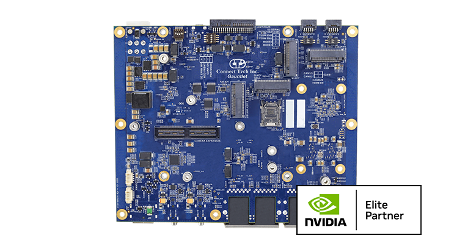

Gauntlet is Connect Tech’s full-featured carrier board for NVIDIA Jetson Thor. It brings high-speed networking, camera expansion, and rugged I/O into a compact, production-ready form factor, ideal for robotics, autonomy, and physical AI at the edge.

Why Choose Gauntlet?

  • Built for Jetson Thor series modules, ready for next-generation AI workloads
  • Two 10G Ethernet plus two 1G Ethernet for high bandwidth data flows
  • Camera expansion to MIPI CSI-2 through a 16-lane MIPI connector, works with Connect Tech vision boards for GMSL3, GMSL2, FPD-Link III, SDI, HDMI, and native MIPI
  • Wide input power and extended temperature for harsh deployments
  • Dual NVMe M.2 2280 storage, plus rich control I/O for sensors and actuators


Key Features

  • High bandwidth networking: Aggregate 10G plus 1G ports to move multi-camera and sensor data
  • Camera flexibility: Attach GMSL3, GMSL2, FPD-Link III, SDI, HDMI, and MIPI sensors through Connect Tech vision platforms
  • Rugged integration: Extended temperature range and wide input power for vehicles and outdoor systems
  • Fast storage: Two NVMe slots for high-rate logging and model updates
  • Control-rich: CAN, GPIO, PWM, serial, and I2C or SPI for peripherals and drives

Typical Applications

  • Mobile robots, humanoids, AMRs, and autonomous platforms
  • Multi-camera inspection, situational awareness, and sensor fusion
  • Edge analytics with high-speed networking and local NVMe logging

Compatible Vision Add-Ons

Gauntlet interfaces to Connect Tech camera platforms for GMSL3, GMSL2, FPD-Link III, SDI, HDMI, and native MIPI. This lets you mix long-run coax, SDI, or direct MIPI sensors on the same carrier.

Ordering Information

Part Number: AGX301 Gauntlet Carrier for NVIDIA Jetson Thor

Contact us for availability, pricing, and camera kit options.

Category
Interfaces
CompatibilityNVIDIA Jetson Thor series modules
Dimensions155 mm x 126 mm
Networking2 x 10GBASE-T, 2 x 1000BASE-T
Display1 x DisplayPort
Camera expansion1 x 16-lane MIPI expansion connector to external camera boards
USB1 x USB 3.2 Type-C, 1 x USB 3.2 Type-C with OTG
Storage2 x M.2 Key M 2280 NVMe, one x4 PCIe Gen3, one x2 PCIe Gen3
Control I/O2 x I2C, 2 x SPI, 2 x UART RS-232 or RS-422 or RS-485, 2 x UART at 3.3 V, 4 x GPI, 6 x GPO with 2 x PWM
CAN4 x CAN 2.0b non-isolated
User expansionM.2 Key E 2230 Wi-Fi or Bluetooth, M.2 Key B 3042 or 3052 for LTE or 5G with Nano SIM
Input power
Operating temperature (carrier)
Operating temperature (Carrier)
-40 °C to +85 °C
Category
Interfaces
Networking
2 x 10GBASE-T, 2 x 1000BASE-T
Display1 x DisplayPort
Camera expansion1 x 16-lane MIPI expansion connector to external camera boards
USB1 x USB 3.2 Type-C, 1 x USB 3.2 Type-C with OTG
Storage2 x M.2 Key M 2280 NVMe, one x4 PCIe Gen3, one x2 PCIe Gen3
Control and serial2 x I2C, 2 x SPI, 2 x UART RS-232 or RS-422 or RS-485, 2 x UART at 3.3 V, 4 x GPI, 6 x GPO with 2 x PWM
CAN4 x CAN 2.0b, non-isolated
Expansion1 x M.2 Key E 2230 Wi-Fi or Bluetooth, 1 x M.2 Key B 3042 or 3052 for LTE or 5G with Nano SIM
Power+30 V to +60 V DC input, 6-pin Mini-Fit Jr
Size and temperature
155 mm x 126 mm, -40 °C to +85 °C (carrier)
Title
Download
Spec Sheet - Gauntlet Carrier Board for NVIDIA® Jetson ThorDownload

Disclaimer

Specifications are subject to change by the manufacturer. Validate final requirements against the latest datasheet and design guides.
