NVIDIA® Jetson Orin NX and Orin Nano

Orin NX board Orin NX board

Overview

NVIDIA Jetson Orin NX and Orin Nano pack advanced AI into a compact 69.6 mm by 45 mm SODIMM footprint that drops into the same carrier designs. You can start with Orin Nano for cost and power efficiency, then step up to Orin NX for heavier models and higher throughput without changing your mechanical envelope.

Why These Modules

  • Shared SODIMM form factor for easy scaling across projects
  • Modern AI performance in a small footprint
  • Rich camera and I/O support through carrier boards
  • Flexible power profiles for battery or fanless designs
  • Mature ecosystem, tools, and documentation

Key Features

  • Form factor: 69.6 mm x 45 mm SODIMM for both series
  • Carrier compatibility: Orin NX and Orin Nano share the same carriers
  • Vision ready: Multi-camera MIPI CSI-2 support via carrier boards
  • I/O: PCIe Gen 3, USB 3.x, and NVMe support through carrier designs


Why These Modules?

Typical Applications

  • Mobile robots and AMRs
  • Embedded inspection and defect detection
  • Smart city endpoints
  • Safety analytics
  • Retail analytics
  • Portable vision systems

Carriers and Systems

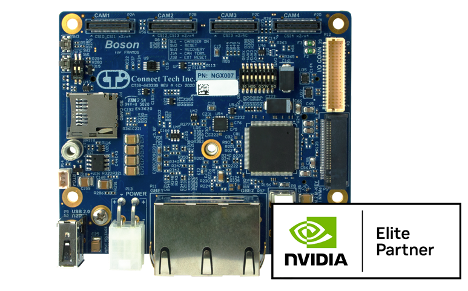

  • Carriers: Hadron-DM, Super Hadron-DM, Lepton (FPD-Link III), Boson-22, Boson for FRAMOS

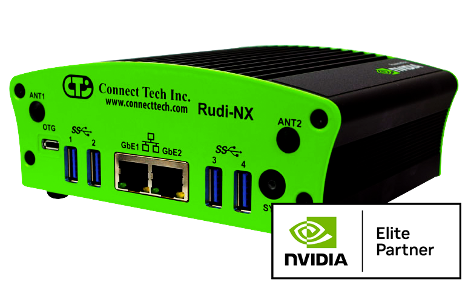

  • Systems: Polaris (rugged IP67), Rudi-NX

Ordering Information

  • Jetson Orin Nano: 4 GB or 8 GB
  • Jetson Orin NX: 8 GB or 16 GB

Contact us for availability, lead time, and recommended carrier boards.

Choose Your Module: Orin NX vs Orin Nano

Orin NX

Orin NX

Performance for advanced edge AI

  • Higher AI throughput for multi-camera perception and sensor fusion
  • 8-core CPU, 8 GB or 16 GB memory options
  • Best for AMRs, inspection systems, and on-device generative workloads
  • Pick Orin Nano when you need compact AI with tight power and cost targets and still want multi-camera support
Jetson Nano board

Orin Nano

Efficient AI for compact builds

  • Strong AI per watt for cost and power-sensitive designs
  • 6-core CPU, 4 GB or 8 GB memory options
  • Best for smart cameras, smaller robots, kiosks, and embedded vision
  • Pick Orin NX when your pipeline needs more parallel inference, higher frame rates, or heavier models

Typical Applications

Feature
Jetson Orin Nano series
Jetson Orin NX series
AI performance (approx.)
Up to ~40 TOPS class
Up to ~100 TOPS class
Typical power envelope
About 7 W to 25 W
About 10 W to 40 W
CPU
6-core Arm
8-core Arm
Memory options
4 GB or 8 GB LPDDR5
8 GB or 16 GB LPDDR5
Camera I/O
Multi-camera via carrier MIPI CSI-2
Multi-camera via carrier MIPI CSI-2
Form factor
69.6 mm x 45 mm SODIMM
69.6 mm x 45 mm SODIMM
Carrier compatibility
Shares carriers with Orin NX
Shares carriers with Orin Nano
Title
Download
Spec Sheet - Boson Carrier Board for NVIDIA® Orin NanoDownload
Spec Sheet - Hadron Carrier for NVIDIA® Jetson Orin™ NanoDownload
Spec Sheet - Hadron GMSL Carrier for NVIDIA® Jetson Orin™ NanoDownload
Spec Sheet - Hadron-DM Carrier for NVIDIA® Jetson Orin™ NanoDownload
Spec Sheet - Super Hadron-DM Carrier for NVIDIA® Jetson Orin™ NanoDownload
Spec Sheet - Essential EdgeAIDownload
