Network Synchronizer Module Renesas RC38612

Hitek Systems

The RC38612 network timing and clock synchronizer module is designed to pair with eSOM7 5G/Wireless development platform. Implements PTP/1588 and SYNCE based network synchronization and generates low phase noise transmit clock and JESD DevClk and SysRef reference signals required by most 5G ORAN and wireless/Satcom digitizer applications.

Features

  • The RC38612 is designed as an optional add-on card to the eSOM5G/Wireless carriers, providing network synchronization and de-jittered clocks for wireless applications including 5G/O-RAN

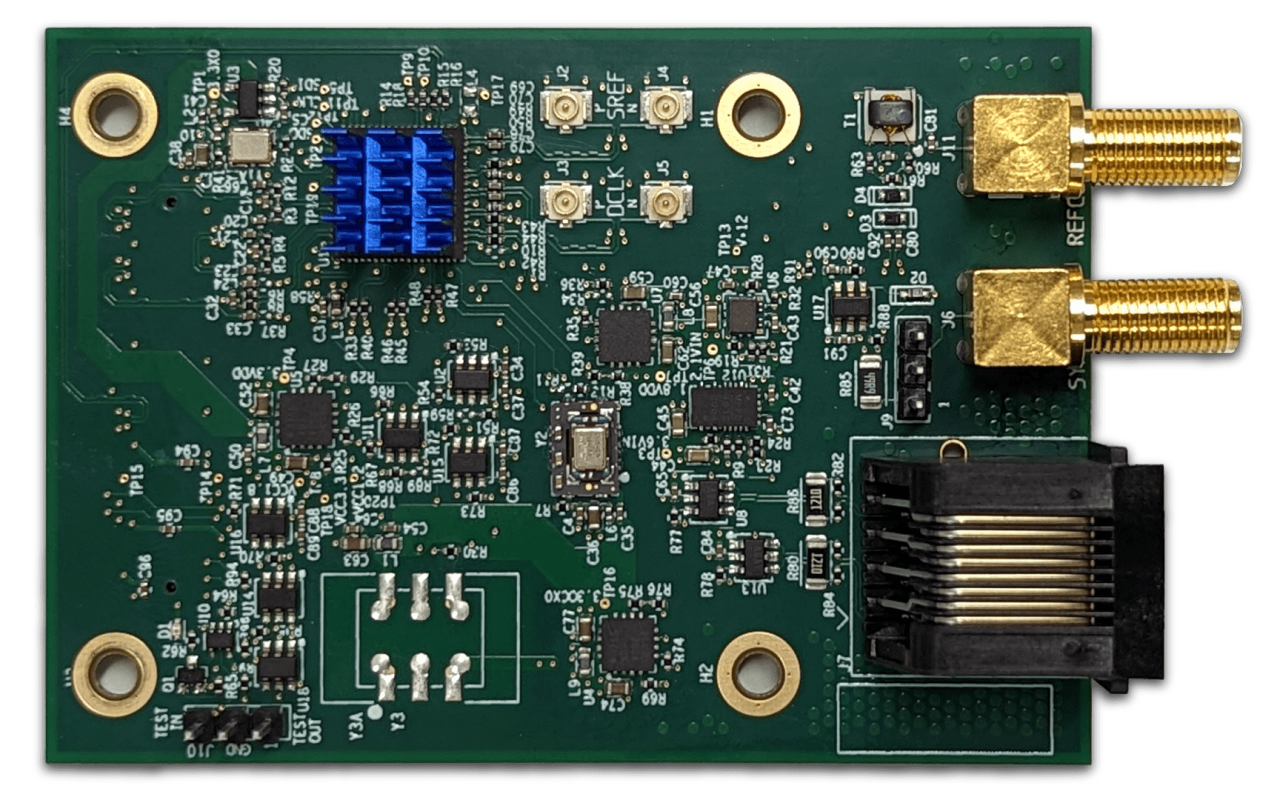

  • Small 2.2”x3.1” form factor module that plugs into the eSOM via 50-pin connector
  • Based upon RenesasRC38612 timing generator and synchronizer chip with high performance PTP/1588 support through RenesasPTP Clock Manager software respectively

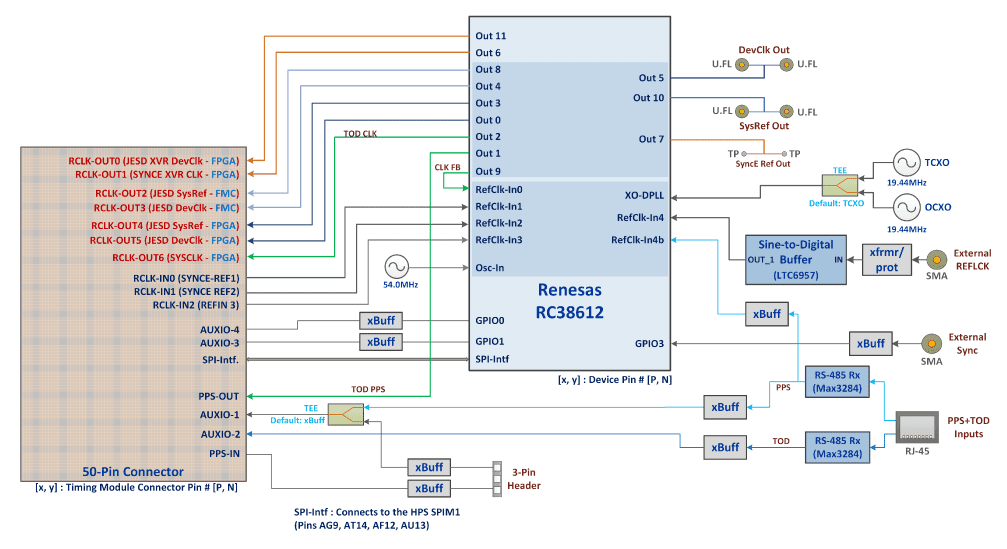

  • The Network Synchronizer Module is designed to support various operating modes:
    • Network synchronizer for recovered or reference clocks
    • Jitter attenuator for recovered clocks
  • Full support for JESD 204B/C DevClkand SysRef generation for RF transceivers
  • Provisioned with TCXO and OCXO for higher stability applications
  • Connectors for external TOD, PPS/IRIG and reference clock inputs
