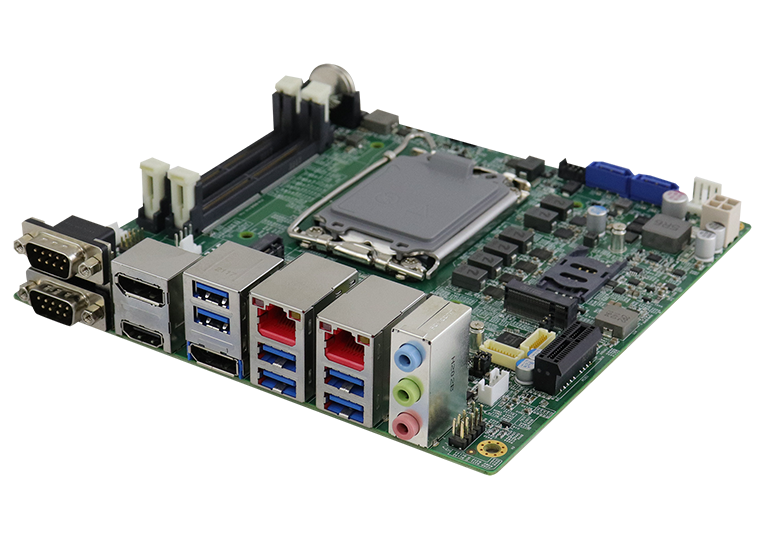

Unleash the Power of 12th Gen Intel® Core™ Processors with the MI997 Mini-ITX Motherboard

Engineered to harness the exceptional capabilities of the 12th Gen Intel® Core™ processors (codenamed Alder Lake PS), the MI997 Mini-ITX Motherboard redefines performance benchmarks. Leveraging a groundbreaking hybrid architecture that seamlessly blends high-performance and efficient cores, this motherboard propels past its predecessors in both single-core and multi-core workloads.

Key Advancements

  • DDR5 Memory Excellence: The MI997 boasts two DDR5 SO-DIMM sockets, each accommodating up to 64GB capacity. Embrace elevated bandwidth and optimized power efficiency, elevating your system's overall performance.
  • High-Performance Storage Integration: With multiple M.2 slots (B-key, E-key, 2x M-Key), the MI997 ushers in a new era of storage prowess. Accelerate boot and load times with high-performance storage devices while enjoying resilient wireless connections through WiFi and Bluetooth modules.
  • Immersive Graphics Interfaces: Elevate your visual experiences with a range of graphics interfaces including HDMI (2.0a), LVDS, and dual DisplayPort (1.4a) outputs. Delivering striking visuals, the MI997 sets the stage for captivating content delivery.
  • Robust Connectivity: Experience seamless networking with dual Intel 2.5G Ethernet controllers. Furthermore, revel in a myriad of I/O connectivity options featuring four USB 3.2, two USB 3.1, and two USB 2.0 ports.

Advanced Features

  • Intel Active Management Technology (iAMT 16.0): Seamlessly manage your system remotely with the MI997's integration of Intel Active Management Technology. Enjoy effortless remote management capabilities, streamlining your operations.
  • Enhanced Security: The MI997 powered by Intel 12th Gen Mini-ITX Motherboard features fTPM (firmware-based Trusted Platform Module), bolstering your system's security architecture and protecting your data.
  • Industrial-Ready Design: Adaptable to diverse industrial environments, the MI997 is compatible with power inputs ranging from 12V to 24V. This design accommodates the demands of varied operational settings.

Versatile Applications

The MI997 Mini-ITX Motherboard isn't just a motherboard; it's a cutting-edge IoT edge solution tailored for many applications. From dynamic digital signage to efficient POS/kiosk setups, and precision automation control, the MI997 seamlessly integrates into a diverse array of scenarios, ensuring unparalleled performance and reliability.

Elevate your computing experience with the unparalleled capabilities of the IBASE MI997 Mini-ITX Motherboard, embracing the future of performance and connectivity for a wide spectrum of industrial applications.

MI997 Specifications

CPU Socket
LGA1700
CPU
12th Gen Intel® Core™ i7/i5/i3 and Celeron® socket SoC Processors (formerly Alder Lake PS)
PCH
N/A
Memory
2x DDR5 SO-DIMM sockets, supports DDR5-4800 memory module, Max. 64GB
BIOS
AMI
Watchdog Timer
256 levels
H/W Monitor
Yes
Storage Device Interface
SATA III & NVMe
Expansion Slots
1x PCI-E (x1) [Gen.3.0]
Mini Type Slots
2x M.2 (M-key, type:2280, PCI-E(4x) Gen.4)
1x M.2 (E-Key, type:2230, USB 2.0 + PCI-E(1x))
1x M.2 (B-Key, type:3052, USB 3.2 + PCI-E(1x))
Graphics Controller
12th Gen Intel® Core™ i7/i5/i3 and Celeron® Processors
Video Output
1x HDMI (2.0a) + 2x DisplayPort (1.4a) (DP++) + LVDS
Ethernet
LAN 1: Intel® I226LM, supports 2.5G and iAMT
LAN 2: Intel® I226V, supports 2.5G only
I/O Chip
Fintek F81964D-I
Serial Port
4 COM ports : 2x RS232/422/485 + 2x RS232
USB 2.0
2x USB 2.0 via pin-headers
USB 3.X
6x USB 3.2 (10 bps) @ edge connector
Serial ATA
2x SATA III
Audio
Built-in HD Audio controller + Realtek ALC888S w/ 7.1 channels
TPM
Supports fTPM
Others
12V~24V DC-in, Digital I/O (4-in/4-out), Watchdog timer, SIM socket
Dimensions (L x W)
170 mm x 170 mm (6.7" x 6.7")
Power Consumption
Intel® Core™ i7-12700HL
w/ 2x 32GB DDR5-4800
+12V:13.21A
Operating Temperature
0°C~60°C ( 32°F~140°F)
Storage Temperature
-20°C~80°C (-4°F~176°F)
Relative Humidity
90% (non-condensing @60°C)

Ordering Information:

MI997AF
LGA1700 Mini-ITX Motherboard w/ HDMI, LVDS, 2x DisplayPort, Dual 2.5GbE, 2 x SATA, RAID, iAMT (16.0), TPM (2.0)
