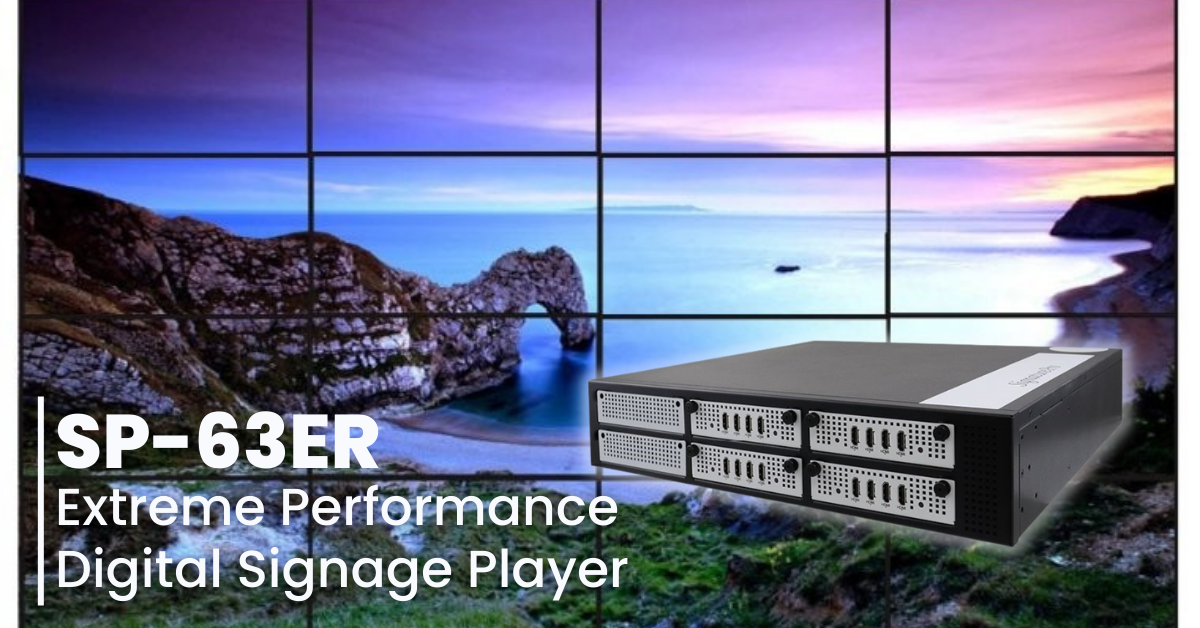

IBASE is known as a leader in multi-panel digital signage world. Armed with 8th generation Intel Core processors and HD graphics (GPU) and 16 ports of HDMI (v1.3), their robust and compact SP-63ER digital signage player hardware delivers larger than life video. Furthermore, expansion slots and the rich combination of blazing I/O including USB 3.x, Mini-PCIe, dual SATA and dual Gb Ethernet plays to a variety of applications. EDID emulation is standard. And iBase digital signage media player hardware offers their iSmart efficiency and Observer remote monitoring technologies to provide attractive cost and management options.
System Mainboard | MBD63E |
|---|---|
CPU | 8th Gen Intel® Core™ i7/i5/i3 Desktop Processors, up to 4.7GHz |
CPU Socket | LGA1151 |
Chipset | Intel® Q370 PCH |
Memory | 2x DDR4-2666/ 2400 DIMM, Max. 64GB |
Graphics | Intel® HD Graphics P630/ MXM GTX Graphics card |
LAN | LAN 1: Intel® I219LM GbE |
Expansion Slots | 1x Mini PCI-E |
I/O Interface | Up to 16x HDMI 1.3 with hardware EDID emulation (with GTX1080 MXM Graphics card) |
Auto Control and Monitoring | Watchdog Timer: 256 segments, 0, 1, 2...255 (sec/min) |
Power Requirement | AC 110V ~ 240V |
Construction | SGCC |
Weight | 9.5Kg (20.9lbs) |
Chassis Color | Black & white |
Storage | 2x SATA III 2.5" HDD Dock (supports RAID 1) |
Power Supply | AC 110V~240V |
Mounting | Standard system bracket |

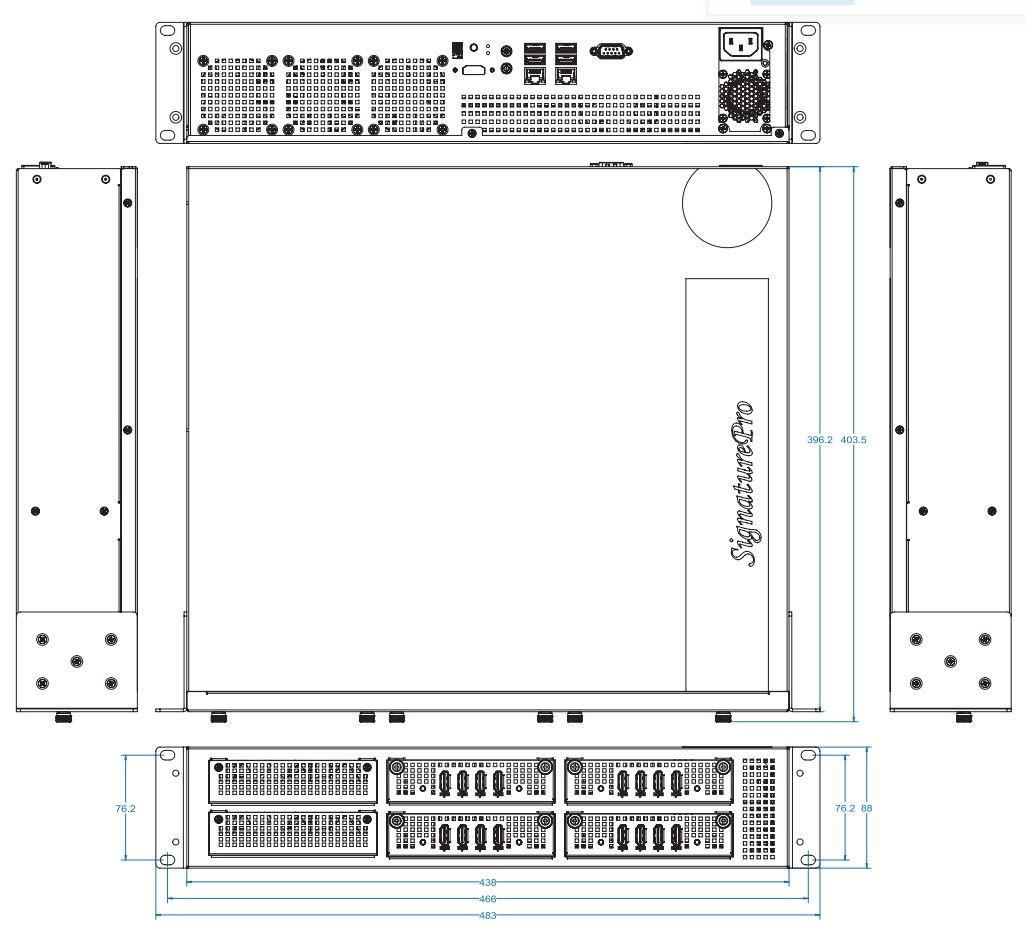

Dimensions | 395mm (W) x 438mm (D) x 88mm (H) |
Operating Temperature | 0°C~ 45°C (32°F~113°F) |
Storage Temperature | -20°C ~ 80°C (-4°F~176°F) |
Relative Humidity | 5~90% @ 45°C, (non-condensing) |
Vibration | mSATA: 5 grms / 5~500Hz / random operation |
Certification | CE, FCC Class B, cULus |
Operating System | Windows 10 IoT Enterprise(64-bit) |
SP-63ER-16 | Intel® Core™ i7-8700 Processor (12M cache, up to 3.2GHz), 1x MXM NV GTX 1080 8G GDDR5X 256-bits GPU card, 16x HDMI output, 2x 8GB DDR4-2666/2400 SO-DIMM, 2x 128GB SATA III 2.5” HDD Dock, 850W PSU |
|---|
