IBASE SW-101-N

Rain or Shine – The IBASE SW-101-N Waterproof Digital Signage Player Provides a Great and Robust Outdoor Media Experience

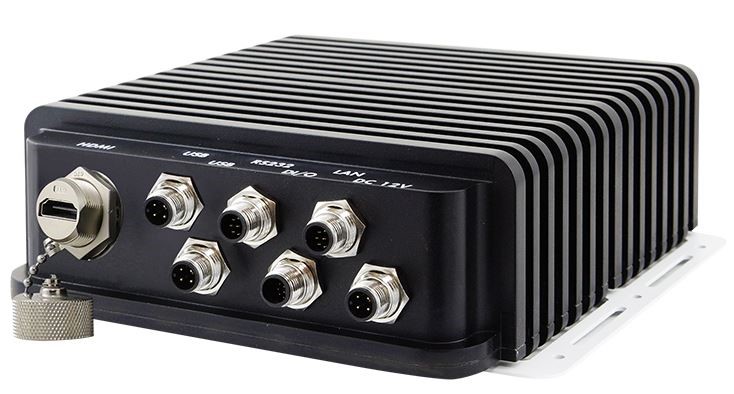

IBASE SW-101-N IBASE SW-101-N

BASE, a leader in the Digital Signage arena has engineered an innovative approach to this outdoor module, capable of operating in harsh conditions, tested under water. This outdoor digital signage player comes with specialized connectors and an IP68 rating, this compact and fanless outdoor digital signage player delivers through tough environments and wide temperatures for a variety of applications.

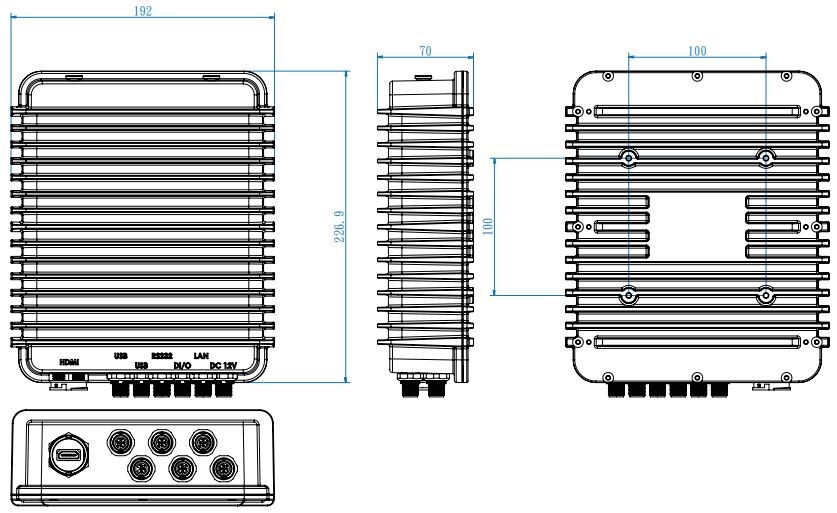

Dimensions (millimeters)

IBASE SW-101-N - Dimensions

IBASE SW-101-N IP68 Waterproof

Specifications

System Mainboard
SGT-MB3
CPU
Intel® Atom™ Processor E3845 Quad-Core 1.91GHz
CPU Socket
FCBGA 1170
Chipset
SoC Integrated
Memory
1x DDR3L-1333 SO-DIMMs, Dual channel, Max. 8GB
Graphics
Intel® HD graphics (Gen 7-LP) 4EU
LAN
1x Realtek RTL8111H-CG Gigabit LAN controller
Expansion Slots
1x mini PCI-E (full-size)
1x mSATA socket for mSATA SSD
I/O Interface
1x HDMI (C3 connector)
2x USB 2.0 (M12 connector)
1x Gigabit LAN (M12 connector)
1x RS232 (M12 connector)
1x DC power (M12 connector)
2x N jack type antenna opening w/ waterproof design
1x DIO (M12 connector)
Auto Control and Monitoring
Watchdog Timer: 256 segments, 0, 1, 2...255 (sec/min)
Power Requirement
12V DC-in
Construction
Aluminum die-casting and heavy-duty steel
Weight
2.8kg
Chassis Color
Black
Storage
1x mSATA
Power Supply
84W power adaptor (optional)
Mounting
Wall mount
Dimensions
227 mm (W) x 192 mm (D) x 70 mm (H)
8.93" (W) x 7.55" (D) x 2.75" (H)
Operating Temperature
-40°C ~ 75°C (-40°F ~ 167°F)
Storage Temperature
-40°C ~ 80°C (-40°F ~ 176°F)
Relative Humidity
10% ~ 90% (non-condensing)
Vibration
mSATA: 5 grms / 5 ~ 500Hz / random operation
Certification
CE, FCC Class-B
Operating System
Win7 32/64-bit, Win8, Win8.1. WEI8.1, WEC 2013, Win10 32/64-bit Enterprise

Ordering Information

SW-101-N
Signage Player with Intel® Atom® E3845 SoC (22 nm); Quad-Core 1.91 GHz, 4GB SO-DIMM RAM, 64GB mSATA w/o power adaptor
