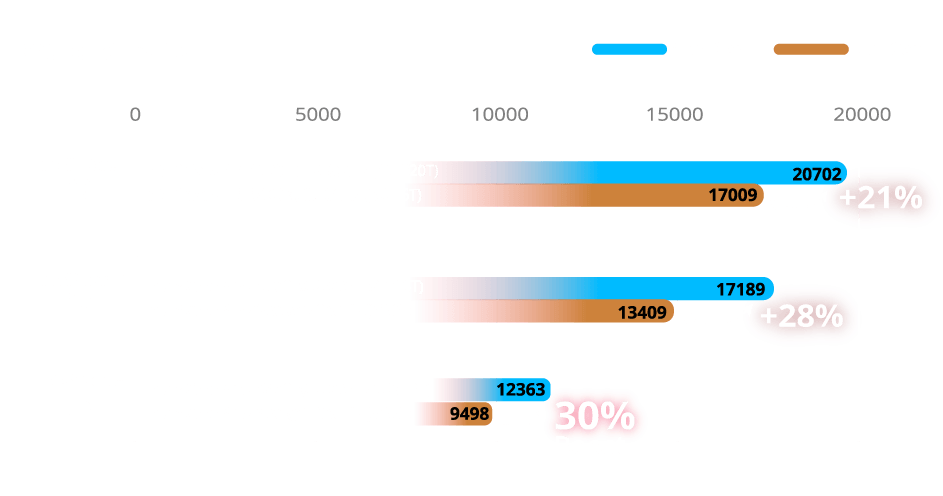

Performance boosts up to 80% better than previous generation on i5 processor. The 10th Gen Intel® Core platform supports up to 10 cores and improved performance over Coffee Lake-Refresh. With increased I/O capacity and the latest DDR4-2933 memory support, these processors deliver the performance required to consolidate industrial multiple workloads.

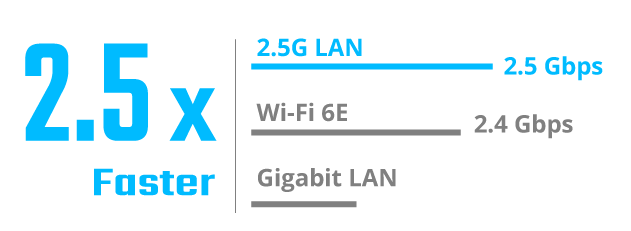

The on-board triple 2.5GbE controllers enable the KINO-DH420 Mini-ITX SBC to meet the bandwidth-intensive requirements such as large file transfers and high-resolution video streaming.
IEI KINO-DH420 features unprecedented network connectivity with three rear 2.5 Gigabit LAN ports, and it is small enough to fit into any space-confined situations.
Running with Intel® UHD Graphics of 11th Gen processor at 800 MHz allows the system to display videos and images in stunning 4K resolution via HDMI 1.4b and DP 1.4 dual independent display. The enhanced visual quality responses the demand of high precision display.
IEI's tBIOS allows users to navigate with finger on a touch-enabled monitor to make BIOS configuration easily.
The M.2 2230, a key slot with PCIe Gen3 x1 and USB 2.0, has adopted the latest Wi-Fi 6E technology. Wi-Fi 6E enhances low latency and supports service levels that are equivalent to 5G networks.
The KINO-DH420 also offers one M.2 3042/3052/2242/2280 B key socket supporting AI accelerator / NVMe SSD as well as SIM card slot for LTE deployment.
The KINO-DH420 brings high-performance industrial Edge with one PCIe x16 slot. This provides a greater range of support for GPGPU, frame grabber card and AI accelerators. It is designed for the most intensive applications from Edge AI system to automated optical inspection (AOI).
Form Factor | Mini-ITX Motherboard |
|---|---|
System | |
CPU | LGA1200 Intel® 10th Generation Core™ i9/i7/i5/i3, Celeron® and Pentium® processor |
Chipset | Intel® H420E |
Memory | Two 260-pin 2933 MHz Dual-Channel DDR4 SO-DIMMs supported up to 64GB |
Memory Max. | Up to 64GB |
Cooling method / System Fan | 1 x CPU fan connector (1x4 pin) |
Physical Characteristics | |
Dimensions (LxWxH) (mm) | 170mm x 170mm |
Net Weight | 400g |
Storage | |
Storage | 2 x SATA : 6Gb/s (no RAID) |
1 x M.2 (NGFF) : B key (support NVME storage) | |
I/O Interface | |
Display Output | 1 x HDMI up to 4096 x 2160 @30Hz |
1 x Display Port up to 4096 x 2304 @60Hz | |
Ethernet | 3 x LAN - LAN1: Intel® i225LM GbE controller (colay i225v) LAN2: Intel® i225v GbE controller (colay i225LM) LAN3: Intel® i225v GbE controller (colay i225LM) |
Audio | 1 x Line out |
1 x Mic | |
1 x Front Audio : 2x5 pin | |
1 x HD Audio : Realtek ALC888S HD codec | |
I/O Interface | 2 x External RS-232 |
1 x Internal RS-232 : 2x5 pin, P=2.00 | |
1 x Internal RS-422/485 : RS-485 support AFC | |
2 x External USB 2.0 : Type-A | |
4 x External USB 3.2 Gen1x1 : 5Gb/s (Type-A) | |
2 x Internal USB 2.0 : 2x4 pin, P=2.00 | |
1 x DIO : 8-bit digital I/O (2x5 pin) | |
Expansion | 1 x PCIe x 16 |
2 x M.2 (NGFF) - 1 x M.2 A key (2230) (PCIe Gen 3 x1/USB 2.0) 1 x M.2 B key (3042/3052/2242/2280) w/ SIM holder (PCIe Gen 3 x2/USB 2.0) | |
Other Features | |
TPM | Intel® PTT (TPM 2.0) |
Power | |
Power Consumption | 12V@12.408A (Intel® Core™ i9-10900E CPU with two 32 GB 2933 MHz DDR4 memory, EuP/ErP mode disabled) |
Power Supply | DC 12V input |
Environment | |
Operating Temperature | 0°C – 60°C |
Storage Temperature | -30°C – 70°C |
Humidity | 5% ~ 95%, non-condensing |
Certifications | |
Safety and EMC | CE/FCC-compliant |

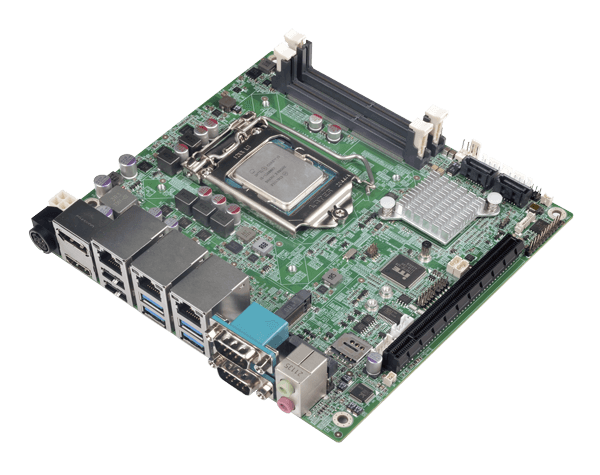

Mini-ITX SBC supports LGA1200 Intel® 10th Generation Core™ i9/i7/i5/i3, Celeron® and Pentium® processor, DDR4, dual independent displays, triple 2.5GbE LAN, M.2, SATA 6Gb/s, HD Audio and RoHS
1 x KINO-DH420 single board computer
1 x SATA cable
1 x I/O shielding
1 x QIG
The IEI KINO-DH420 Mini-ITX SBC has a performance boost of up to 80% better than the previous generation i5 processor.
