BoxPC ABox-6ULxL

MBa6ULx board MBa6ULx board

Based on MBa6ULxL for a cost-effective and small solution platform

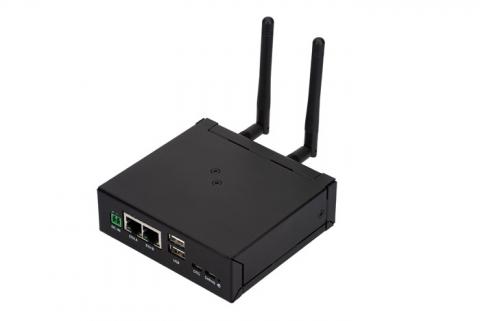

The Embedded BoxPC ABox-6ULxL is an ideal platform for embedded computing engineers, offering a cost-effective and compact solution for various applications. Based on the TQMa6ULxL, it features an extended temperature range, low power consumption (typically 2-3 W), and modular expandability. This Box PC provides a wide voltage input range, 2x CAN interfaces with galvanic isolation, and 2x Ethernet ports. It serves as both a gateway and a data logger, making it versatile for industrial applications. With a variety of interfaces and the power of Arm Cortex-A7 technology, it's well-suited for tasks requiring fast and secure data processing with minimal energy consumption.

Features

  • Extended temperature range for challenging environments.
  • Low power consumption for energy-efficient operation.
  • Modular expandability to adapt to specific needs.
  • Wide voltage input range for flexibility.
  • Galvanically isolated 2x CAN and 2x Ethernet interfaces.

Specifications

CPU
  • MX6UL2, MX6UL3, MX6ULL2

Memory
  • EEPROM: 0/64-kbit

    Quad SPI NOR: Up to 256 MB

    DDR3L: Up to 1 GB

    eMMC: Up to 32 GB

Graphics
  • Up to 4 independent 4K display outputs

    3x DP/DP++ 1.4a with up to 8K / HDMI

    1x eDP 1.4b or dual channel LVDS interface

Communications Interfaces
  • Ethernet: 2x Ethernet 10/100/Mbit

    Serial Ports: Up to 2x UART RS232

    CAN: Up to 2x CAN 2.0 B

    USB:
    • 1x USB 2.0 high-speed OTG interface

      2x USB 2.0 high-speed HOST interface

    USB-Debug (RS232)

Other Interfaces
  • GPIO: Up to 8x GPIO

    I2C: Up to 1x I2C

    PCIe:
    • Up to 1x SIM Card (mini PCIe)

      Up to 2x Mini PCIe

    SD Card: Up to 1x SD-Card

General
  • Dimensions: 110 x 103 x 35mm

    Temperature sensor

    Power supply: 8 - 30 V DC

    Temperature range:
    • Standard temperature range: -25°C…+70°C

      Extended temperature: -40°C…+70°C

OS
  • Linux

    QNX, INTEGRETY on request


Ordering Information

ABox-6UL2L-AA
ABox-6UL2, MBa6UL2L-AA, TQMa6UL2L-AA Cortex®-A7/528 MHz, 8 GB eMMC Flash, 256 MB DDR3L, 64kB EEPROM,
Temperature sensor, RTC, Interfaces: 2x USB 2.0, 1x USB OTG, 2x ETH 10/100, 1x CAN, USB-Debug Interface,
Reset-Button, Internal Interfaces: 1x Mini PCIe (only USB + SIM Card) SD-Card interface, -25°C…+70°C
ABox-6UL2L-AB
ABox-6UL2, MBa6UL2L-AA, TQMa6UL2L-AA Cortex®-A7/528 MHz, 8 GB eMMC Flash, 256 MB DDR3L, 64kB EEPROM,
Temperature sensor, RTC, Interfaces: 2x USB 2.0, 1x USB OTG, 2x ETH 10/100, 2x CAN, USB-Debug Interface,
Reset-Button, Internal Interfaces: 2x Mini PCIe (only USB + SIM Card), Expansion Interface 2,54 mm Pin
Header (8x GPIO´s, 2x RS232 (RX/TX), 2x I²C, 1x SPI), Graphics (18-bit), SD-Card interface, -25°C…+70°C
