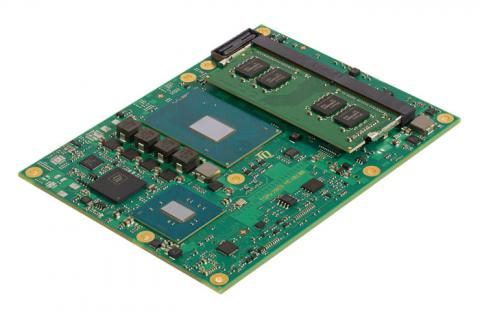

The TQ TQMx70EB is a high-performance COM Express® Basic Type 6 module, designed to meet the demanding requirements of advanced computing and graphics applications. Powered by 7th Generation Intel® Core™ and Intel® Xeon® E3-1500 v6 series processors, codenamed Kaby Lake-H, this module delivers exceptional processing power. It supports up to 32 GB of DDR4 memory with optional ECC protection, ensuring efficient multitasking and data integrity.
One of the standout features of the TQMx70EB is its robust graphics capabilities. Equipped with the Intel® GT2 graphics controller, it supports up to three independent displays with 4K resolution at 60 Hz, providing immersive visual experiences. Additionally, the module features hardware-accelerated 10-bit HEVC and VP9 encoding/decoding for premium multimedia content.
Connectivity is a breeze with this module, boasting large bandwidth through up to 24 PCIe lanes (Gen 3), including a PCIe x16 PEG port. It also supports Intel® Optane™ 3D XPoint SSDs, further enhancing storage performance.
Engineered for reliability, the TQMx70EB includes a TQMx86 board controller with custom expansion options (flexiCFG), watchdog functionality, thermal management, and a power-efficient "Green ECO-Off" mode. With its optimized performance, this COM Express® module is well-suited for a range of applications, including medical, gaming, and industrial systems, where high-end computing and graphics performance are essential.
Experience the future of embedded computing with the TQMx70EB from TQ Systems, designed in partnership with Intel.
CPU |
|
Memory |
|
Graphics |
|
Communications Interfaces |
|
Other Interfaces |
|
General |
|
TQMx70EB-AA |
|
TQMx70EB-AB |
|
TQMx70EB-AC |
|
TQMx70EB-AD |
|
Evaluation Platform MB-COME6-2 |
|
STKx70EB |
|
