Ortustech Displays with Blanview-F Technology (10.4 Inches)

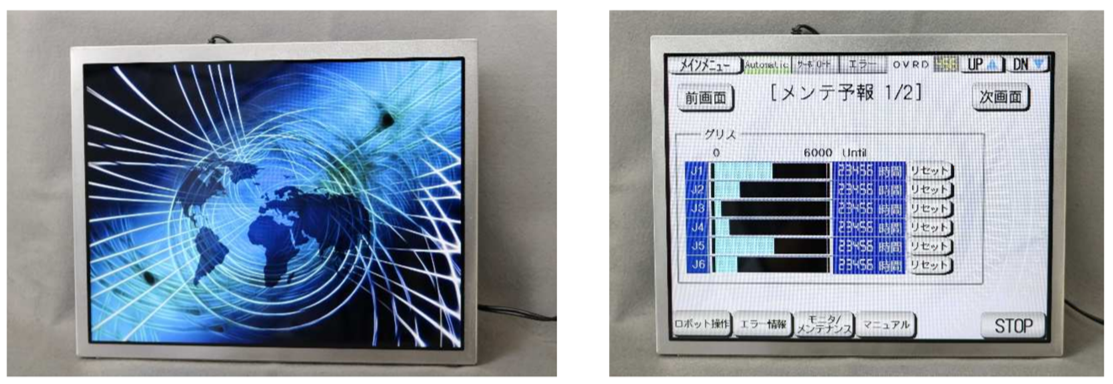

Toppan Ortustech is now sampling its new 10.4" outdoor-readable TFT LCD display. Driven by Toppan's proprietary Blanview technology, this Ortustech display has the lowest power consumption of any sunlight-readable color display. Contact Macnica Americas for samples and pricing.

  • Newly-developed “Blanview-F” technology
  • Low-Power / Low-Heating Backlight up to 40% less power draw than the competition
  • Long Lifetime Backlight Unit - 70,000hrs expected lifetime
  • Industrial backlight design ideal for continuous operation
  • Optional Capacitive Touch Screen (PCAP) Integration

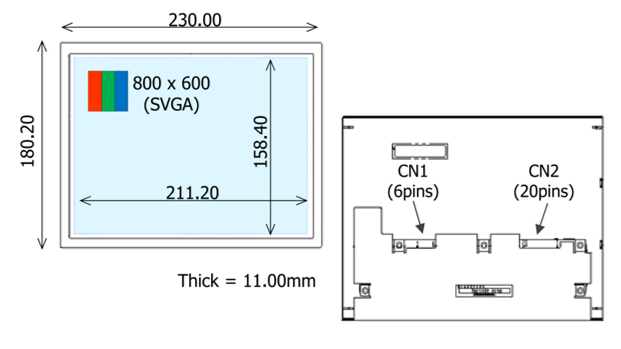

COM104H9M11xxx - 10.4” SVGA

COM104H9M11xxx - 10.4” SVGA COM104H9M11xxx - 10.4” SVGA
  • 10.4-inch, Full-Color, a-Si TFT-LCD
  • IPS-FFS TFT with Blanview Technology (“Blanview-F”)
  • Sunlight-Readable
  • Low Power Consumption (Less Heating)
  • High Image Quality
  • Wide Viewing Angle
  • Long Lifetime LED Backlight (70K hrs Life)
Part Number
COM104H9M11xxx
Display Features
10.4” Landscape (4:3)
Display Technology
Blanview Technology
IPS-FFS (Normally-Black)
Resolution
800 x 600 pixels (96ppi)
Power Supply
3.3V /12.0V
Data Input (# of Colors)
LVDS 6bit (262K) / 8bit (16.7M)
Color Purity (CF)
50% NTSC
Brightness (typ.)
[650] cd/m2 - Reference, Design Target
Viewing Angle (U/D/L/R)
[85 / 85 / 85 / 85] - Reference, Design Target
Contrast
[1000] - Reference, Design Target
Power Consumption
(@ typ. Brightness)
[3.7] Watt - Reference, Design Target
Backlight (Exp. Lifetime)
White LED; LED Driver embedded
([70,000hrs]) - Reference, Design Target
Temperature
Op: -30 ~ +70 ºC
St: -30 ~ +80 ºC
Status
Under Development, Sample Available
SOP (Target)
Q2/2021

Now sampling for evaluation
