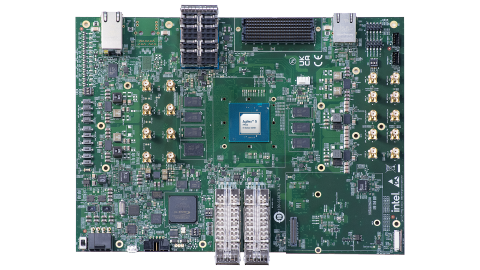

The Agilex™ 5 FPGA E-Series 065B Premium Development Board Kit is the latest offering from Altera, designed to meet the diverse needs of modern markets including embedded, edge, and communications. Powered by the Agilex 5 FPGA and System on Chip (SoC), this FPGA development board kit stands out for its balance of power efficiency and performance. It is packaged in a convenient tabletop form factor and comes equipped with a wide range of features such as extensive transceivers, DDR4 memory, and PCI Express 4.0 x4 connectivity via an FMC+ connector. Additionally, it boasts Nios® Flash memory, 2Gb QSPI Flash memory, and a Hard Processor System (HPS) expansion board, providing engineers with all necessary tools for starting their designs. The kit also includes a one-year license for the Quartus® Prime Pro Edition design software, further enhancing its utility for prototyping and development.
Device |
|
|---|---|
Form Factor | Tabletop |
Interfaces |
|
DDR Memory | LPDDR4, DDR4, HPS DDR4 up to 2667 Mbps (component soldered) |
Flash Memory | Nios® FLASH and 2Gb QSPI FLASH |
Expansion Board | HPS Enablement Expansion Board (Micro SD Card, RJ45, USB Type- C (USB2/3.2 Gen1) |
Cables & Adapters | AC adapter power and USB cables |
Software | This kit is supported on Altera Quartus Prime Pro Edition. There is no paid license fee required. Available for download from within the Quartus Prime Software after installation or from the Altera FPGA Self-Service Licensing Center. Visit Altera FPGA Licensing Support Center for additional licensing help. |
