Canon LI7080SA Super 35mm 4K Sensor

Canon LI7080SA CMOS Sensor Canon LI7080SA CMOS Sensor

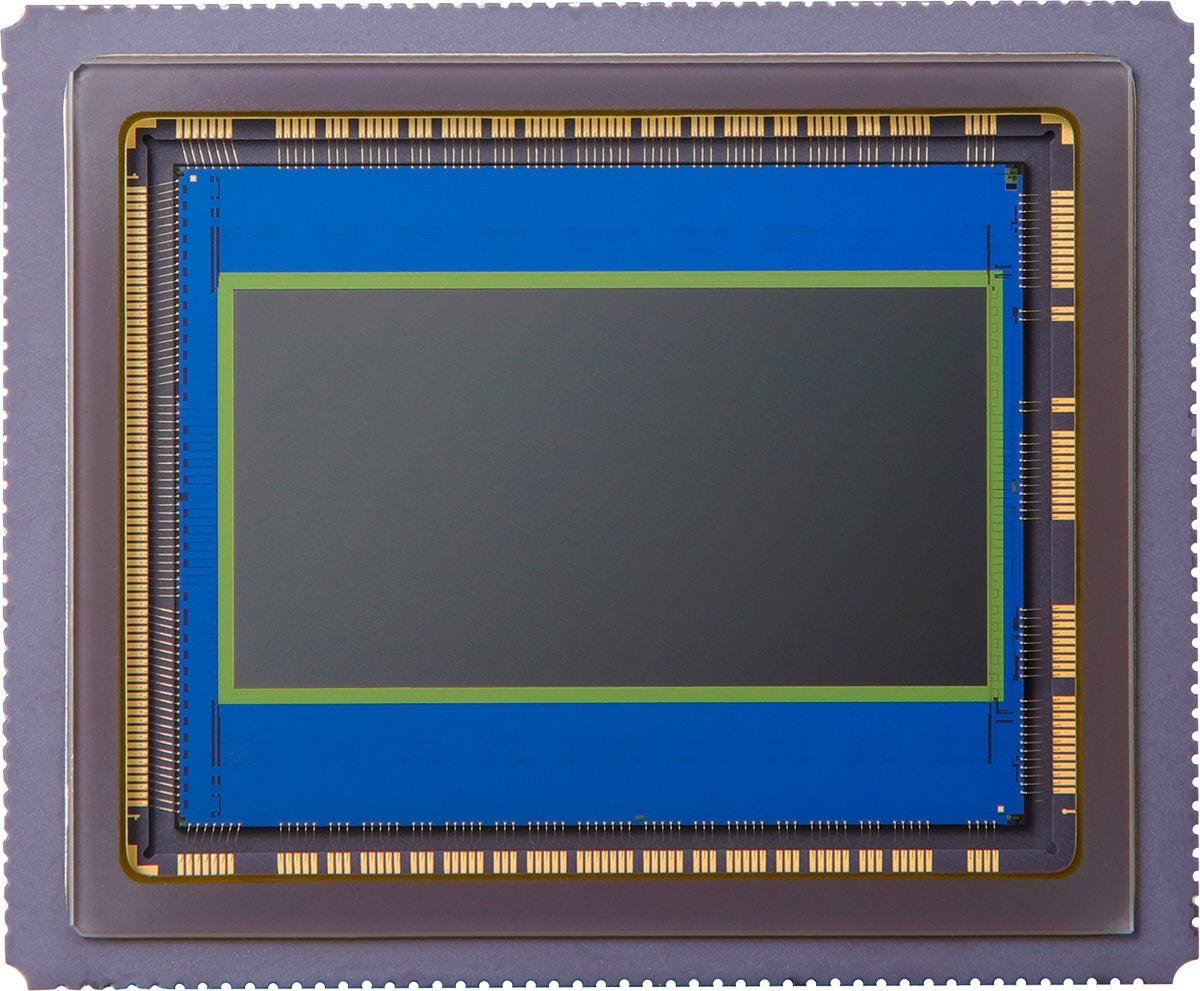

Canon LI7080SA CMOS Sensor

Utilizing high-speed signal readout technology, the super 35mm format Canon LI7080SA CMOS sensor boasts 4.5K resolution at 120 frames per second. With a 6.4 μm x 6.4 μm pixel size and rolling shutter technology, the LI7080SA provides professional-grade imaging that delivers performance suitable for high-end security and cinema cameras.

Technical Specifications

Filter Type
RGB (RGB on-chip color filter)
Recording screen size:
Greater than Super 35mm (29.0 mm x 15.4 mm)
Number of effective pixels:
4536 x 2400 (Horizontal x Vertical)
Pixel size:
6.4 μm x 6.4 μm
Number of output channels:
Data 30 lanes, Clock 2 lanes
Output format:
LVDS output, 840 Mbps @14bit
Main clock frequency:
60 MHz (recommended)
All pixel readout:
120 fps
Analog gain:
-6dB, 0dB, 6dB, 12dB, 18dB and 24dB
Saturation:
82,000 e (Typ.) @120fps
Sensitivity:
85,000 e/lx/sec (Typ.)
Dark Random Noise:
2.2 e-rms @18dB
Dark Current:
33 e/sec (Typ.) @60°C (package reverse side), 18dB
Power consumption:
2.3 W (Typ.) @120fps
Power supply voltage:
3.5V, 3.3 V, 1.8V, -1.2V, 2.62V, 2.5V, 1.6V
