RZ/G3E MPU 搭配 ITE IT6263,打造適用於中高階應用的旗艦級 HMI 邊緣顯示平台

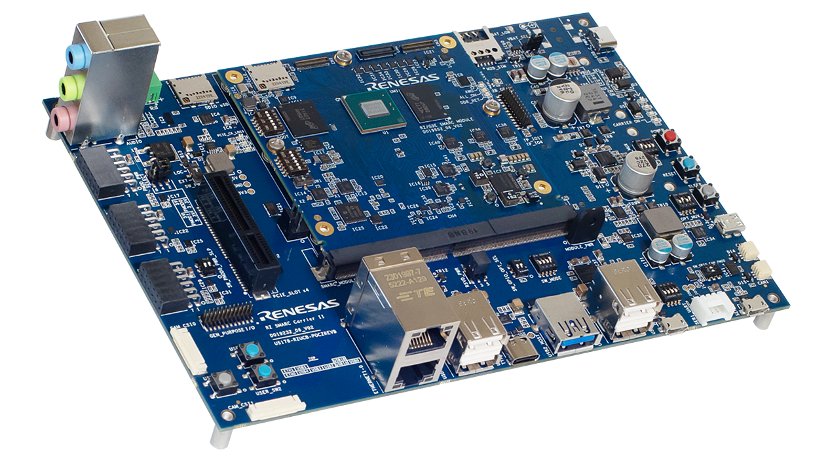

With the rapid growth of smart home technology, energy solutions, and multimedia devices, Human-Machine Interface (HMI) systems are evolving from basic display panels into intelligent platforms integrating edge AI computing, image processing, and high-speed connectivity. To address the increasing demands for dual-display support, high-resolution output, and enhanced computing performance in embedded systems, Renesas launches its next-generation general-purpose MPU — the RZ/G3E — on Jul 29th 2025. In collaboration with ITE Tech., Renesas provides the RZ/G3E-EVKIT which incorporates the IT6263 LVDS-to-HDMI display bridge. The kit offers a flexible display integration option and high compatibility to accelerate the development of HMI platforms.
RZ/G3E MPU: A Versatile Core for Edge Computing and HMI Applications
RZ/G3E Integrates a Quad-Core CPU, an NPU, High-Speed Connectivity and Advanced Graphics to Power Next-Generation HMI Devices with Full HD Display
- 64-bit Arm Cortex-A55 quad-core processor, up to 1.8GHz, balancing performance and power efficiency
- Built-in Arm Ethos-U55 NPU, delivering up to 512GOPS AI inference performance
- High-speed interfaces including PCIe Gen3, USB 3.2, and dual GbE to meet bandwidth-intensive demands
- Dual display support through MIPI-DSI, dual-channel LVDS, and Parallel interfaces
- Support Security functions with Secure Boot, Trust Zone, Secure firmware update, Secure Debug and Cryptography
- Rich I/O support including I2S, SPDIF, CAN FD, and I3C for connecting to a wide range of embedded peripherals

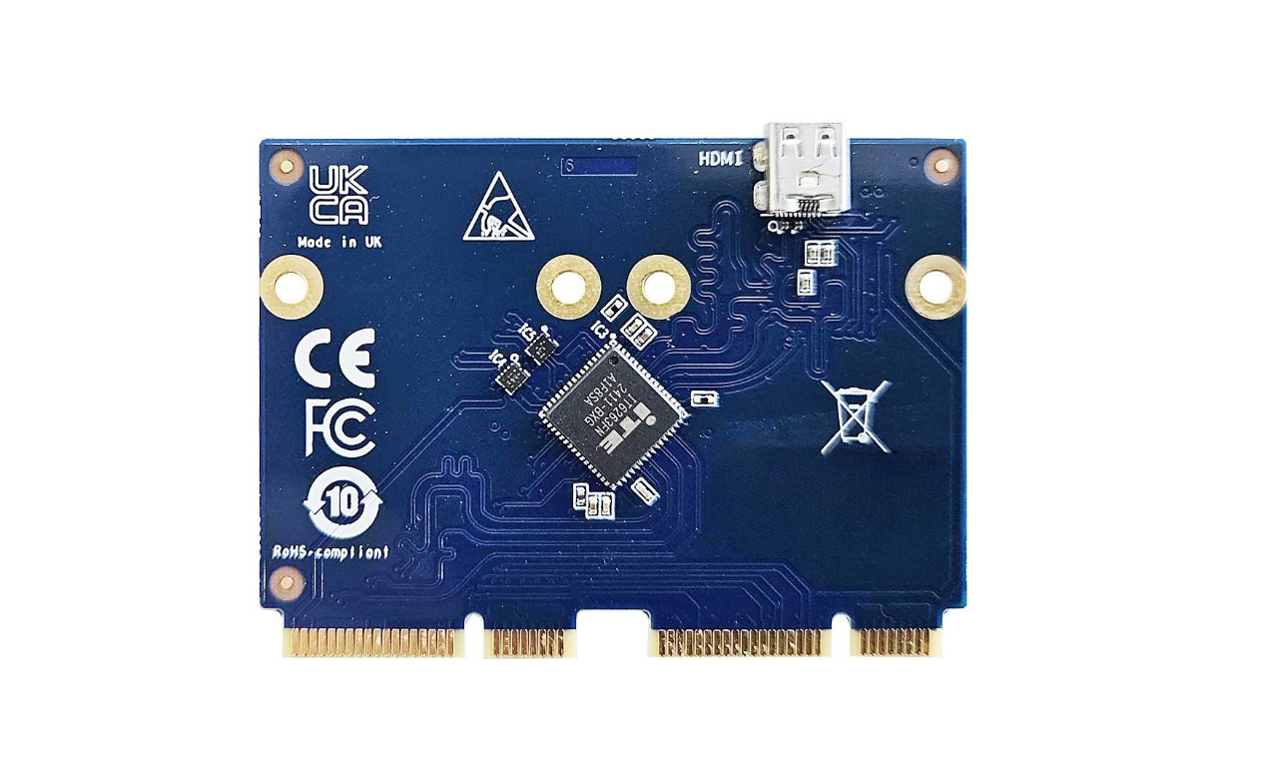

ITE IT6263: A Highly Compatible LVDS-to-HDMI Display Bridge
To address the common requirement for converting LVDS input to HDMI output in embedded systems, ITE Tech. offers the IT6263 — a reliable and versatile solution that has been widely adopted in commercial display and embedded applications.
- Supports single and dual-channel LVDS input, up to 1080p60 or UXGA resolution
- HDMI 1.4a output, with support for major 3D video formats and multi-channel audio
- Built-in De-SSC (De-Spread Spectrum) functionality for reduced EMI, enhancing signal quality
- Integrated EDID management, pattern generator, and frame buffer to streamline development and improve boot-up stability
- High compatibility with multiple input/output formats including OpenLDI, JEIDA, and VESA data mappings
- Supports up to 8-channel I2S and S/PDIF audio inputs, including HBR formats such as DTS-HD and Dolby TrueHD
Integration Benefits
The RZ/G3E provides a comprehensive edge computing and multimedia processing platform, while the IT6263 enables seamless conversion of LVDS signals to HDMI output — ideal for systems still using legacy display panels but requiring modern HDMI interfaces. Together, the solution delivers several integration advantages:
- Simplifies system architecture and shortens development time
- Enhances flexibility to support various display types and interface combinations
- Improves EMI immunity and startup stability to ensure consistent performance
- Suitable for applications such as video conferencing, industrial control (IT62633 meets industrial requirements), energy systems, and smart terminals
A Competitive, Scalable Platform Designed for Commercial Success
By combining the robust computing and multimedia capabilities of Renesas RZ/G3E with the display integration flexibility of ITE IT6263, this collaboration presents a next-generation embedded HMI edge architecture. More than just a hardware pairing, it offers a stable and scalable foundation for accelerating product development and commercialization in a wide range of smart embedded applications.
