【Products】IT6162 (MIPI DSI to HDMI2.0)

1. General Description

The IT6162 is a high-performance and low-power dual-port MIPI DSI to HDMI2.0 converter. It receives one or dual port MIPI DPHY input with low-quality MIPI cables, and converts it to TMDS output, of which current levels and pre-emphasis are both programmable. Each MIPI input can operate in 1/2/4-lane mode. Lane-swap and PN-swap are separately available for flexible circuit layout.



The integrated MIPI receivers are D-PHY 2.0 and DSI-2 ver. 2.0 compatible, capable of supporting up to 2.5Gbps/Lane and 20Gbps bandwidth in dual-input mode. A DSC decoder is equipped for applications that utilize only 1 MIPI port. The IT6162 supports MIPI DSI streams such as packed-pixel-stream: RGB in 16/18/24/30/36-bit, YCbCr422 in 16/20/24-bit, YCbCr420 in 12-bit, and loosely-packed-pixel-stream: RGB in 18-bit, YCbCr422 in 20-bit, and DSC 8b/10b streams. Both sync pulse or sync event packets can be received with HSync and VSync generated as original or by firmware setting. The RX/TX deep color capability (up to 36-bit) ensures robust reception of high-quality uncompressed or compressed video content.



The high-performance HDMI 2.0 transmitter is fully compliant with HDMI2.0b and HDCP 1.3/2.3 specifications. It supports a signaling rate up to 6.0Gbps per channel on the HDMI interface, such that the 18.0Gbps bandwidth capability of IT6162 allows it to support content stream such as the popular ultra-high definition 4Kx2K 60Hz format, 3D video with 4Kx2K@30Hz, and so on. The SCDC data structure is contained in HDMI TX side of IT6162 so that HDMI2.0 content could be properly transmitted to downstream side.



To facilitate system design, IT6162 integrates on-chip CSC conversion (including YCbCr 422/444 to RGB , and vice versa) and dithering capability.



The IT6162 supports VRR function as well, so that VRR feature can be implemented in the system.

2.Key feature

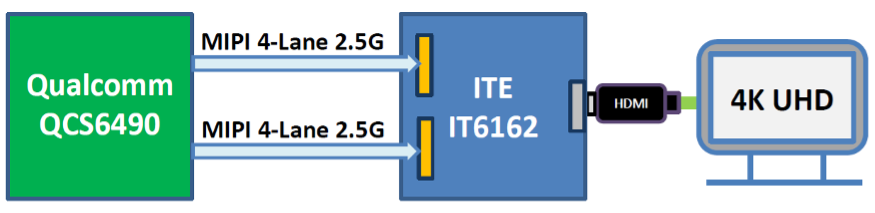

  • MIPI 2 port D-PHY/8 lanes to HDMI2.0 or 1 port D-PHY 4lanes with DSC to HDMI2.0
  • Embedded Flash and MCU
  • Support VRR
  • Support 8 channel audio
  • Support 3D stereo Display

3. Application and SOC verified

  • Application for Tablet, POS, IPC, NVR and Video Conference
  • Verified SOC include MTK, Qualcomm, Rockchip and NXP

Unlock the Future of Display: IT6162 MIPI DSI to HDMI2.0 Converter

In the rapidly evolving display technology landscape, what you need is not just a powerful IC, but a solution that simplifies system integration and enhances overall performance. The IT6162, a leading MIPI DSI to HDMI2.0 converter chip, delivers high efficiency, robust signal processing, and versatile configuration to help your products stand out in a competitive market.


Key Features That Simplify Design

  • Dual MIPI Inputs with Up to 20Gbps Bandwidth
    The IT6162 supports either single or dual MIPI D-PHY inputs, offering up to 20Gbps of total bandwidth. It is fully compatible with major SoC platforms—not only from MTK, Qualcomm, Rockchip, and NXP, but also from a broad range of other vendors—ensuring seamless integration across diverse system architectures.
  • High-Performance HDMI2.0 Output Supporting 4K 60Hz and 3D Displays
    The integrated HDMI2.0 output meets HDMI 2.0b and HDCP 1.3/2.3 specifications, delivering up to 6Gbps per channel. It fully supports ultra-high definition 4Kx2K@60Hz and 4Kx2K@30Hz 3D formats, providing clear and vivid visuals with reliable bandwidth capacity.
  • Built-in DSC Decoder and Color Space Conversion (CSC)
    Equipped with a DSC decoder, the IT6162 efficiently decompresses video data and supports bi-directional color space conversion between RGB and YCbCr 422/444. This ensures high-fidelity image rendering without losing critical detail-ideal for professional-grade imaging needs.
  • Variable Refresh Rate (VRR) and Deep Color Support
    With VRR capability, the IT6162 ensures smoother display performance in dynamic visual environments. Support for up to 36-bit color depth delivers exceptional clarity and color precision in both still and motion graphics.

Streamlined Integration and Enhanced Development

  • Integrated MCU and Flash for Simplifying System Design
    The onboard MCU and Flash reduce the need for external components, allowing for a cleaner system architecture and faster development cycles.
  • Flexible Circuit Design Options
    With support for lane swapping and PN swapping, the IT6162 offers greater PCB layout flexibility, helping engineers avoid routing constraints and improve overall board efficiency.

Versatile Applications Across Devices

  • Ideal for Tablets, POS Systems, Industrial PCs (IPC), NVRs, and Video Conferencing Devices
    Whether it’s high-performance displays in commercial systems or stable video handling in surveillance solutions, the IT6162 delivers reliable, high-quality signal conversion tailored to various embedded system needs.

Advance Your Product, Stay Ahead Globally

With exceptional performance and industry-proven stability, the IT6162 is trusted by leading technological brands worldwide. It's the ultimate solution for any device requiring advanced video signal processing—empowering your products to stay competitive in a fast-moving global market.
