The IT6227FN is a highly integrated USB Type-C and Power Delivery (PD) controller with DisplayPort to HDMI converter, designed for dongle applications.

The IT6227FN has integrated Type-C DFP/UFP/DRP resistors and control logic with dead battery support. For USB PD applications, IT6227FN fully supports PD2.0, and PD3.0 including chunk mode. The built-in DisplayPort receiver is fully compatible with DisplayPort 1.4a and HDCP 1.3/2.3 specifications. With 4-Lane HBR3 (High-Bit-Rate 3) configuration and DSC 1.2a, the DP receiver can support VESA resolution up to WUXGA (1920x1200 @ 240Hz), WQXGA (2560x1600 RB @ 240Hz) and CEA resolution up to 4Kx2K 4:4:4 @ 120Hz or 8Kx4K 4:4:4 @ 30Hz or 8Kx4K 4:2:0 @ 60Hz. This DisplayPort receiver also supports MCCS and CEC tunneling over AUX channel.

The built-in HDMI transmitter is a high-performance HDMI 2.1 transmitter, fully compliant with HDMI 2.1a, HDCP 1.4/2.3 and backward compatible with DVI 1.0 specifications. This HDMI transmitter can support color depth up to 36 bits (12 bits/color) and ensures robust transmission of high-quality uncompressed video content. Aside from the various video output formats supported, this HDMI transmitter also supports 8 channels digital audio with sampling rates up to 192kHz, sample size up to 24 bits, and HBR audio.

With embedded MCU and Flash, IT6227FN is easy to program. No external Flash or MCU is required, reducing BOM cost and saving board space.

Each IT6227FN comes pre-programmed with a unique HDCP key, in compliance with HDCP 1.3/2.3 – Amendment for DisplayPort, Rev.1.0 and HDCP 1.4/2.3 –HDMI compliance standards ensuring secure transmission of high-definition content. Users of the IT6227FN need not purchase any HDCP keys or ROMs.

• USB-C ALT-DP to HDMI2.1 converter
• Support Dual Type-C port for PD3.0 protocol
• Compliant with DisplayPort V1.4a at 1.62/2.7/5.4/8.1 Gbps data rate ( RBR/HBR/HBR2/HBR3 )
• Compliant with HDMI2.1a, HDCP 1.4/2.3 and DVI 1.0 specification
• Support TMDS mode link speed up to 6 Gbps, resolution up to 4K60Hz
• Support FRL mode link speed of up to 12 Gbps, resolution up to 4K120 444 or 8K30 444 or 8K60 420
• Support DSC decoder compliant with DSC V1.2a
• Support up to 4Kx2K@240Hz 444 or 8Kx4K@60Hz 444 ( with DSC stream )
• Support 8-channel, uncompressed LPCM I2S audio with sample rates of 32~192kHz and sample sizes of 16~24 bits, and 768K HBR NLPCM audio by DP to HDMI pass-throughSupport Audio extraction to digital I²S/SPDIF 2-Channel audio sample rate and HBR audio up to 768kHz
• Support Display Adaptive Sync to HDMI2.1 Variable Refresh Rate (VRR) converter
• Support embedded MCU and 12 GPIOs
• Embedded InfoBlock for communication with SOC

• Applications for USB-C ALT-DP Dongle/Docking/Box, and Sink Display Product

As USB Type-C and high-resolution AV demand continue to surge, ITE Tech. Inc. introduces the IT6227FN — a highly integrated USB Type-C and Power Delivery (PD) controller IC with embedded DisplayPort to HDMI 2.1 conversion functionality. Tailored for dongles, docking stations, and display-end applications, this one-chip solution empowers customers to create compact, feature-rich, and design-efficient audio-video transmission products.

The IT6227FN features complete USB-C DFP/UFP/DRP logic and resistors, supports Dead Battery mode, and is fully compliant with USB PD 2.0 and PD 3.0 (including Chunk Mode). With an integrated MCU and on-chip Flash memory, the device eliminates the need for external controllers or memory, significantly reducing system complexity, BOM cost, and PCB layout area.

Equipped with a 4-lane HBR3 DisplayPort 1.4a receiver and DSC 1.2a decompression, IT6227FN supports high refresh rate resolutions, including:

• VESA formats: up to WUXGA@240Hz and WQXGA@240Hz
• CEA formats: 4K120Hz (4:4:4), 8K30Hz (4:4:4), and 8K60Hz (4:2:0)

The integrated HDMI 2.1a transmitter supports FRL mode with up to 12Gbps per lane, 36-bit color depth, and 8-channel high-definition audio (up to 192kHz / 24-bit). Features such as HBR (High Bit Rate) audio and Display Adaptive Sync to HDMI VRRmake it ideal for gaming and high-quality media playback.

Each IT6227FN is pre-programmed with a unique HDCP key, compliant with HDCP 1.3 / 2.3 (DP) and HDCP 1.4 / 2.3 (HDMI), ensuring content protection and simplifying DRM compliance and product certification. The chip also supports audio extraction, outputting LPCM / HBR audio via I²S or SPDIF, providing flexible multimedia integration options for developers.

• USB-C ALT Mode DisplayPort to HDMI 2.1 conversion
• Dual Type-C ports with PD 3.0 protocol support
• Compliant with DisplayPort 1.4a (RBR/HBR/HBR2/HBR3 rates)
• Backward compatible with HDMI 2.1a / HDCP 2.3 / DVI 1.0
• FRL mode supports up to 4K120Hz, 8K30Hz, 8K60Hz
• Built-in DSC 1.2a decoder for up to 4K240Hz / 8K60Hz streaming
• I²S / SPDIF audio output, audio extraction, and HBR audio support
• HDMI VRR (Variable Refresh Rate) support for smooth playback
• Embedded MCU and 12 GPIOs, supports InfoBlock communication with SoCs

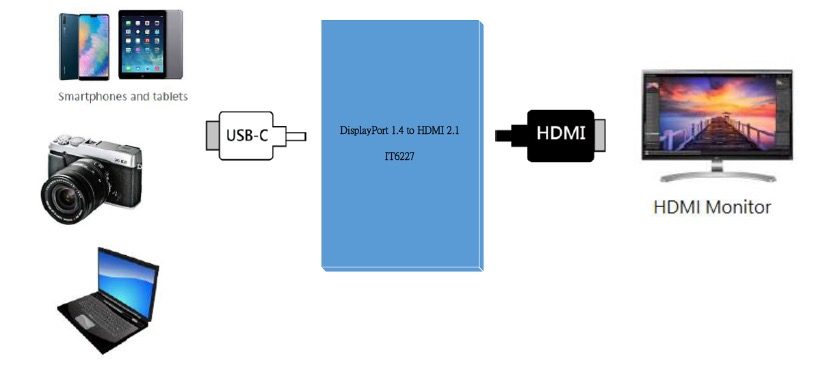

The IT6227FN is perfectly suited for USB-C ALT-DP based AV and display applications, such as:

• USB-C to HDMI AV dongles
• Multi-function docking stations
• Display conversion boxes or embedded sink display devices

The solution is already validated with major SoC platforms, allowing customers to accelerate product integration and shorten time-to-market.

With best-in-class performance, flexibility, and cost-efficiency, the IT6227FN is your go-to platform for building the next generation of high-resolution audio-visual products.
