EasyMVC | Modular Machine Vision Development Kit

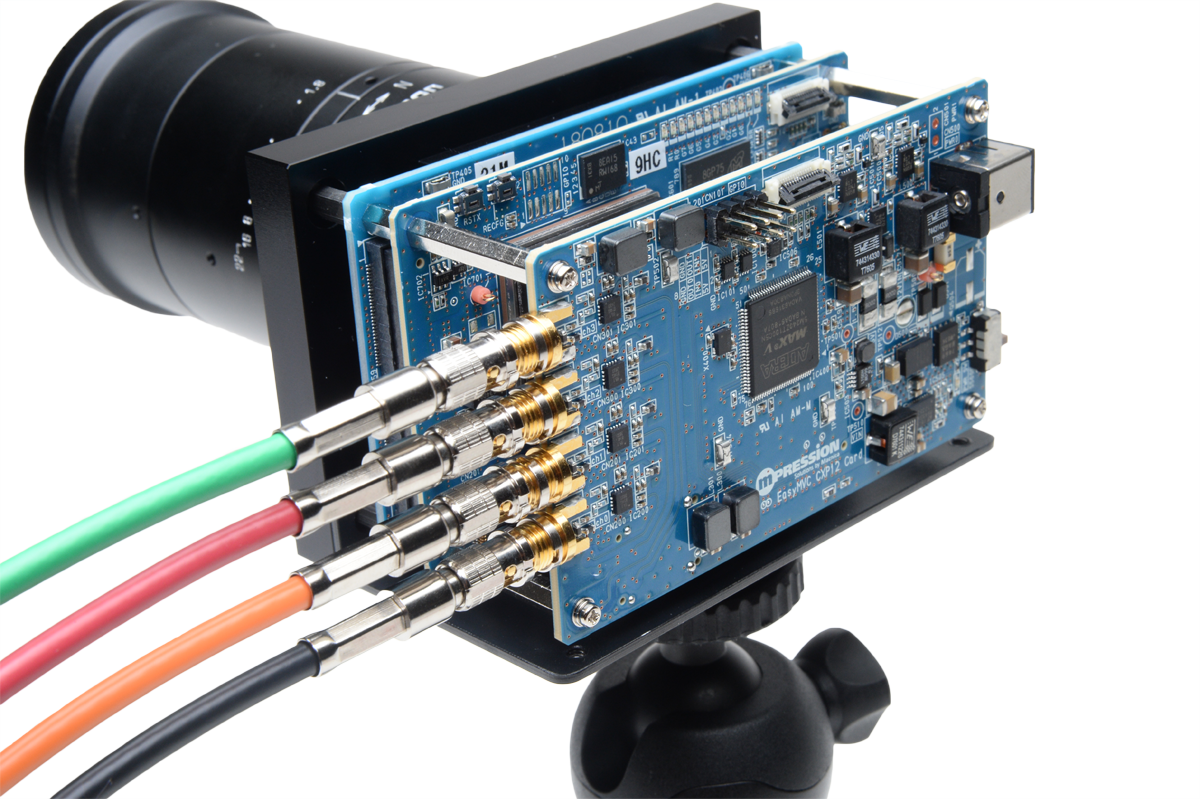

EasyMVC camera EasyMVC camera

Modular Machine Vision Development System accommodating various combinations of sensors, FPGAs, and interfaces

EasyMVC is a modular machine vision camera development kit for both hardware engineers and software developers who work on machine vision systems.

This machine vision development kit consists of three major parts, an image sensor board, an FPGA board, and an interface board. By interchanging the combinations of various sensors, IP cores, and interfaces, various aspects of requirements for the machine vision system can be easily evaluated without requiring any troublesome setup. In addition, the provided hardware and software sample designs help shorten development time and lower the cost of development.

* This product is intended for pre-purchase evaluation of our IP cores, SLVS-EC IP, GigE Vision IP, USB3 Vision IP, and CoaXPress IP.

* If you purchase for any other purpose, we will not be able to provide technical support.

Basic Configuration

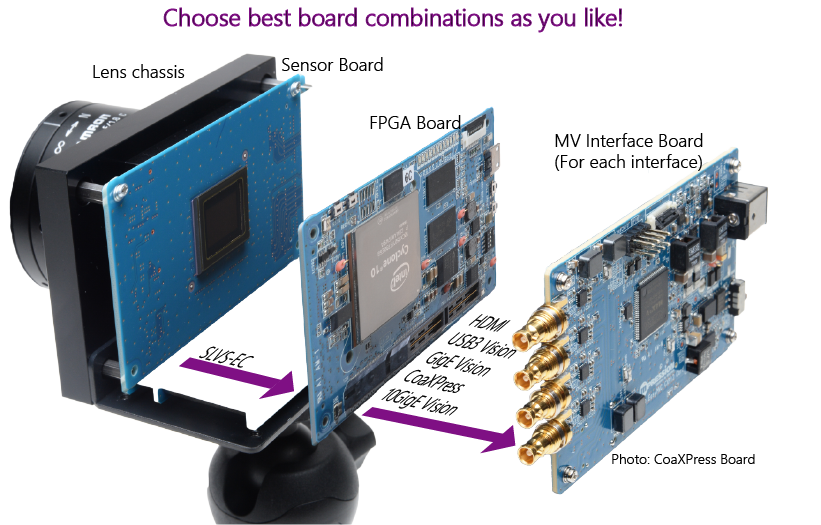

EasyMVC exploded view of the camera EasyMVC exploded view of the camera

Benefits

  • Allows for evaluation of key technologies for machine vision cameras
    • Cutting-edge CMOS image sensors
    • Various Machine Vision interfaces
    • IP cores that Macnica offers
  • Allows for easy development of machine vision camera prototypes
    • FPGA design
    • Firmware development
    • Development of Host PC software, etc.

Standard Kits

Product line up with various combinations of sensors, FPGAs, and Machine Vision interfaces.


Model
Sensor
Color
FPGA
MV Interface
EasyMVC Sony IMX420MS/CS C10 HDMI U3V Kit
Sony IMX420
Mono /Color
Cyclone® 10 GX
HDMI®2.0 & USB3 Vision®
EasyMVC Sony IMX420MS/CS C10 Coax1.1 Kit
Sony IMX420
Mono /Color
Cyclone® 10 GX
CoaXPress® 1.1.
EasyMVC Sony IMX421MS C10 Coax1.1 Kit
Sony IMX421
Mono
Cyclone® 10 GX
CoaXPress® 1.1.1
EasyMVC Sony IMX420CS/MS C10 Coax2.0 Kit
Sony IMX420
Mono /Color
Cyclone® 10 GX
CoaXPress® 2.0
EasyMVC Sony IMX421CS/MS C10 10GigE Kit
Sony IMX421
Mono /Color
Cyclone® 10 GX
10GigE Vision with 1588

EasyMVC Sony IMX420MS/CS C10 HDMI U3V Kit

easy mvc key features easy mvc key features

Key Features

  • Sensor Board
    • Sony IMX 420
      • SLVS-EC 8 Lane Outputs
      • Global Shutter
      • 7M pixels
  • FPGA Board
    • Altera Cyclone® 10 GX
      • 10CX150YF780E5G
  • Interface Board
    • HDMI® interface
      • For connection to TV Monitor
    • USB3.0 interface
      • For connection to PC
      • Support USB3 Vision®
EasyMVC Sony IMX420MS/CS C10 HDMI U3V Kit EasyMVC Sony IMX420MS/CS C10 HDMI U3V Kit

Key Features

  • Sensor Board
    • Sony IMX 420
      • SLVS-EC 8 Lane Outputs
      • Global Shutter
      • 7M pixels
  • FPGA Board
    • Altera Cyclone® 10 GX
      • 10CX150YF780E5G
  • Interface Board
    • HDMI® interface
      • For connection to TV Monitor
    • USB3.0 interface
      • For connection to PC
      • Support USB3 Vision®

FPGA Design Block Diagram

FPGA Design Block Diagram FPGA Design Block Diagram

Packaged items

  • Hardware
    • IMX420 CMOS sensor board
    • Cyclone® 10 GX FPGA board
    • HDMI® 2.0 and USB 3.0 Machine Vision interface board
  • Software (Available upon request)
    • Sample Design
      • FPGA design
      • Software tools (for Windows®)
        • GenICam® middleware for evaluation
        • GenICam® application
  • IP design for evaluation (Request basis)
    • SLVS-EC Rx
    • HDMI® 2.0 Rx
    • USB3 Vision®
    •

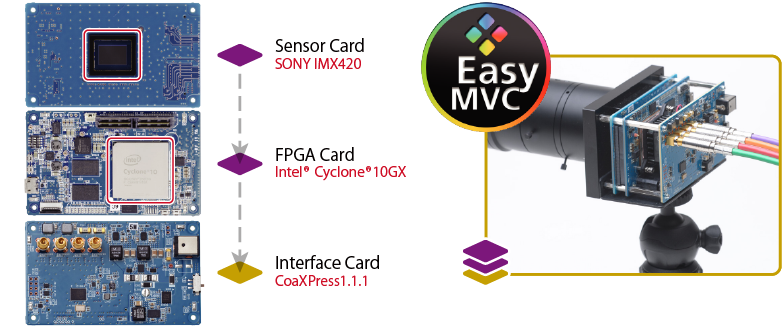

EasyMVC Sony IMX420MS/CS C10 Coax1.1 Kit / EasyMVC Sony IMX421MS C10 Coax1.1 Kit

EasyMVC Sony IMX420MS/CS C10 Coax1.1 Kit / EasyMVC Sony IMX421MS C10 Coax1.1 Kit EasyMVC Sony IMX420MS/CS C10 Coax1.1 Kit / EasyMVC Sony IMX421MS C10 Coax1.1 Kit

Key Features

  • Sensor Board
    • Same Board as EasyMVC Sony IMX420MS/CS C10 HDMI U3V Kit
    • IMX421 CMOS sensor board for EasyMVC Sony IMX421MS C10 Coax1.1 Kit
  • FPGA Board
    • Same Board as EasyMVC Sony IMX420MS/CS C10 HDMI U3V Kit
  • Interface Board
    • CoaXPress® interface (DIN connector)
    • 25Gbps (6.25Gbps x4 connection)

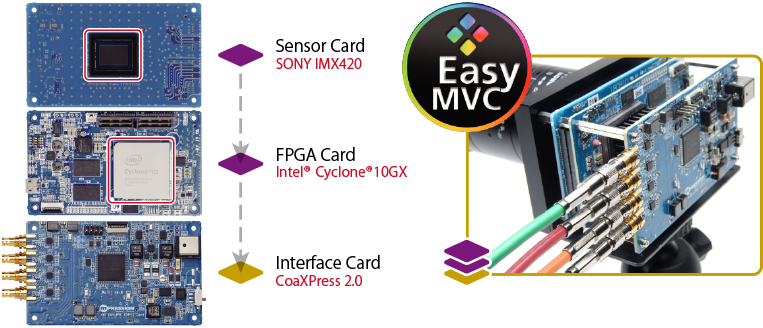

EasyMVC Sony IMX420CS/MS C10 Coax2.0 Kit

EasyMVC Sony IMX420MS/CS C10 HDMI U3V Kit

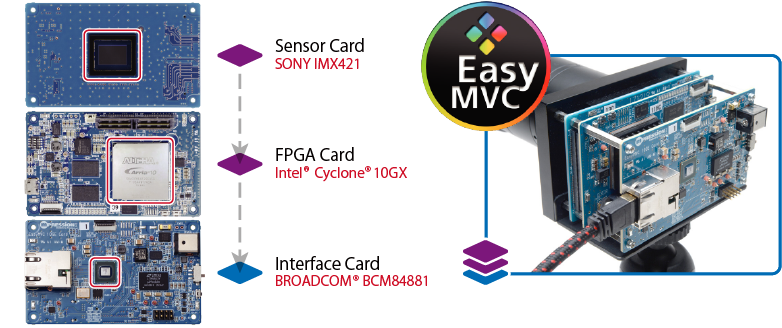

EasyMVC Sony IMX421CS/MS C10 10GigE Kit

EasyMVC Sony IMX421CS/MS C10 10GigE Kit

Ordering Information

Model name
Ordering Code
EasyMVC Sony IMX420CS C10 HDMI U3V Kit
EMS420CSC10HDU3V
EasyMVC Sony IMX420MS C10 HDMI U3V Kit
EMS420MSC10HDU3V
EasyMVC Sony IMX420CS C10 Coax1.1 Kit
EMS420CSC10COAX1
EasyMVC Sony IMX420MS C10 Coax1.1 Kit
EMS420MSC10COAX1
EasyMVC Sony IMX421MS C10 Coax1.1 Kit
EMS421MSC10COAX1
EasyMVC Sony IMX421CS C10 10GE Kit
EMS421CSC1010GE
EasyMVC Sony IMX421MS C10 10GE Kit
EMS421MSC1010GE
