Terasic Stratix 10 Sensor Processing Kit

Terasic's high throughput sensor interface platform for Altera Stratix 10 TX, built for real time GPU sensor streaming via NVIDIA Hololink.

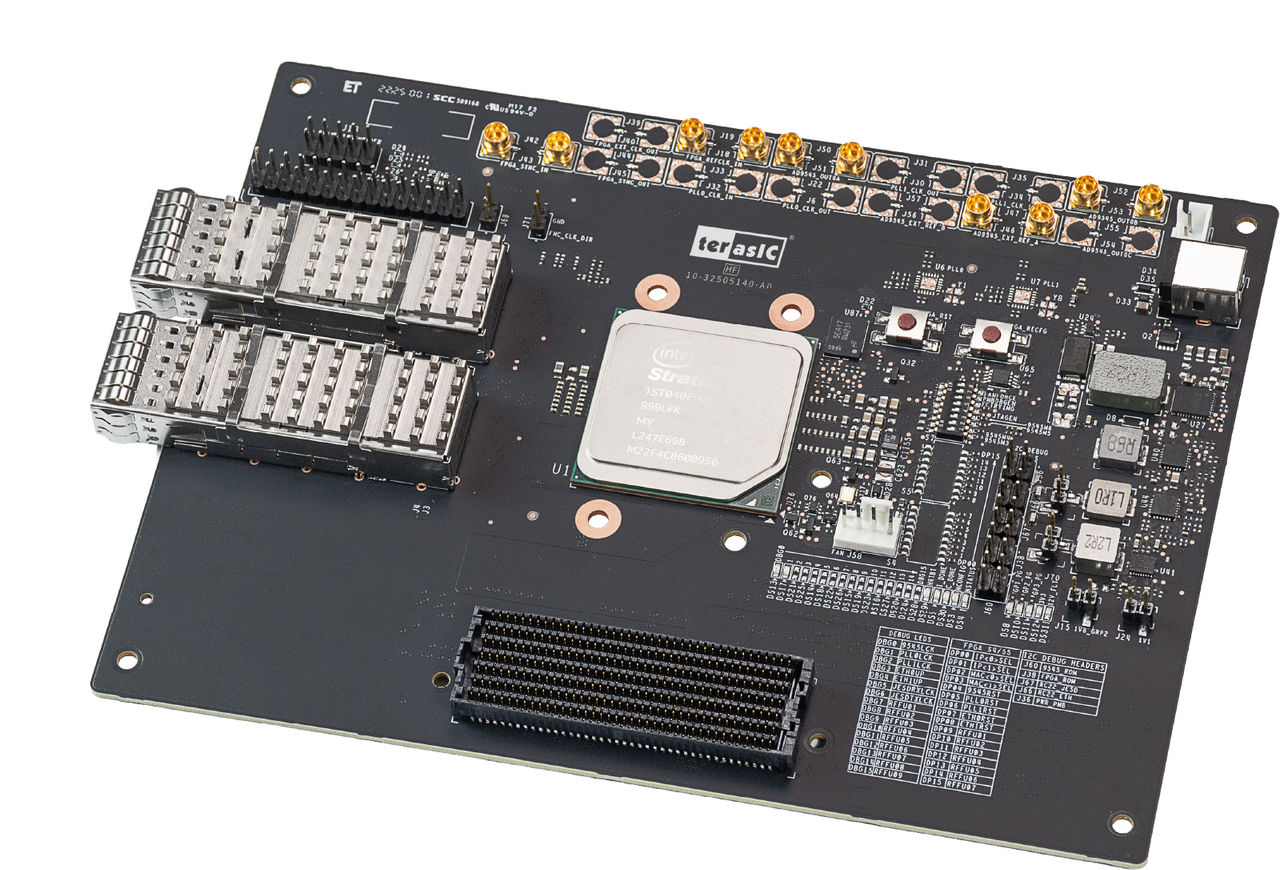

Terasic Stratix 10 Sensor Processing Kit

Overview



The Terasic Stratix 10 Sensor Processing Kit is a high throughput sensor interface platform powered by the Altera Stratix 10 TX FPGA. Built for demanding edge AI vision applications, the kit streams sensor data in real time directly to GPU memory using NVIDIA Hololink IP and GPUDirect RDMA, with dual 100GbE links supporting low latency, high bandwidth transmission over RoCE v2. A VITA 57.4 FMC+ connector allows integration with a wide range of commercially available sensor modules, giving design teams flexibility to evaluate sensors from multiple vendors on a single platform.

Key Features

  • Altera Stratix 10 TX FPGA for high performance transceiver and sensor processing workloads
  • Dual 100GbE links for low latency, high bandwidth data transmission over RoCE v2
  • Real time sensor data streaming directly to GPU memory via NVIDIA Hololink IP and GPUDirect RDMA
  • VITA 57.4 FMC+ connector for integration with commercial sensor modules
  • Support for JESD204C interfacing and high speed DA/AD conversion when paired with a compatible FMC+ sensor module
  • Multiple control interfaces, including SPI and LVDS

Applications

  • Edge AI vision systems requiring the highest bandwidth sensor bridge tier
  • Multi camera and multi sensor arrays feeding GPU based AI inference
  • Radar and lidar sensor fusion at high data rates
  • Any application built on Altera's 100G Holoscan Sensor Bridge reference design

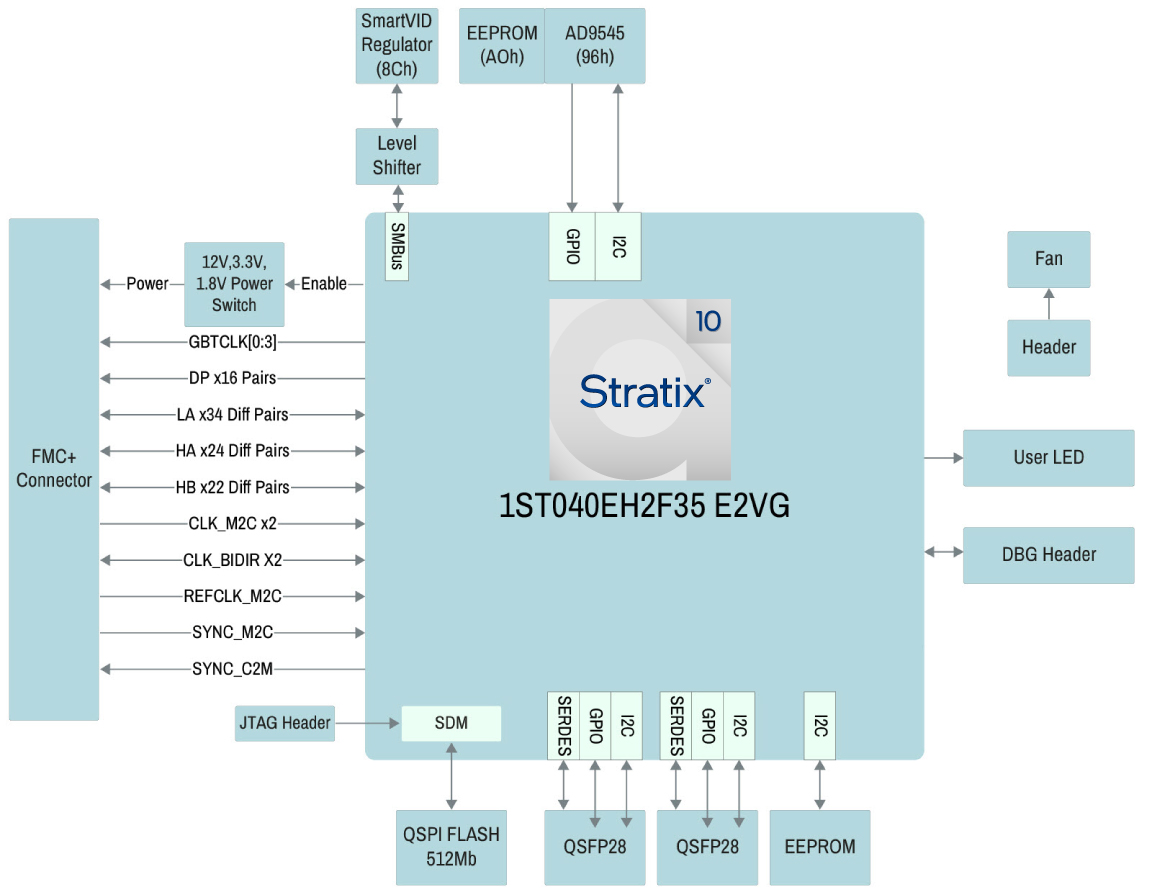

Specifications

Terasic Stratix 10
  • FPGA: Stratix 10 TX FPGA 1ST040EH2F35E2VG
  • Programming/Debug and Configuration
    • 2x5 JTAG Header
    • ASx4 Mode With 512Mbit QSPI Flash
  • Dual QSFP28 Port
  • Clock Synchronizer and Jitter Cleaner AD9545
  • EEPROM
  • SMP Connectors for Clock In/Out
  • Expansion Headers
    • FMC+ Explansion Header, Include 16 Transceriver
    • Debug Header
  • Power: 12V DC Input
