LBoxLS1028A Box PC

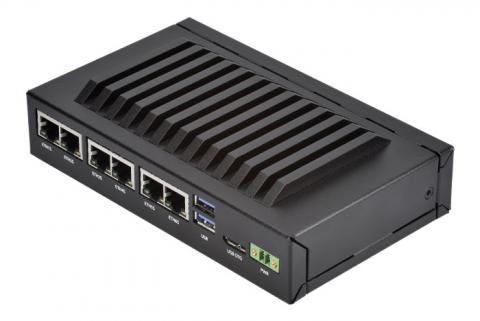

LBoxLS1028A board LBoxLS1028A board

Powered by the Layerscape LS1028A processor for a cost-effective and small solution platform

The LBoxLS1028A is an embedded BoxPC designed as a cost-effective and compact solution platform, featuring a high-speed 4-port TSN Gigabit Ethernet switch to meet real-time requirements. It is powered by the Layerscape LS1028A processor, its features include graphics with 3D GPU and 4K support, an extended temperature range, low power consumption, and safety functions. With extensive memory options, including DDR4-SDRAM and eMMC, this BoxPC offers flexibility and high-performance capabilities. It also includes multiple communication interfaces such as Ethernet, USB, CAN, and SATA, making it suitable for a wide range of applications. The modular design of the LBoxLS1028A allows engineers to integrate and develop custom hardware solutions, making it a versatile choice for embedded computing projects.

Features

  • High-speed 4-port TSN Gigabit Ethernet switch
  • Graphics with 3D GPU and 4K support
  • Wide temperature range
  • Low power consumption
  • Modular and customizable design

Specifications

CPU
  • Layerscape LS1028A

    Layerscape LS1018A

    Layerscape LS1027A

    Layerscape LS1017A

    CPU JTAG interface

Memory

  • DDR4: DDR4-SDRAM: Up to 8 GB

    EEPROM: 0/256 kbit

    Quad SPI NOR: Up to 512 MB

    eMMC: Up to 64 GB

Graphics

  • eDP/DP Phy

Communications Interfaces

  • Ethernet:
    • 1x 4 Port TSN Ethernet Switch up to 1 Gbit



      1x TSN Ethernet 1 Gbit



      1x Ethernet 1 Gbit






    SATA: 1x SATA 3.0 (M.2)

    CAN: 2x CAN

    USB:
    • 1x USB 3.0



      1x USB 3.0 OTG



      USB-Debug (RS232)






Other Interfaces

  • PCIe: 1x SIM Card (mini PCIe)

    SD Card:
    • 1x Micro SD card socket



      1x SDIO/MMC






    SPI: Up to 2x SPI

    I2C: Up to 1x I2C

General

  • Power supply: 16 - 28 V DC

    Temperature sensor

    Temperature range: Extended temperature: -40°C…+70°C

    Dimensions: 170 x 103 x 35 mm

OS
  • Linux

Ordering Information

LBox-LS1028A-AA

  • Prototypes available.
LBox-LS1028A with MBLS1028A-IND-AA, TQMLS1028A, Dual CortexR-A72/1.3 GHz, 64 MB Q-SPI NOR
Flash, 1 GB DDR4, 32-kB EEPROM, -40°C…+70°C, 2x USB 3.0, 1x USB 3.0 OTG, 2x ETH 10/100/1000, 1x 4 Port TSN Switch, 1x eDP, 2x CAN, 1x Mini PCIe (SIM-Card),

    1x SATA M.2, USB-Debug Interface, JTAG RTC, Temperature sensor, Reset-Button, SD-Card interface

LBox-LS1028A-set

  • The LBox-LS1028A set is delivered with the MBLS1028-IND and TQMLS1028A module based on CortexR-A72 CPU from NXP.

    The components contained in the single board computer constitute a modular system enabling you to develop your own product ideas.

TQ Embedded is known for:

  • Precision German engineering, now with a North America presence
    • Robust industrial products with support
  • Widest portfolio of embedded processing architectures: ARM, x86, PowerPC
  • Comprehensive in-house process and facilities for true long-life availability
  • Modules with full signal availability (ALL signals available, not just selective groups)
  • In-house full control: design, manufacturing, specialized adaptations
  • Robust baseboard options, production-ready for mounting their SOM products
