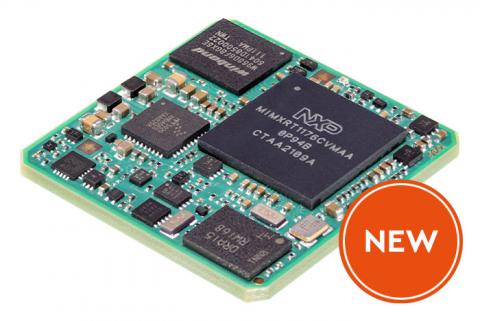

TQMa117xL Embedded Cortex-M7 module

i.MX RT1170 with Real-Time Functionality

The TQMa117xL is an embedded module featuring an Arm Cortex-M7 processor based on the i.MX RT1170 series. It supports high-resolution displays up to WXGA at 60 fps and offers real-time functionality with up to 3 CAN FD interfaces. This module includes integrated security functions and is designed for energy efficiency, consuming only about 1 watt. It provides versatile communication options, including 2 Gbit Ethernet interfaces with TSN/AVB support and 2 USB 2.0 ports.

Features

  • Arm Cortex-M7 processor with up to 1GHz clock speed.
  • Multiple CPU variants to choose from within the i.MX RT1170 series.
  • Support for LP-SDRAM and Quad SPI NOR memory.
  • Rich graphics capabilities with LCD and camera interfaces.
  • Extensive connectivity options, including UART, CAN FD, and USB.
  • Wide temperature range and compact form factor for industrial applications.

Specifications

CPU
  • CPU/Processor: Single Cortex®-M7 - Up to 1GHz
  • CPU variant:
    • i.MX RT1171
    • i.MX RT1172
    • i.MX RT1173
    • i.MX RT1175
    • i.MX RT1176
Memory
  • LP-SDRAM: Up to 64 MB
  • EEPROM: 0/64-kbit
  • Quad SPI NOR: Up to 256 MB
Graphics
  • Graphics: LCD Interface: 1x MIPI DSI (2 Lanes), Parallel LCD
  • Camera: 1x MIPI CSI (2 Lanes)
Communications Interfaces
  • Ethernet:
    • Up to 2x Gbit-Ethernet (1x TSN/1x AVB)
    • 1x Gbit Ethernet, IEEE 1588 Trigger signal
  • Serial Ports: Up to 12x UART
  • CAN: Up to 3x CAN FD
  • USB: Up to 2x USB 2.0
Other Interfaces
  • SD Card: Up to 2x SDIO / eMMC 5.0
  • I2C: Up to 6x I2C
  • SPI:
    • Up to 6x SPI
    • Up to 2x QSPI
  • Audio:
    • Up to 4x SAI
    • Up to 8-ch DMIC
    • Up to 1x SPDIF
  • GPIO: UP to 2x FlexIO
General
  • Plug-in System: LGA (Land Grid Array) 277 pins
  • Power supply: 5 V
  • Dimensions: 31 mm x 31 mm
  • Temperature range:
    • Standard temperature range: -25°C…+85°C
    • Extended temperature: -40°C…+85°C
OS
  • Free RTOS
  • Others on request

Ordering Information

TQMa1171L-AA

  • TQMa1171L-AA, Cortex®-M7/800 MHz, 16 MB NOR Flash, 64 MB LP-SDRAM, 64 kB EEPROM, RTC, -40°C...+85°C

TQMa1173L-AA

  • TQMa1173L-AA, Cortex®-M7/800 MHz, Cortex®-M4/240 MHz, 16 MB NOR Flash, 64 MB LP-SDRAM, 64 kB EEPROM, RTC, -40°C...+85°C

TQMa1176L-AA

  • TQMa1176L-AA, Cortex®-M7/800 MHz, Cortex®-M4/240 MHz, 16 MB NOR Flash, 64 MB LP-SDRAM, 64 kB EEPROM, RTC, -40°C...+85°C

STKa117xL-AA

  • STKa1176L (Eval Kit) with TQMa1176L-AA, Cortex®-M7/1000 MHz, Cortex®-M4/400 MHz, 16 MB NOR Flash, 64 MB SDRAM, 64 kB EEPROM, RTC, 2x USB 2.0 HOST, 2x ETH 10/100/1000, 2x CAN FD, 1x RS485, 1x LVDS or 1x MIPI-DSI, 1x MIPI CSI, 1x Temperature sensor, GPIOs (4x 24V_IN, 4x 24V_OUT, 8x AI_IN), Reset-Button, SD Card interface, WiFi, IoT Mobile Network, Power Supply, 4 GB SD card, Cables

Starterkit STKa117xL set

  • The core of the STKa117xL set is the TQMa117xL module with a Cortex®-M7 CPU. The components contained in the starter kit constitute a modular system enabling you to develop your own product ideas. Development of graphic interfaces can be started immediately using the prepared combination of closed display unit and starter kit that are matched to each other. To develop your own hardware you can use the certified and qualified circuit components of the starter kit in your own designs.Intel® Core™ i3-11100HE (4-Core, 2.4/4.4 GHz, 8 MB, 16 EU, 35/45 W TDP), HM570E, no onboard SSD, TPM 2.0, C-Temp
