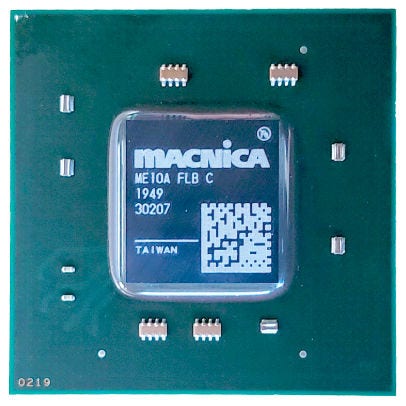

Macnica ME10 - 4K AV Over IP System on Chip

Scalable, Full-Stack AV over IP in a Compact Footprint



The ME10 System on Chip (SoC) delivers a complete AV over IP solution, enabling transport of HDMI 2.0 4K 4:4:4 video, audio, and control over standard 1GbE networks - all within a compact 23 x 23 mm BGA package.



Designed for manufacturers looking to build IPMX-compliant products with minimal engineering effort, it’s ideal for high-volume production and compact design requirements.. It's the flexible, cost-effective choice for integrating open AV standards into your product line.

ME10 is fully aligned with IPMX, the AIMS-developed suite of open standards created specifically for professional AV over IP. IPMX supports:

  • Subframe latency and JPEG-XS compression
  • Resilient network performance
  • USB (HID) and serial extension
  • Device discovery and registration

With ME10, you get an interoperable, standards-based foundation that ensures seamless integration and future-ready performance.



Developer-Friendly with Built-In Tools

ME10 includes JPEG-XS compression for a smooth, high-quality user experience - even in demanding desktop environments. A dedicated development kit, detailed documentation, and responsive support make it easy to evaluate and integrate ME10 into your product designs.



Streamlined Development & Scalable Integration

Whether you're designing a new product or scaling an existing line, ME10 simplifies the process. Meet the demand for open AV over IP standards. With ME10, you’re ready to deliver performance, interoperability, and flexibility – at scale.



Features

  • Low-latency synchronized transport based on AIMS IPMX open standard combining SMPTE ST 2110, AMWA NMOS and JPEG-XS compression standards
  • AES128 Encryption
  • Interfaces:
    • HDMI 2.0 Tx or Rx (unidirectional)
    • RGMII
    • USB 2.0 (encrypted)
    • 2 x UART
    • 2 x I2C
    • microSD Card or eMMC memory
    • 32-bit DDR3
    • Serial FLASH
    • 3 x CLK
  • Package Information
    • 23 x 23 mm Flip-Chip BGA (484 pins)
