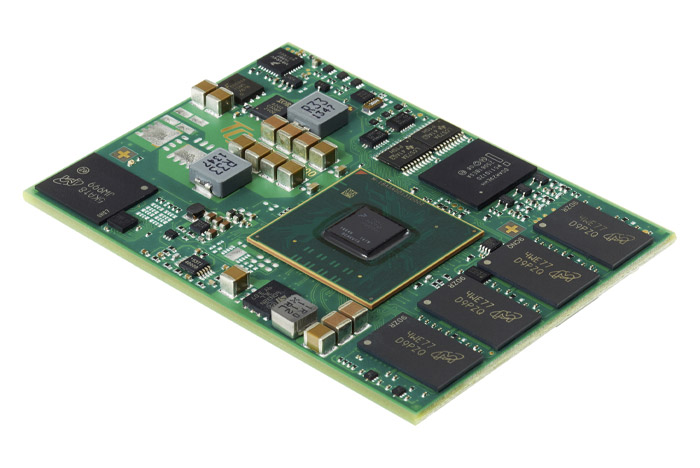

TQMT1022 Embedded Power Architecture® module

Dual Core Power Architecture® module with high I/O connectivity and high computing power with low power consumption

The embedded module TQMT1022 together with the other pin compatible variants of the T-Series modules forms the next generation of the well-known NXP QorIQ® product family TQMP1020/2020. Based on the T-Series processors, new applications are opening up in industrial applications as well as in communication.



Features

  • QorIQ® Dual T1022 Power Architecture®
  • High-speed communication via 5x Gigabit Ethernet, 4x PCle and two USB 2.0 High-speed interfaces
  • Dual SATA interfaces for data storage
  • Quad-core up to 1400 MHz in 28nm SOI for best performance/watt ratio
  • Display interface Unit
  • Simple functional expansion via PCle, eSPI, I²C and IFC (Local Bus)
TQMT1022

Specifications

CPU

CPU/Processor:

  • Dual T1022 Power Architecture® e5500 cores (64bit)
  • CPU JTAG interface
Memory

EEPROM:

  • 32kbit

eMMC:

  • Up to 8 GB (optional)

NOR Flash:

  • Up to 256 MB

DDR3L:

  • Up to 8 GB
Graphics

Graphic interface:

  • Display controller for TFT LCD displays (up to 24-bit RGB)
Communication interfaces

Serial Ports:

  • DUART, max. 115 kBaud (RS232)

Ethernet:

  • 5x Gbit Ethernet (with IEEE® 1588v2)

USB:

  • 2x USB 2.0 High Speed Host/Device/OTG
Other interfaces

SATA:

  • 2x SATA 2.0

GPIO:

  • Up to 32x GPIO

SPI:

  • 1x eSPI Controller

I2C:

  • 4x I²C, max. 400 kHz

PCIe:

  • 4x PCle, 2.0 Controller up to 5.0 Gbit/s according to PCI Express specification 2.0 as Root-Complex or Endpoint
General

Plug-in System:

  • Board-to-Board plug-in system 360 pins

Power supply:

  • 5 V

Power consumption:

  • typ. 5 W up to 7 W

Dimensions:

  • 74 mm x 54 mm

Temperature range:

  • Standard temperature: 0°C - +70°C
  • Extended temperature: -40°C - +85°C

General:

  • Simple expansion for example via MMC/SDHC, USB
  • Real-Time Debug Interface (Aurora)
  • 1x Integrated Flash Controller (IFC), 16-bit
  • 2x TDM (via QUICC Engine)
OS

OS Support:

  • Linux
  • PikeOS™ (on request)





Ordering Information

TQMT1022-AA

TQ Minimodule with T1022 Dual Core CPU with up to 2x 1400 MHz, no Crypto, 2 GB DDR3 SDRAM, 128 MB NOR flash, 32 KB EEPROM, -40°C - +85°C

STKT1022-SET-AA

Starterkit with TQ Minimodule TQMT1022-AA and baseboard STKT104X, Power Supply, Z-Modem cable, module extractor, heat spreader and documentation

Baseboard STKT104X

The baseboard STKT104X supports all modules of the type series TQMT104x and represents an universal platform for evaluation and development of customer specific platforms for those modules

Other configurations on request
