Sony IMX925 & IMX926 Global Shutter Sensors
Bring next‑generation speed and clarity to machine‑vision and 3‑D inspection design‑ins with Sony’s newest Pregius S™ devices - backed by Macnica’s engineering know‑how, evaluation boards, and supply‑chain strength.
Why Design-in with Macnica Americas
- Deep sensor expertise: Our imaging team has qualified and supported every Sony Pregius™ generation, helping OEMs shorten debug cycles and hit image‑quality targets faster.
- Complete solution delivery: From C‑mount reference cameras and FPGA IP cores to custom carrier boards and optics, we supply the pieces that turn a bare die into a shipping product.
- North‑American stocking & logistics: Local inventory and bonded‑stock programs reduce lead‑time risk for production ramps.
- Application engineering on call: Need SLVS‑EC™ interface tuning, thermal modelling or pixel‑pipeline advice? Macnica’s FAEs work side‑by‑side with your designers.
Performance Highlights
| Key Capability | IMX925/935 (Type 1.2, 24.55 MP) | IMX926 / 936 (Type 1/1.1, 12.41 MP) |
|---|---|---|
| Pixel size | 2.74 µm back illuminated Pregius S™ | 2.74 µm back illuminated Pregius S™ |
| Max frame rate (10 bit, all pixels) | 394 fps | 200 fps |
| Interface | SLVS-EC up to 12.5 Gb/s/lane | SLVS-EC up to 12.5 Gb/s/lane |
| In-sensor features | 1 shot HDR, multi mode binning, single color subsampling* | 1 shot HDR, multi mode binning, single color subsampling* |
| Lens mount | C-mount compatible | C-mount compatible |
*See full specifications below

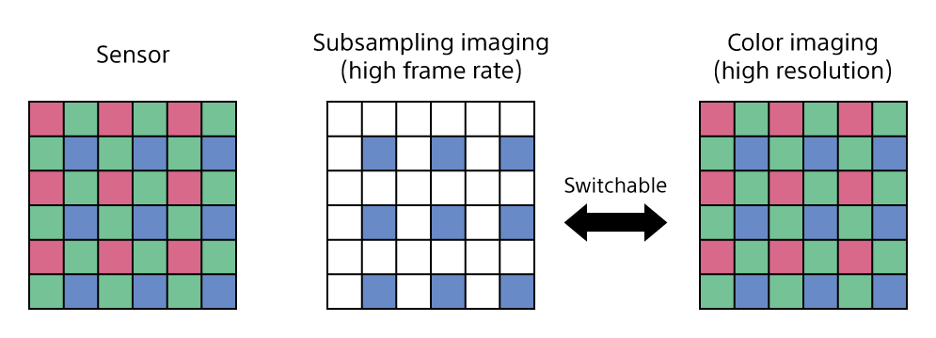

Subsampling a specific color
For readouts, these sensors are able to subsample and read out pixels of a specific color, among blue, red, and green. This makes it possible to switch between subsampling imaging and full-pixel imaging, delivering both color imaging and wavelength-specific irradiation pattern imaging with just one sensor.
What that means for you
- Capture 24.5 MP @ 394 fps or 12.4 MP @ 200 fps to accelerate electronics AOI, robotic pick‑and‑place guidance, or sports volumetric capture.
- Global shutter plus 2.7‑µm pixels deliver distortion‑free images while keeping optics compact and affordable.
- SLVS‑EC reduces lane count, opening up lower‑cost FPGAs and simpler cable assemblies.
- Built‑in HDR and flexible binning let one camera tackle glossy metals, dark elastomers, and low‑light scenes without mechanical exposure changes.
Typical Applications
2D/3D AOI (Automated Optical Inspection)
As factories embrace automation, 2D/3D AOI plays a pivotal role in ensuring quality across manufacturing lines. The IMX925 series, with its 24.5 MP and 12.4 MP resolutions and fast frame rates, enhances precision and speed in capturing moving objects for critical inspections, particularly in high-volume production like electronics.
Laser triangulation and structured light profilers
The IMX925 excels in non-contact laser-cutting inspections by capturing high-speed, distortion-free images. Its advanced sensitivity boosts 3D sensing accuracy in challenging environments, while compatibility with C-mount lenses reduces costs and enables compact camera designs.

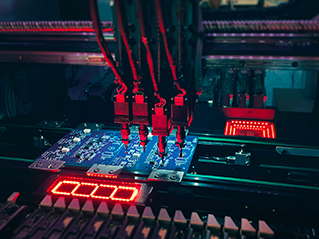

Pick and place vision for SMT and micro assembly lines
IMX925/926 capture distortion‑free, 2.74 µm‑pixel images at up to 394 fps, letting pick‑and‑place heads verify component orientation between moves. SLVS‑EC eases FPGA wiring, while on‑sensor HDR tames glossy solder pads, boosting throughput and placement yields.
Volumetric sports tech stages & motion analysis systems
The IMX925 is transforming sports tech through its ability to capture fast-moving subjects in high resolution with zero motion blur. This makes it perfect for creating lifelike 3D models, enhancing athlete performance analysis, and delivering immersive visualizations. From industrial inspection to sports innovation, the IMX925 sets a new benchmark for speed, precision, and adaptability.

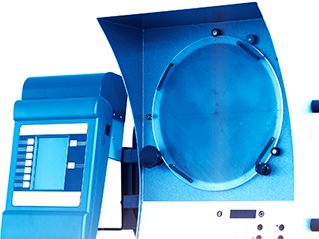

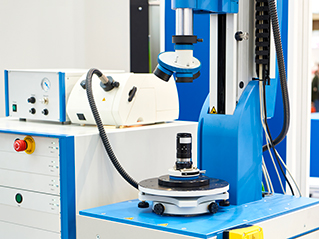

Metrology and lab automation platforms
Ultra‑low‑noise Pregius S™ pixels resolve micron‑level edges, and global shutter eliminates stage‑motion blur, enabling faster CMM scans and real‑time lab workflows. High frame rates drive closed‑loop algorithms, accelerating measurements and freeing capacity for complex multi‑axis metrology tasks.
Complete Specifications
| Model Name | IMX925 AMJ/AQJ | IMX935 AMJ/AQJ | IMX926 AMJ/AQJ | IMX936 AMJ/AQJ |
|---|---|---|---|---|
| Image size | Diagonal 19.3 mm (Type 1.2) | Diagonal 14.0 mm (Type 1/1.1) | ||
| Effective pixels | 5328 (H) × 4608 (V) – approx. 24.55 MP | 4128 (H) × 3008 (V) – approx. 12.41 MP | ||
| Unit cell size | 2.74 µm (H) × 2.74 µm (V) | |||
| Frame rate (all pixel readout) | 8-bit 442 fps* / 10-bit 394 fps* / 12-bit 212 fps* | 8-bit 225 fps* / 10-bit 200 fps* / 12-bit 107 fps* | 8-bit 660 fps* / 10-bit 588 fps* / 12-bit 318 fps* | 8-bit 339 fps* / 10-bit 302 fps* / 12-bit 162 fps* |
| Input drive frequency | 37.125 MHz / 74.25 MHz | |||
| Power supply | 1.1 V, 1.8 V, 2.9 V, 3.3 V | |||
| Shutter mode | Global shutter | |||
| Output interface | SLVS-EC 8 × 2 / 6 × 2 / 4 × 2 lanes; 8 / 6 / 4 / 2 / 1 lane | SLVS-EC 8 / 6 / 4 / 2 / 1 lane | SLVS-EC 8 × 2 / 6 × 2 / 4 × 2 lanes; 8 / 6 / 4 / 2 / 1 lane | SLVS EC 8 / 6 / 4 / 2 / 1 lane |
| Filter options | Monochrome / Bayer | |||
| Package | Ceramic LGA, 24.5 mm × 21.4 mm | |||
* TBD values for sensors still under development
Get Started Today
Ready to evaluate the IMX925 or IMX926 in your next vision system?
Contact Macnica Americas for demo kits, reference designs, and volume pricing - and put Sony’s best‑in‑class global‑shutter technology to work with the design support you can only get from Macnica.
