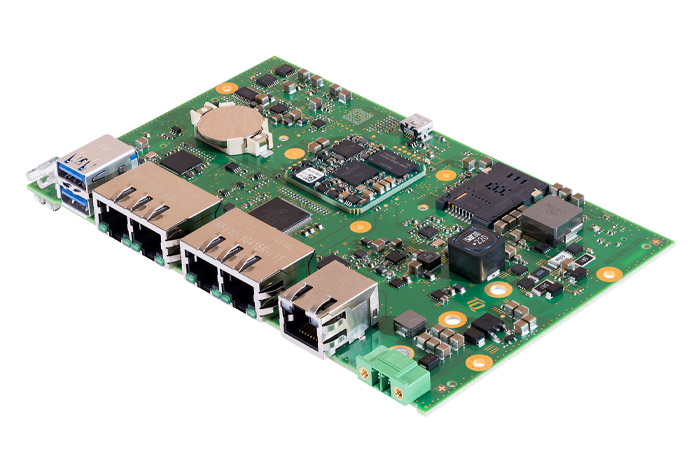

MBLS1012AL Single Board Computer

Single Board Computer (SBC) based on TQMLS102AL

This single board computer is based on the CPU module TQMLS1012A. The Layerscape processor LS1012A combines the 64Bit ARM core architecture with the QorIQ high-speed communication technology. This platform is suitable for various applications such as networks, industrial automation, IoT gateways and controllers and meets the requirements for reliable, fast and secure data processing. The 2x Mini PCIe platform can be extended to use wireless solutions based on UMTS/GPRS, WiFi and LoRa Wan.



Features

MBLS1012AL
  • Arm® Cortex® A53-based on LS1012A
  • Packet Acceleration Engine
  • Low power consumption (typ. 1-2 W)
  • High-speed communication via 2x Gigabit Ethernet, 1x PCle, 1x USB 3.0 and 1x SATA 3.0 interface
  • Extended temperature range
  • QorIQ Trust Architecture and Arm® TrustZone

Specifications

CPU

CPU/Processor:

  • Single Cortex®-A53 - Up to 1GHz

CPU variant:

  • LS1012A
Memory

DDR3L:

  • Up to 1 GB

Quad SPI NOR:

  • Up to 256 MB

EEPROM:

  • 0/64-kbit
Communications Interfaces

Serial Ports:

  • Up to 1x UART

USB:

  • 2x USB 3.0
  • USB-Debug (RS232)

Ethernet:

  • 1x Ethernet 10/100/1000 Mbit
  • 4x Ethernet 10/100/1000Mbit (Ethernet Switch)
Other Interfaces

GPIO:

  • Up to 5x GPIO

I2C:

  • Up to 1x I2C

SATA:

  • 1x SATA 3.0 (M.2)

SD Card:

  • 1x SD-Card

PCIe:

  • 2x Mini PCIe (1x only USB, SIM-Card)

Debug:

  • JTAG
General

Dimensions:

  • 160 x 100 mm

Power supply:

  • 16 - 28 V DC

Temperature range:

  • Standard temperature range: -25°C - +70°C
  • Extended temperature: -40°C - +70°C

General:

  • Temperature sensor
OS

OS Support:

  • Linux





Ordering Information

MBLS1012AL-AA

MBLS1012AL-AA ,TQMLS1012A, Cortex®-A53/800 MHz, 64 MB Q-SPI NOR Flash, 512 MB DDR3L, 64-kB EEPROM, -25°C - +70°C, 2x USB 3.0, 5x ETH 10/100/1000, 2x Mini PCIe (1x only USB, SIM-Card), 1x SATA M.2, USB – Debug Interface, JTAG RTC, Temperature sensor, Reset-Button, SD-Card interface

Starterkit STKLS102x set

The MBLS1012AL set is delivered with the TQMLS1012AL module with a Cortex®-A53 CPU from NXP. The components contained in the single board computer constitute a modular system enabling you to develop your own product ideas. To develop your own hardware you can use the certified and qualified circuit components of this platform in your own designs. For this platform, there is also a housing solution available to enable use as a complete system.

MBLS1012AL-AA

Single Board Computer with:

TQMLS1012AL-AA with Encryption Cortex A53 / 1000 MHz, 64MB NOR Flash, 512 MB DDR3L, 64kB EEPROM, RTC

Mainboard Features:

2x USB 3.0, 1x USB OTG

5x ETH 10/100,1000 (4x via Switch)

2x Mini PCIe (1x only USB / 1x SIM Card )

USB –Debug Interface, Reset-Button, Status LED

SD-Card interface -25°C - +70°C

Other configurations on request





TQ Embedded is known for:

  • Precision German engineering, now with a North America presence
    • Robust industrial products with support
  • Widest portfolio of embedded processing architectures: ARM, x86, PowerPC
  • Comprehensive in-house process and facilities for true long-life availability
  • Modules with full signal availability (ALL signals available, not just selective groups)
  • In-house full control: design, manufacturing, specialized adaptations
  • Robust baseboard options, production-ready for mounting their SOM products
