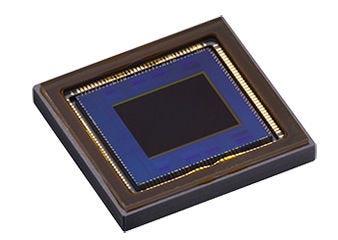

Canon LI5040 5.33M Global Shutter CMOS Sensor
- LI5040 Video
- LI5040 Image
Capture Everything with The Compact LI5040
The Canon LI5040 CMOS Sensor offers 5.33M pixels. It’s square 3.4µm x 3.4µm pixel arrangement and 2/3” frame achieves high resolution, allowing you to capture everything you need in a compact design. Find out how you can make your machine vision project a success with the LI5040 from Canon.
An Industry-Leading CMOS Sensor
The 5040 is equipped with global shutter and a sensor size of 8.8 x 7.0 mm. It offers enhanced NIR sensitivity. It also provides lightning-fast frame rates of 120 fps and is available in three color options: RGB, Mono, and RGB-NIR.

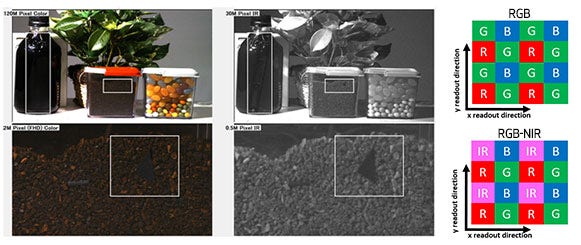

Specialized RGB-NIR Pixel Filter Array
By replacing one of the green filters on a standard color CMOS sensor with a Near Infra-Red (NIR) filter, image processing from this sensor allows for the separation of visible and NIR spectrums. Discrete analysis of these bands from a single image simplifies dual sensor systems by reducing size, weight, and power (SWaP) requirements, provides added capabilities to systems that can benefit from the additional band, and enhances current solutions already detecting in both the NIR and visible wavelengths such as precision agriculture with the benefit of 120 MP resolution.
Technical Specifications
Technical Specifications
| LI5040SAC | LI5040SAM | LI5040SAI | |
|---|---|---|---|
| Filter Type | RGB | Monochrome | RGB-NIR |
| Sensitivity [e/lx/sec] | 30,000 | 54,000 | 30,000 |
| Resolution | 5.33 MP | ||
| Pixel count | 2592 x 2056 | ||
| Pixel pitch | 3.4 μm | ||
| Sensor Size | 2/3 inch (8.8 x 7.0 mm) | ||
| Shutter Type | Global | ||
| Enhanced NIR sensitivity | Yes | ||
| Frame rate | 120 fps | ||
