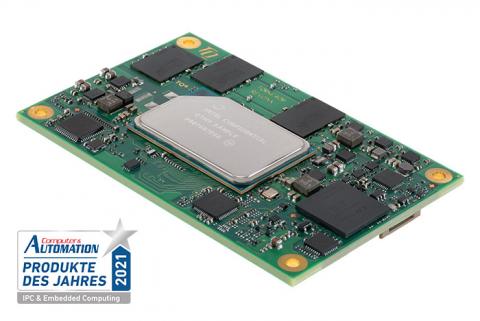

TQMxE40M COM Express® Mini Module (Type 10)

Intel Atom® x6000 Series, Pentium® and Celeron® Processors of 6th Generation ("Elkhart Lake")

The COM Express® Mini Type 10 Module TQMxE40M, featuring 6th Generation Intel Atom® x6000 series processors, offers a powerful and versatile computing solution for various applications. With dual/quad-core processing power that can reach up to 2.9 GHz, this module delivers impressive performance. It supports up to 16 GB of LPDDR4 memory with optional in-band ECC, ensuring data integrity.



In terms of connectivity, the module provides 1x Gbit Ethernet, 2x USB 3.1 (Gen2), and 8x USB 2.0 ports, along with up to 4 PCIe lanes (Gen3). It also offers dual display support with options for DP (4K), eDP (4K), or LVDS (Single Channel). The module comes with up to 256 GB of soldered eMMC Flash storage, making it suitable for a wide range of storage-intensive applications.



One of the module's standout features is its extended temperature support, ranging from -40°C to +85°C, ensuring reliability in harsh environments. It caters to applications in industrial automation, aviation, medical technology, and more.



The TQMxE40M COM Express Mini Type 10 Module is designed with flexibility in mind, offering options for eMMC flash memory, display interfaces, and additional functions. Its low power dissipation, compact COM Express Mini form factor (84 mm x 55 mm), and enhanced graphics and image processing capabilities make it a compelling choice for demanding tasks.



With features like PCIe Gen 4 lanes, Intel graphics processor, and support for real-time applications, this module is poised to excel in fields like gaming, machine vision, virtual reality, and industrial automation, where high-performance computing is essential. It also supports AI and image processing tasks efficiently, thanks to its vector neural networks instruction set (VNNI).

Features

  • Powerful Processing: 6th Generation Intel Atom® x6000 series processors deliver dual/quad-core computing power with clock speeds of up to 2.9 GHz

  • Memory and Storage Flexibility: 16 GB of LPDDR4 memory with optional in-band ECC for data integrity. Offers up to 256 GB of soldered eMMC Flash storage for efficient data handling.

  • Versatile Connectivity: Provides 1x Gbit Ethernet, 2x USB 3.1 (Gen2), 8x USB 2.0 ports, and up to 4 PCIe lanes (Gen3) for high-speed data transfer and peripheral connections.

  • Extended Temperature Range: Operate reliably in extreme conditions with a temperature range from -40°C to +85°C, ensuring suitability for rugged industrial environments.

  • Compact Form Factor: Features a compact COM Express Mini form factor (84 mm x 55 mm), making it space-efficient and adaptable for various embedded applications.

Specifications

CPU
  • Intel Atom® x6211E (2-Core, 1.3/3.0 GHz, 1.5 MB, 16 EU, Turbo, 6 W TDP)
  • Intel Atom® x6413E (4-Core, 1.5/3.0 GHz, 1.5 MB, 16 EU, Turbo, 9 W TDP)
  • Intel Atom® x6425E (4-Core, 2.0/3.0 GHz, 1.5 MB, 32 EU, Turbo, 12 W TDP)
  • Intel Atom® x6212RE (2-Core, 1.2 GHz, 1.5 MB, 16 EU, 24/7, RT, 6 W TDP)
  • Intel Atom® x6414RE (4-Core, 1.5 GHz, 1.5 MB, 16 EU, 24/7, RT, 9 W TDP)
  • Intel Atom® x6425RE (4-Core, 1.9 GHz, 1.5 MB, 32 EU, 24/7, RT, 12 W TDP)
  • Intel® Pentium® and Celeron® N and J Series processors on request
Memory
  • LPDDR4X - 4, 8, 16 GB with IBECC
  • EEPROM - 32kbit
  • eMMC - 8-256 GB
Graphics
  • 1x eDP (4K @ 60 Hz) or Single Channel, LVDS (18/24 bit)
  • 1x Digital Display Interface (DDI) for DP (4K @ 60 Hz)
Communications Interfaces
  • Ethernet - 1x Gbit Ethernet, IEEE 1588 Trigger signal
  • USB - 2x  USB 3.1 (Gen2) 8x USB 2.0
  • SATA - 2x  SATA 3.0 (up to 6 Gb/s)
  • Serial Ports - 2x Rx/Tx, 2x RTX/CTS
Other Interfaces
  • PCIe - 4x PCIe 3.0 (up to 8 Gb/s)
  • LPC - LPC/eSPI
  • I2C
  • SMBus
  • SPI - SPI (for external UEFI BIOS flash)
  • Audio - 1x Intel® HD audio (HDA)
  • SD Card - 1x SD card/8x GPIO
General
  • Dimensions - 84mm x 55mm
  • Plug-in System - COM Express™ Mini, type 10
  • Temperature range - Extended temperature: -40°C…+85°C Standard temperature: 0°C…+60°C
  • Power supply - 4.75 V - 20 V / Standby Voltage: 4.75 V - 5.25 V / RTC Battery Voltage: 3 V / Power: typ. 3 - 8 W/max. 14 W / (Green ECO-Off: < 0.1 W)
  • Power consumption - 3 - 8 W/max. 14 W (Green ECO-Off: < 0.1 W)

Ordering Information

TQMxE40M-AA

  • Intel Atom® x6425RE, 8GB LPDDR4x, 32GB eMMC, eDP, TPM 2.0, -40°C...+85°C

TQMxE40M-AB

  • Intel Atom® x6414RE, 8GB LPDDR4x, 32GB eMMC, LVDS, TPM 2.0, -40°C...+85°C

TQMxE40M-AC

  • Intel Atom® x6212RE, 4GB LPDDR4x, 16GB eMMC, eDP, TPM 2.0, -40°C...+85°C

TQMxE40M-AD

  • Intel Atom® x6425E, 16GB LPDDR4x, 0 eMMC, LVDS, TPM 2.0, -40°C...+85°C

TQMxE40M-AE

  • Intel Atom® x6413E, 8GB LPDDR4x, 0 eMMC, eDP, TPM 2.0, -40°C...+85°C

TQMxE40M-AF

  • Intel Atom® x6211E, 8GB LPDDR4x, 32GB eMMC, LVDS, TPM 2.0, -40°C...+85°C
