Canon LI8030SA 410MP Ultra-High Resolution CMOS Sensor

LI8030SA, a Solid-State Imaging Sensor With 410 Million Effective Pixels (In Development)

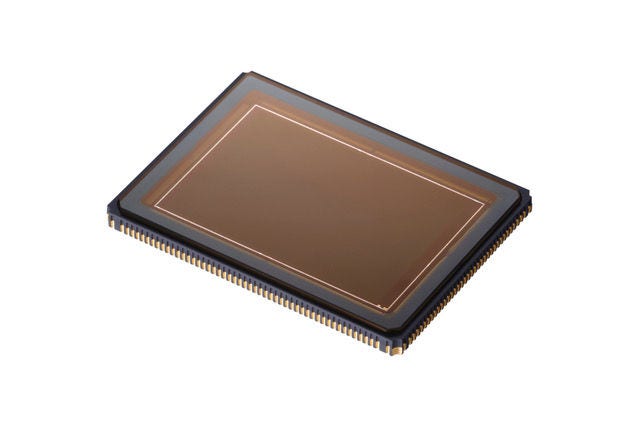

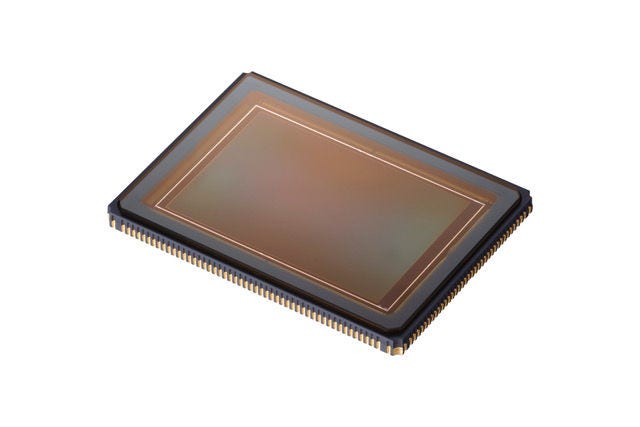

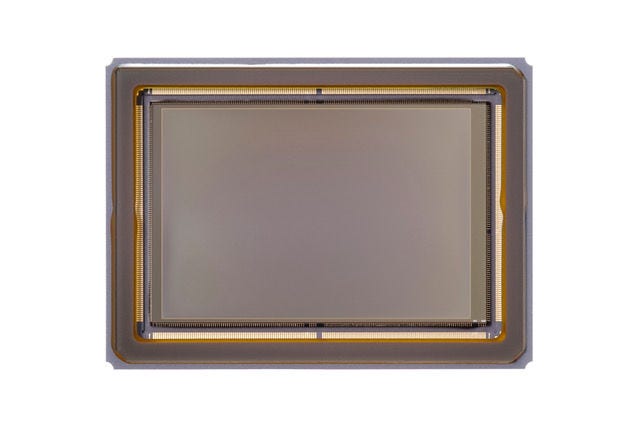

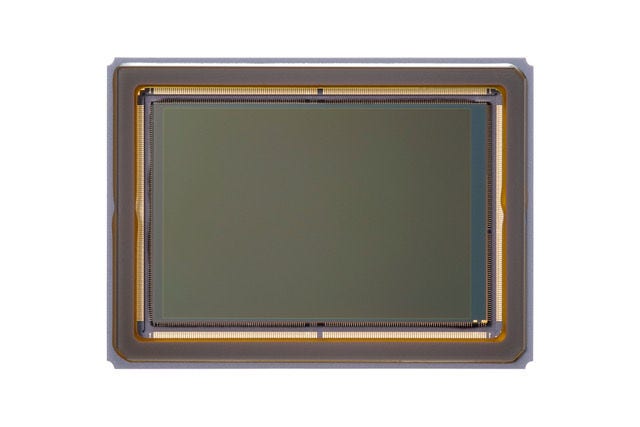

LI8030SA is a CMOS type solid-state imaging sensor having a size equivalent to full size 35mm, and a square pixel arrangement of 1.5μm with 410 million effective pixels. LI8030SA captures stunning detail 198 times greater than full high-definition resolution and 49 times that of 4K resolution. The LI8030SA series consists of LI8030SAM (monochrome) and LI8030SAC (color). This newly developed sensor employs a back-illuminated stacked formation in which the pixel segment and signal processing segment are interlayered and also includes a redesigned circuitry pattern. As a result, the sensor is capable of achieving a super-high readout speed of 3,280 megapixels per second, delivering video at 8 frames per second. The LI8030SAM (monochrome) sensor supports a binning readout function of 4 pixels that can achieve 24fps with 100 million pixels.
