TQMa8MPxS Embedded Cortex®-A53 module

SMARC 2.1 Embedded Cortex®-A53 module based on i.MX 8M Plus with Machine Learning Accelerator

The TQMa8MPxS based on the i.MX 8M Plus supports with many features and an integrated NPU (Neural Processor Unit) with up to 2.3 TOPS and an IPU (Image Processor Unit) with 2x 187 MPix in the implementation of applications where artificial intelligence, machine learning/vision is to be applied. A GPU and several graphic interfaces are available for graphically demanding applications. For real-time and security the CPU is supported by a Cortex M7 controller.



Features

  • Arm® Cortex® A53 based on i.MX 8M Plus
  • Advanced Audio properties with HiFi4 DSP
  • Machine Learning Accelerator 2.3 TOPS
  • Integrated Cortex®-M7
  • High-speed communication via 2x Gbit Ethernet (1x TSN), 1x PCle and 2x USB 3.0 interface
  • Low power consumption (typ. 4 W)
  • Integrated security functions

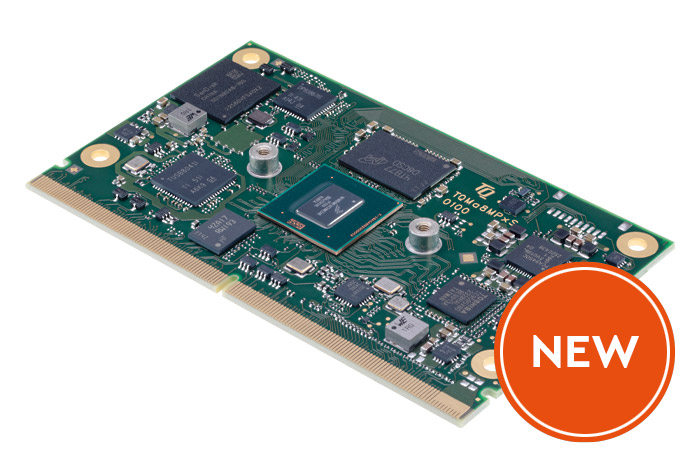

TQMa8MPxS - New

Specifications

CPU

CPU/Processor:

  • Cortex®-A53 - Up to 1.8GHz

CPU variant:

  • i.MX 8M Plus Quad 8 ML/AI
  • i.MX 8M Plus Quad 6 Video
  • i.MX 8M Plus Quad 4 Lite
Memory

LPDDR4:

  • Up to 8 GB

Quad SPI NOR:

  • Up to 256 MB (TBD)

eMMC:

  • Up to 256 GB

EEPROM:

  • 0 / 64-kbit
Graphics

Graphic interface:

  • 1x HDMI, 1x eDP (optional)
  • 1x LVDS (4/8 Lanes or 2x 4 Lanes)

Camera interface:

  • 2x MIPI CSI2 (1x4 Lanes / 1x2 Lanes)
Communications Interfaces

Ethernet:

  • Up to 2x Gbit-Ethernet (1x TSN)

USB:

  • Up to 2x USB 3.0
  • Up to 4x USB 2.0 (USB Hub)
  • Up to 1x USB 2.0 OTG interface

CAN:

  • Up to 2x CAN FD

Serial Ports:

  • Up to 4x UART
Other Interfaces

SD Card:

  • Up to 1x SDIO / eMMC

PCIe:

  • Up to 1x PCIe 2.0

I2C:

  • Up to 2x I2C

SPI:

  • Up to 1x SPI
  • Up to 1x QSPI

I2S:

  • Up to 2x I2S

GPIO:

  • 14x GPIO

Debug:

  • JTAG
General

Dimensions:

  • 82 mm x 50 mm

Temperature range:

  • Standard temperature range: -25°C - +85°C
  • Extended temperature range: -40°C - +85°C

Power supply:

  • 3.0 V - 5.25 V (5V optional)

Plug-in System:

  • SMARC 2.0/2.1 Board-to-board plug-in system 314 pins
OS

OS Support:

  • Linux (Yocto/Armbian)
  • Android on request
  • PikeOS™ (on request)





Ordering Information

TQMa8MPDS-AA

TQMa8MPDS-AA, Dual 3 ML/AI Cortex®-A53/1,6 GHz, 16 GB eMMC Flash, 2GB LPDDR4, 64 kB EEPROM, RTC, with LVDS, -25°C - +85°C

TQMa8MPQS-AA

TQMa8MPQS-AA, Quad 6 Video Cortex®-A53/1,6 GHz, 16 GB eMMC Flash, 2GB LPDDR4, 64 kB EEPROM, RTC, with LVDS, -25°C - +85°C

TQMa8MPQS-AB

TQMa8MPQS-AB, Quad 8 ML/AI Cortex®-A53/1,6 GHz, 16 GB eMMC Flash, 2GB LPDDR4, 64 kB EEPROM, with LVDS, RTC, -25°C - +85°C

TQMa8MPQS-AC

TQMa8MPQS-AC, Quad 8 ML/AI Cortex®-A53/1,6 GHz, 16 GB eMMC Flash, 2GB LPDDR4, 64 kB EEPROM, with eDP, RTC, -25°C - +85°C

STKa8MPxS-AA (Prototypes Q2/2025)

STKa8MPxS (Eval Kit) with TQMa8MPxS-AA, Quad Cortex® A53/1,6 GHz 2 GB LPDDR4, 16 GB eMMC Flash, 64 kB EEPROM, RTC, 3x RS232, 2 x CAN FD separated, 1x USB 3.0 OTG, 1x USB 3.0 HOST, 1x USB 2.0 HOST, 2x ETH 10/100/1000, 1x Display Port, 1x HDMI, 1x Dual LVDS, 1x PCIe, Audio, RTC, Temperature sensor, Reset-Button, SD interface, Power Supply, 4 GB SD card, Cables, passive Cooling

Other configurations on request
