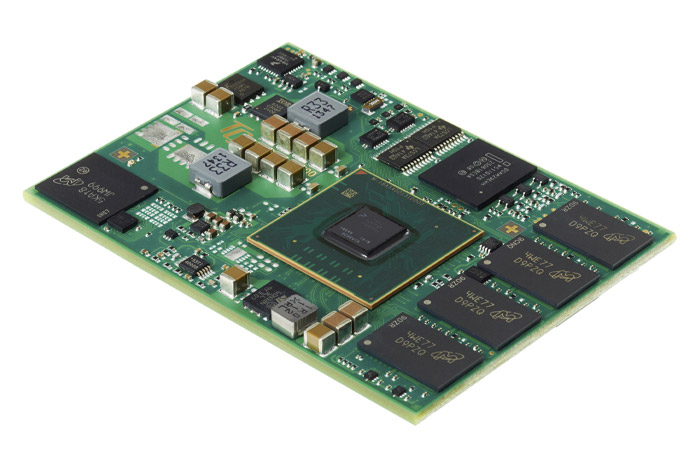

TQMT1040 Embedded Power Architecture® module

Power Architecture® Module with QorIQ® T1040 processor by NXP

The embedded module TQMT1040 together with the other pin compatible variants of the T-Series modules forms the next generation of the well-known NXP QorIQ® product family TQMP1020/2020. Based on the T-Series processors, new applications are opening up in industrial applications as well as in communication.



Features

  • QorIQ® Quad T1040 Power Architecture®
  • Quad-core up to 1400 MHz in 28nm SOI for best performance/watt ratio
  • Simple functional expansion via PCle, eSPI, I²C and local bus
  • High-speed communication through a combination of up to 4x Gigabit Ethernet and integrated 8-port switch, 4x PCle and two USB 2.0 interfaces
  • Dual SATA interfaces for data storage
  • IEEE 1588 Time synchronization in hardware
  • Extremely compact module dimensions
TQMT1022

Specifications

CPU

CPU/Processor:

  • Quad T1040 Power Architecture® e5500 cores (64-bit)
Memory

EEPROM:

  • 32kbit

NOR Flash:

  • Up to 256 MB

DDR3L:

  • Up to 8 GB
Other interfaces

SPI:

  • 1x eSPI Controller

GPIO:

  • Up to 32x GPIO

I2C:

  • 4x I²C, max. 400 kHz

SATA:

  • 2x SATA 2.0
General

Dimensions:

  • 74 mm x 54 mm

Plug-in System:

  • Board-to-Board plug-in system 360 pins

Power supply:

  • 5 V

Temperature range:

  • Standard temperature: 0°C - +70°C
  • Extended temperature: -40°C - +85°C

Power consumption:

  • typ. 7 W up to 9 W
OS

OS Support:

  • Linux
  • PikeOS™ (on request)





Ordering Information

TQMT1040-BA

TQ Minimodule with T1040 Quad Core CPU with up to 4x 1200 MHz, Crypto, 2 GB DDR3 SDRAM, 128 MB NOR flash, 32 KB EEPROM, -40°C - +85°C

STKT1040-SET-BA

Starter kit with TQ Minimodule TQMT1040-Band baseboard STKT104X, Power Supply, Z-Modem cable, module extractor, heat spreader and documentation

Baseboard STKT104X

The baseboard STKT104X supports all modules of the type series TQMT104x and represents an universal platform for evaluation and development of customer specific platforms for those modules

Other configurations on request
