TQMa95xxLA Embedded Cortex®-A53 module

Embedded Cortex®-A55 Module based on i.MX 95 with Machine Learning Accelerator

The TQMa95xxLA based on the i.MX 95 supports with many features and an integrated NPU (Neural Processor Unit) with up to 2 TOPS and an IPU (Image Processor Unit) in the implementation of applications where artificial intelligence, machine learning/vision is to be applied. A GPU and several graphic interfaces are available for graphically demanding applications. For real-time and security the CPU is supported by a Cortex® M33 and Cortex® M7 controller.



Features

  • Arm® Cortex® A55 based on i.MX 95
  • Machine Learning Accelerator 2 TOPS
  • Integrated Cortex® M33 and M7
  • High-speed communication via 1x 10 Gbit and 2x Gbit Ethernet (1x TSN), 2x PCIe and 1x USB 3.0 interface
  • MIPI CSI with ISP support
  • Low power consumption (typ. 6 W)
  • Integrated security functions

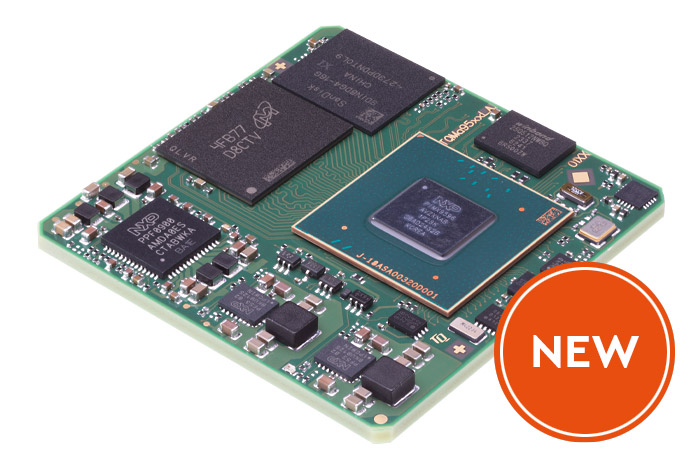

TQMa95xxLA - New

Specifications

CPU

CPU/Processor:

  • Cortex®-A55 - Up to 2.0GHz

CPU variant:

  • i.MX 95 Dual
  • i.MX 95 Quad
  • i.MX 95 Hexa
Memory

LPDDR5:

  • Up to 16 GB

Quad SPI NOR:

  • Up to 256 MB

eMMC:

  • Up to 256 GB

EEPROM:

  • 0/64-kbit
Graphics

Graphic interface:

  • Up to 1x MIPI DSI (4-lanes)
  • 2x LVDS (4 Lanes)

Camera interface:

  • Up to 2x MIPI CSI2 (4-lanes)
Communications Interfaces

Ethernet:

  • Up to 2x Gbit-Ethernet (1x TSN)
  • Up to 1x 10 Gbit-Ethernet

USB:

  • Up to 1x USB 3.0
  • 1x USB 2.0

CAN:

  • Up to 5x CAN FD

Serial Ports:

  • Up to 8x UART
Other Interfaces

SD Card:

  • Up to 3x SDIO / eMMC

PCIe:

  • Up to 2x PCIe 3.0

I2C:

  • Up to 8x I2C

SPI:

  • Up to 8x SPI
  • Up to 2x QSPI

Audio:

  • Up to 5x I2S
  • Up to 4x PDM Mic.
  • Up to 1x SP/DIF
  • Up to 1x eARC

Debug:

  • JTAG
General

Dimensions:

  • 44 mm x 44 mm

Power supply:

  • 5 V

Temperature range:

  • Standard temperature range: -25°C - +85°C
  • Extended temperature range: -40°C - +85°C

Plug-in System:

  • 346 pins LGA 1.9mm Pitch
OS

OS Support:

  • Linux





Ordering Information

TQMa9554LA-AA

TQMa9554LA-AA, Quad Cortex®-A55 with NPU/1.8 GHz, 16 GB eMMC Flash, 4 GB LPDDR5, 64 kB EEPROM, RTC, -25°C - +85°C

TQMa9556LA-AA

TQMa9556LA-AA, Hexa Cortex®-A55 with NPU/1.8 GHz, 16 GB eMMC Flash, 4 GB LPDDR5, 64 kB EEPROM, RTC, -25°C - +85°C

TQMa9596LA-AA

TQMa9596LA-AA, Hexa Cortex®-A55 with NPU + ISP /1.8 GHz, 16 GB eMMC Flash, 4 GB LPDDR5, 64 kB EEPROM, RTC, -25°C - +85°C

STKa95xxLA-AA

STKa95xxLA-AA STKa95xxLA (Eval Kit) with TQMa9596LA-AA, Hexa Cortex A55 with NPU + ISP /1.8 GHz, 4 GB LPDDR5, 16 GB eMMC Flash, 64 kB EEPROM, RTC, 2x USB 3.0 Host, 1x USB Type C, 2x ETH 10/100/1000, 1x 10Gbit Ethernet (SFP+), 2x CAN FD, 1x RS485, 2x LVDS, 1x MIPI CSI, 1x MIPI DSI/CSI, 2x M.2 (1x Key E, 1x Key +SIM), 4x Digital In / Out 24V, 2x Analog In, Audio, Temperature sensor, Reset-Button, SD Card interface, Power Supply, 8 GB SD card, Cables

Starterkit STKa95xxLA set

The core of the STKa95xxLA set is the TQMa95xxLA module with a Quad Cortex®-A55 CPU. The components contained in the starter kit constitute a modular system enabling you to develop your own product ideas. Development of graphic interfaces can be started immediately using the prepared combination of closed display unit and starter kit that are matched to each other. To develop your own hardware you can use the certified and qualified circuit components of the starter kit in your own designs.

Other configurations on request
