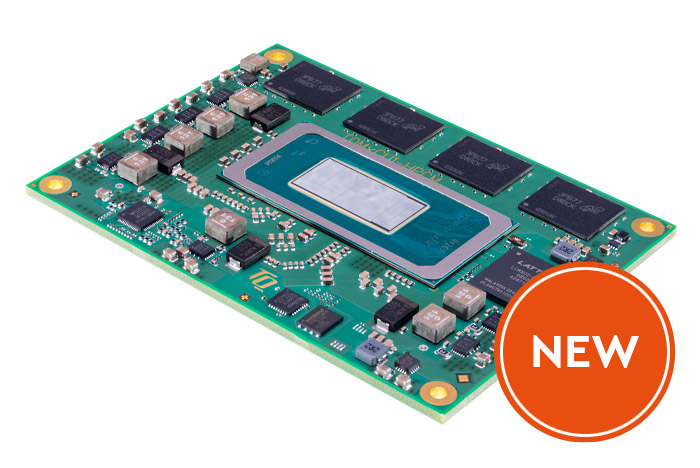

TQMxCU1-HPCM COM-HPC® Embedded Module

COM-HPC® Mini Module with Intel® Core™ Ultra Processors (Series 1)

The COM-HPC Mini Module TQMxCU1-HPCM equipped with Intel Core Ultra processors offers impressive performance data in the field of AI and graphics for the edge. Traditional use cases in industry, healthcare, communication and security thus can be extended and benefit from the latest technology: Several different compute engines work together to accelerate inference tasks directly on site, for example, while reducing the need for a discrete accelerator. The latest manufacturing technology ensures particularly good power efficiency, enabling simplified cooling solutions and fanless designs. The feature set of the processors can be optimally made available via the 400-pin high-speed connector of the COM-HPC Mini standard. In combination with the extremely compact dimensions of just 95 mm x 70 mm, innovative solutions can be implemented in the smallest of spaces. The soldered LPDDR5 memory on the top significantly simplifies thermal integration into systems, as all critical components can be optimally connected and heat build-up between components is avoided.



Features

TQMxCU1-HPCM - New
  • Codename: Meteor Lake U/H
  • Intel® Core™ Ultra 7 and Intel® Core™ Ultra 5 with 15 W / 28 W TDP
  • New Chiplet-Technology for optimized high-speed interconnect and improved power eficiency
  • Up to 14 CPU Cores based on Intel® Hybrid-Technology with various combinations of Performance-Cores and Efficient-Cores
  • Deliver stunning graphics and AI-focused performance
  • High-bandwidth extandability through up to 16 PCIe Gen4/5 lanes
  • High-speed peripheral and network interfaces with USB 3.2 Gen2 (10 Gb/s) and 2x 2.5 Gigabit Ethernet
  • USB 4 / USB-C support
  • COM-HPC® Mini formfactor for extremely compact integration





Specifications

CPU

CPU/Processor:

  • Intel® Core™ Ultra 7 Processor 165H (6P+8E, up to 5 GHz / 128 EU / 24 MB / 28W)
  • Intel® Core™ Ultra 7 Processor 155H (6P+8E, up to 4.8 GHz / 128 EU / 24 MB / 28 W)
  • Intel® Core™ Ultra 5 Processor 135H (4P+8E, up to 4.6 GHz / 128 EU / 18 MB / 28 W
  • Intel® Core™ Ultra 5 Processor 125H (4P+8E, up to 4.5 GHz / 112 EU / 18 MB / 28 W)
  • Intel® Core™ Ultra 7 Processor 165U (2P+8E, up to 4.9 GHz / 64 EU / 12 MB / 15W)
  • Intel® Core™ Ultra 7 Processor 155U (2P+8E, up to 4.8 GHz / 64 EU / 12 MB / 15 W)
  • Intel® Core™ Ultra 5 Processor 135U (2P+8E, up to 4.4 GHz / 64 EU / 12 MB / 15 W)
  • Intel® Core™ Ultra 5 Processor 125U (2P+8E, up to 4.3 GHz / 64 EU / 12 MB / 15 W)
Memory

LPDDR5x:

  • 16 / 32 / 64 GB, Dual Channel

EEPROM:

  • 32kbit
Graphics

Display:

  • 1x eDP 1.4b (4K @ 60 Hz)
  • 2x DDI (DP 1.4b / HDMI 2.1) (up to 2x8K)
Communications Interfaces

Ethernet:

  • 2x 2.5 Gigabit Ethernet (Intel i226)

USB:

  • 4x USB 3.2 Gen2 (up to 10 Gb/s)
  • 8x USB 2.0
  • USB 4 / USB-C Support

SATA:

  • 2x SATA Gen3 (up to 6 Gb/s) (multiplexed with PCIe)
Other Interfaces

PCIe:

  • Four PCIe groups with up to 16 PCIe lanes: PCIe x4, PCIe x4, PCIe x1/x1/x1/x1 or x2/x2 or x4, PCIe x1/x1/x1/(x1)

SPI:

  • 1x eSPI
  • 1x SPI (for external UEFI BIOS flash)

I2C:

  • 2x I2C

SMBus:

  • 1x SMBus

UART:

  • 2x Serial port

GPIO:

  • 12x GPIO
General

Dimensions:

  • 95 mm x 70 mm

Plug-in System:

  • COM-HPC Mini

Temperature range:

  • Standard temperature: 0°C - +60°C

Power supply:

  • Main Voltage: 12 V (8 - 20 V) / RTC Battery Voltage: 3 V

Power consumption:

  • typ. 10 - 35 W / max. 78 W (preliminary)
OS

OS Support:

  • Windows 10 / Windows 10 IoT Enterprise 2021 LTSC
  • Windows 11
  • Linux





Ordering Information

TQMxCU1-HPCM-AA

Intel® Core™ Ultra 7 165H (6P+8E, 8Xe, 24 MB, 28 W TDP), 32 GB LPDDR5, TPM 2.0, C-Temp
with additional appendix -D: default UEFI: PCIe x1/x1/x1/x1 | x4 | x4 | x4 - SS-Lane-Config1 (supports 2x DDI; no USB4)
with additional appendix -U: default UEFI: PCIe x1/x1/x1/x1 | x4 | x4 | x4 - SS-Lane-Config2 (supports 1x DDI + 1x USB4)

TQMxCU1-HPCM-AB (standard)

Intel® Core™ Ultra 7 155H (6P+8E, 8Xe, 24 MB, 28 W TDP), 32 GB LPDDR5, TPM 2.0, C-Temp
with additional appendix -D: default UEFI: PCIe x1/x1/x1/x1 | x4 | x4 | x4 - SS-Lane-Config1 (supports 2x DDI; no USB4)
with additional appendix -U: default UEFI: PCIe x1/x1/x1/x1 | x4 | x4 | x4 - SS-Lane-Config2 (supports 1x DDI + 1x USB4)

TQMxCU1-HPCM-AC

Intel® Core™ Ultra 5 135H (4P+8E, 8Xe, 18 MB, 28 W TDP), 32 GB LPDDR5, TPM 2.0, C-Temp
with additional appendix -D: default UEFI: PCIe x1/x1/x1/x1 | x4 | x4 | x4 - SS-Lane-Config1 (supports 2x DDI; no USB4)
with additional appendix -U: default UEFI: PCIe x1/x1/x1/x1 | x4 | x4 | x4 - SS-Lane-Config2 (supports 1x DDI + 1x USB4)

TQMxCU1-HPCM-AD (standard)

Intel® Core™ Ultra 5 125H (4P+8E, 7Xe, 18 MB, 28 W TDP), 16 GB LPDDR5, TPM 2.0, C-Temp
with additional appendix -D: default UEFI: PCIe x1/x1/x1/x1 | x4 | x4 | x4 - SS-Lane-Config1 (supports 2x DDI; no USB4)
with additional appendix -U: default UEFI: PCIe x1/x1/x1/x1 | x4 | x4 | x4 - SS-Lane-Config2 (supports 1x DDI + 1x USB4)

TQMxCU1-HPCM-AE

Intel® Core™ Ultra 7 165U (2P+8E, 4Xe, 12 MB, 15 W TDP), 32 GB LPDDR5, TPM 2.0, C-Temp
with additional appendix -D: default UEFI: PCIe x1/x1/x1/- | x4 | x4 | x4 - SS-Lane-Config1 (supports 2x DDI; no USB4)
with additional appendix -U: default UEFI: PCIe x1/x1/x1/- | x4 | x4 | x4 - SS-Lane-Config2 (supports 1x DDI + 1x USB4)

TQMxCU1-HPCM-AF (standard)

Intel® Core™ Ultra 7 155U (2P+8E, 4Xe, 12 MB, 15 W TDP), 16 GB LPDDR5, TPM 2.0, C-Temp
with additional appendix -D: default UEFI: PCIe x1/x1/x1/- | x4 | x4 | x4 - SS-Lane-Config1 (supports 2x DDI; no USB4)
with additional appendix -U: default UEFI: PCIe x1/x1/x1/- | x4 | x4 | x4 - SS-Lane-Config2 (supports 1x DDI + 1x USB4)

TQMxCU1-HPCM-AG

Intel® Core™ Ultra 5, 135U (2P+8E, 4Xe, 12 MB, 15 W TDP), 32 GB LPDDR5, TPM 2.0, C-Temp
with additional appendix -D: default UEFI: PCIe x1/x1/x1/- | x4 | x4 | x4 - SS-Lane-Config1 (supports 2x DDI; no USB4)
with additional appendix -U: default UEFI: PCIe x1/x1/x1/- | x4 | x4 | x4 - SS-Lane-Config2 (supports 1x DDI + 1x USB4)

TQMxCU1-HPCM-AH (standard)

Intel® Core™ Ultra 5 125U (2P+8E, 4Xe, 12 MB, 15 W TDP), 16 GB LPDDR5, TPM 2.0, C-Temp
with additional appendix -D: default UEFI: PCIe x1/x1/x1/- | x4 | x4 | x4 - SS-Lane-Config1 (supports 2x DDI; no USB4)
with additional appendix -U: default UEFI: PCIe x1/x1/x1/- | x4 | x4 | x4 - SS-Lane-Config2 (supports 1x DDI + 1x USB4)

TQMxCUx-HPCM-HSP-AA (Accessory)

Heatspreader for TQMxCU1-HPCM module according to PICMG standard

TQMxCUx-HPCM-KK-AA (Accessory)

Active cooling solution for TQMxCU1-HPCM module (incl. 12V fan)

MB-COMHPCM-1-AA

Carrierboard for evaluation of COM-HPC Mini module TQMxCU1-HPCM with SS-Lane-Config2 (1x DDI, 1x USB4), Size: Mini ITX (no accessories included)

MB-COMHPCM-1-AB

Carrierboard for evaluation of COM-HPC Mini module TQMxCU1-HPCM with SS-Lane-Config1 (2x DDI, no USB4), Size: Mini ITX (no accessories included)

STKXCU1-HPCM-xxx

Starterkit for evaluation of COM-HPC Mini module TQMxCU1-HPCM (incl. carrierboard, cpu module, cooling, accessories).
Please get in contact with us to define module configuration

Other configurations available
