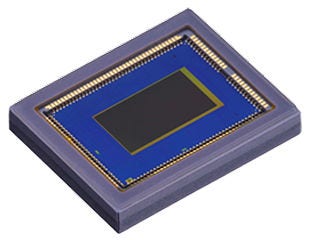

Canon LI7050SA 2M CMOS Sensor
- Canon LI7050SA Side
Take Your High-End Surveillance Project To New Heights with the LI7050SA
The Canon LI7050SA CMOS Sensor offers 2M pixel HDR with high sensitivity at an affordable price. It’s square 4.1μm x 4.1μm pixel arrangement and 1/1.8″ frame achieves very high and low light capability in a compact design. Discover how you can take your surveillance project to new heights with the LI7050SA from Canon.
A Top-of-the-Line CMOS Sensor
With rolling shutter and a sensor size of 7.9 x 4.5 mm, the Canon LI7050SA is a top-of-the-line CMOS Sensor. It offers a dynamic range of 120 dB and a maximum frame rate of 60 fps, creating flexibility and performance. It is available with an RGB filter type and has a sensitivity of 54,000 e/lx/sec, making it ideal for a number of applications.
Technical Specifications
| Resolution | 2.12 MP |
|---|---|
| Pixel count | 1,936 x 1,096 |
| Pixel pitch | 4.1 μm |
| Sensor Size | 7.9 x 4.5 mm |
| Shutter Type | Rolling |
| Dark Random Noise | 1.1 e-rms @room temperature |
| Frame rate | 60 fps, 30fps (HDR) |
| Color filter options | RGB |
| Sensitivity | 54,000 [e/lx/sec] (Green) |
