Canon LI7080SA Super 35mm 4K Sensor

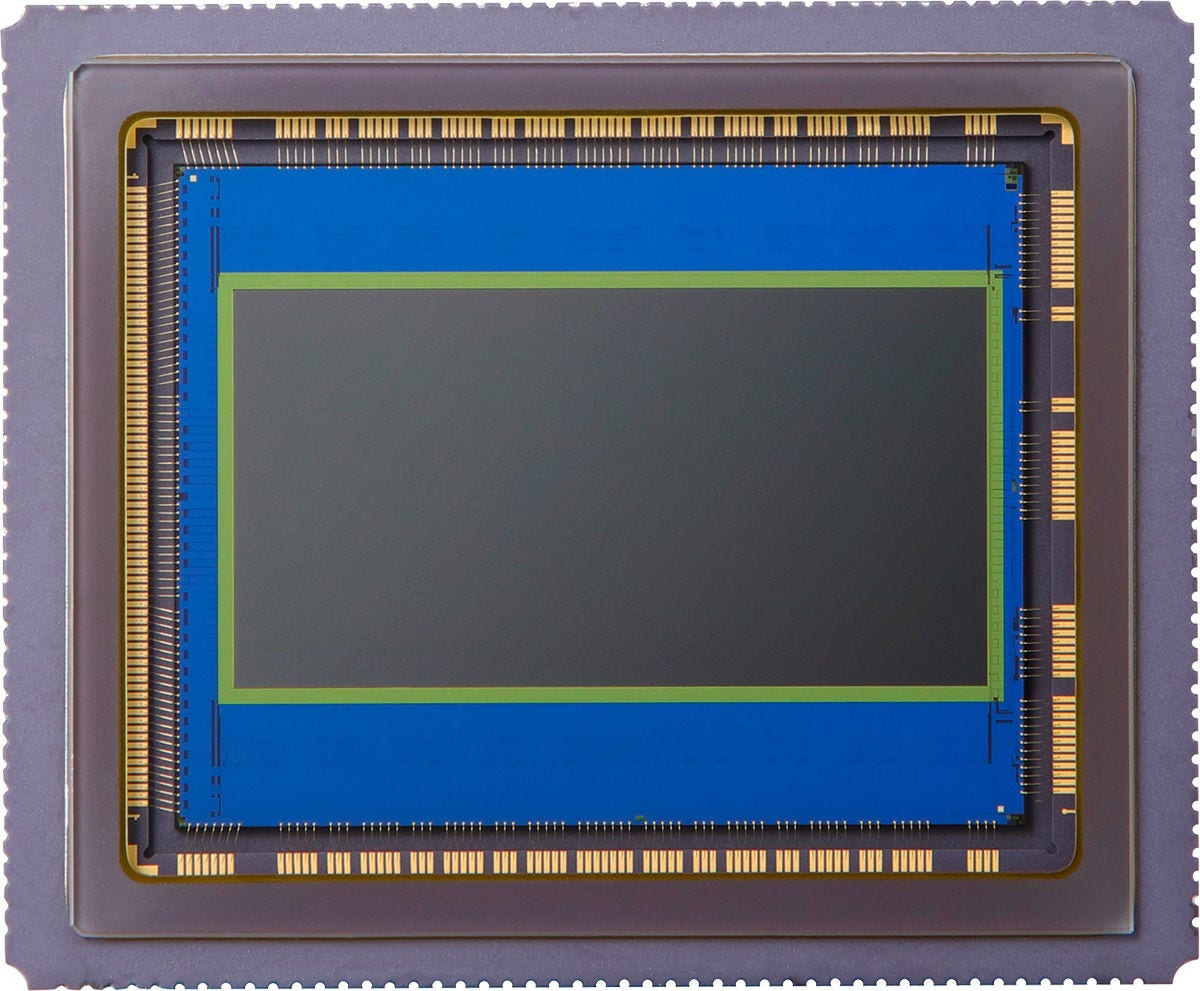

- Canon LI7080SA Front
Canon LI7080SA CMOS Sensor
Utilizing high-speed signal readout technology, the super 35mm format Canon LI7080SA CMOS sensor boasts 4.5K resolution at 120 frames per second. With a 6.4 μm x 6.4 μm pixel size and rolling shutter technology, the LI7080SA provides professional-grade imaging that delivers performance suitable for high-end security and cinema cameras.
Technical Specifications
| Filter Type | RGB (RGB on-chip color filter) |
|---|---|
| Recording screen size: | Greater than Super 35mm (29.0 mm x 15.4 mm) |
| Number of effective pixels: | 4536 x 2400 (Horizontal x Vertical) |
| Pixel size: | 6.4 μm x 6.4 μm |
| Number of output channels: | Data 30 lanes, Clock 2 lanes |
| Output format: | LVDS output, 840 Mbps @14bit |
| Main clock frequency: | 60 MHz (recommended) |
| All pixel readout: | 120 fps |
| Analog gain: | -6dB, 0dB, 6dB, 12dB, 18dB and 24dB |
| Saturation: | 82,000 e (Typ.) @120fps |
| Sensitivity: | 85,000 e/lx/sec (Typ.) |
| Dark Random Noise: | 2.2 e-rms @18dB |
| Dark Current: | 33 e/sec (Typ.) @60°C (package reverse side), 18dB |
| Power consumption: | 2.3 W (Typ.) @120fps |
| Power supply voltage: | 3.5V, 3.3 V, 1.8V, -1.2V, 2.62V, 2.5V, 1.6V |
