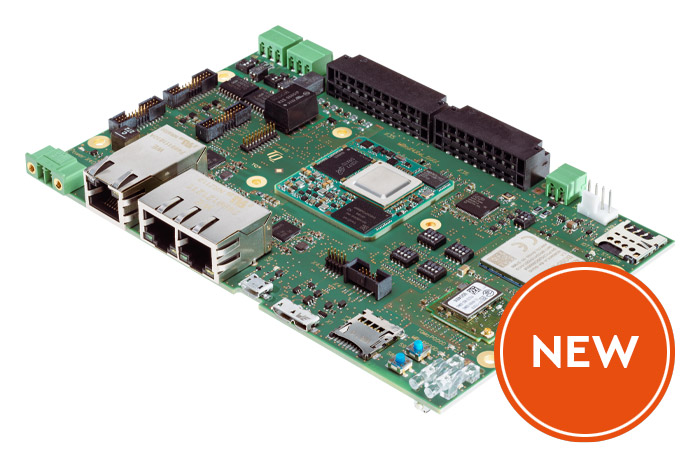

Starterkit STKa64xxL
Evaluation kit based on TQMa64xxL
The evaluation kit STKa64xxL based on the embedded module TQMa64xxL offers the new processors of the AM64xx (Dual Cortex A53 / Quad Cortex R5F) family from Texas Instruments. The LGA (Land Grid Array) module is designed to use the pin-compatible processors on a module design, which can be assembled on the STKa64XxL. This starter kit is ideally suited for headless applications with extended real-time requirements. The CPUs offer with their integrated PRU (Programmable Realtime Unit) up to 4x Gigabit Ethernet interfaces with TSN support for the realization of realtime applications. Furthermore they provide various interfaces like USB2.0, CAN-FD, UART and so on.
Features

- Embedded Cortex®-A53 / R5F module based on TI AM64xx for headless applications with real-time demand
- 2x real-time GBit Ethernet for fieldbus
- 2x CAN - FD, Analog Frontend, Digital IN/OUT, WIFI, Mobile Network
- Highspeed communication via 1x Gibt Ethernet, 1x USB2.0 Host, 1x USB3.1, 1x SD-card, 1x SIM-card etc.
- Integrated security features
- Low power consumption (typ. 1-2W)
Ordering Information
STKa64xxL–AA | STKa64xxL (Eval Kit) with TQMa64xxL-AA, Dual Cortex®-A53/1 GHz, 2x Dual Cortex®-R5F/800 MHz, Cortex®-M4/400 MHz, 8 GB eMMC, 1 GB LPDDR4, 64 kB EEPROM, RTC, 1x USB 2.0 OTG, 2x ETH 10/100/1000 (PRU), 1x ETH 10/100/1000, 2x CAN FD, 1x Temperature sensor, GPIOs (4x 24V_IN, 4x 24V_OUT, 8x AI_IN), Reset-Button, SD-Card interface, Power Supply, 4 GB SD card, Cables |
STKa6442L-AC | Starter-Kit with: TQMa6442L-AC, Dual Cortex®-A53/1 GHz, 2x Dual Cortex®-R5F/800 MHz, Cortex®-M4/400 MHz, 1 GB SDRAM, 64 kB EEPROM, RTC, Fieldbus enabled Mainboard Features: 2x ETH 10/100/1000 (PRU), 1x ETH 10/100/1000, 1x USB 2.0 OTG, 2x CAN FD, 1x Temperature sensor, GPIOs (4x 24V_IN, 4x 24V_OUT, 4x AI_IN), Reset-Button, SD Card interface Accessory set containing: Power Supply, 4 GB SD card, Cables |
