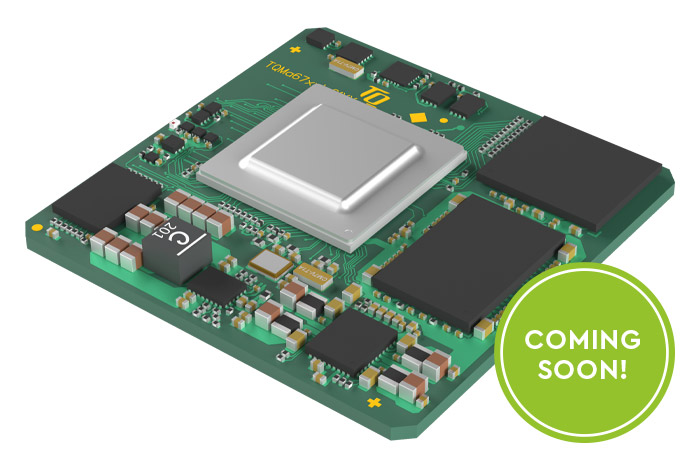

TQMa67xxL Embedded Cortex®-A53 module

Embedded Cortex®-A53 module based on the AM67xx MPU from TI. With AI, Vision ISP and 3D GPU.

The TQMa67xxL embedded module is based on the AM67xx (Quad /Dual Cortex A53) processor family from Texas Instruments. The TQMa67xxL is ideal for applications that require extended computing power and scalable graphics performance or artificial intelligence. The AM67xx family offers Artificial Intelligence, Vision ISP and a 3D GPU as well as a variety of industrial interfaces.



These include 2x Gigabit Ethernet switches with TSN support. They also have various interfaces such as USB2.0, CAN-FD, UART and 4x CSI for connecting up to 4 cameras. Multidisplay with up to 3 displays is possible and up to 2x SerDes for (PCIe/ USB + SGMII) round off this powerful CPU family.



Features

  • Quad / Dual Cortex A53 up to 1.4 GHz
  • 3x Display LVDS, DSI & RGB
  • Featuring AI, Vision ISP & 3D GPU
  • High-speed communication via 2x Gbit Ethernet switch (TSN), 4 x CAN FD, 2x USB 2.0,
  • Up to 2x SERDES (PCIe and USB shared with SGMII)
  • Integrated security functions
  • Low power consumption (3-5 Watt)
TQMa67xxL - Coming Soon

Specifications

CPU

CPU/Processor:

  • AM67x

CPU variant:

  • AM67Ax
  • AM67Dx
  • AM67x

Max. CPU frequency:

  • 1.4GHz
Memory

LPDDR4:

  • Up to 8 GB

NOR Flash:

  • Up to 256 MB (TBD)

eMMC:

  • Up to 128 GB

EEPROM:

  • 0/64-kbit
Graphics

Display:

  • 1x LVDS
  • 1x RGB (24 bit)
  • 1x DSI

Graphic interface:

  • 3D GPU (8G FLOPFS)

Camera interface:

  • 1x CSI (Rx 4x4L, Tx 1x4L)
Communications Interfaces

Ethernet:

  • Up to 2x Gbit-Ethernet switch (TSN)

USB:

  • Up to 2x USB 2.0 interface

CAN:

  • Up to 4x CAN FD
Other Interfaces

PCIe:

  • Up to 2x SerDes shared with PCIe, USB 3.0 or SGMII

SD Card:

  • Up to 2x SDIO

I2C:

  • Up to 6x I2C

SPI:

  • Up to 5x SPI
  • Up to 1x OSPI

GPMC:

  • Up to 1x GPMC

PWM:

  • Up to 3x PWM

Audio:

  • 5x McASP

UART:

  • Up to 9x UART
General

Dimensions:

  • 44 mm x 44 mm

Temperature range:

  • Standard temperature range: -25°C - +85°C
  • Extended temperature: -40°C - +85°C

Power supply:

  • 3.3V

Power consumption:

  • 3 -5 Watt

Plug-in System:

  • LGA (Land Grid Array) 404 pins
OS

OS Support:

  • Linux
  • Others on request
